LOWFLOW控制閥708SP系列技術參數
Sizes: | 1/4", 1/2", 3/4" (DN8, DN15, DN20) |
End Connections | ? Threaded – NPT, BSPT, BSPP |
Actuator | ? 1/4" (DN8) – standard: 14M (14 in 2 ) multi-spring |
Diaphragm Material | ? 14M – rolling (Nylon/Nitrile) |
Body/Bonnet Materials | ? Carbon Steel |
Trim Materials | ? Cv's 0.05 (0,04 Kv) and above: 17-4 plug, 316SS stem/seat |
Optional Trim Materials | ? 316SS Stem, 17-4 plug, 416SS seat |
Actuator Materials | ? Aluminum – 14M |
Stem Packing | ? Standard: spring-loaded TFE/Chevron (to 450°F/232°C) |
Body/Bonnet Gasket: | RPTFE or Grafoil (matches packing mate-rial unless specified) |
Service: | steam, air, gas, oil, water, chemicals |
Shutoff | ? Standard – Cv's 0.05 and greater: ANSI Class IV; Cv's 0.02 and lower: ANSI Class VI |
Ranges: | 3-15 or 6-30 psi (0,21-1,0 or 0,4-2,1 bar) split ranges are available with optional positioner |
Action | ? Direct (air signal closes valve) |
Flow Characteristic: | linear (all Cv's), equal percentage (Cv >/= 0.05/0,43 Kv only); or quick opening (Cv >/= 0.05/0,43 Kv only) |

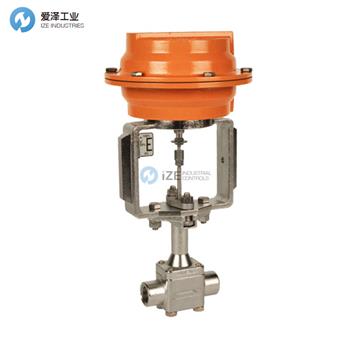

LOWFLOW控制閥708系列介紹
Mark 708的開發是為了提供部分流量服務最準確的控制：無論是工廠安裝，試驗臺，研發設施還是用于定量，注射和排放應用等專門工藝。Cv的范圍從0.00001到4.0，可提供1/4“至3/4”線徑（0,000009至3,4 Kv，尺寸DN8至DN20），Mark 708提供了提供增強性能以確保精度的設計功能控制最關鍵的微流量應用。
The Mark 708 was developed to provide the most accurate control available for fractional flow services: whether for pilot plant installations, test stands, R & D facilities or for specialized processes such as dosing, injection and venting applications. With Cv’s ranging from 0.00001 to 4.0 available in 1/4″ through 3/4″ line sizes (0,000009 to 3,4 Kv in sizes DN8 through DN20), the Mark 708 offers design features that will provide enhanced performance to insure precision control on your most critical micro-flow applications.

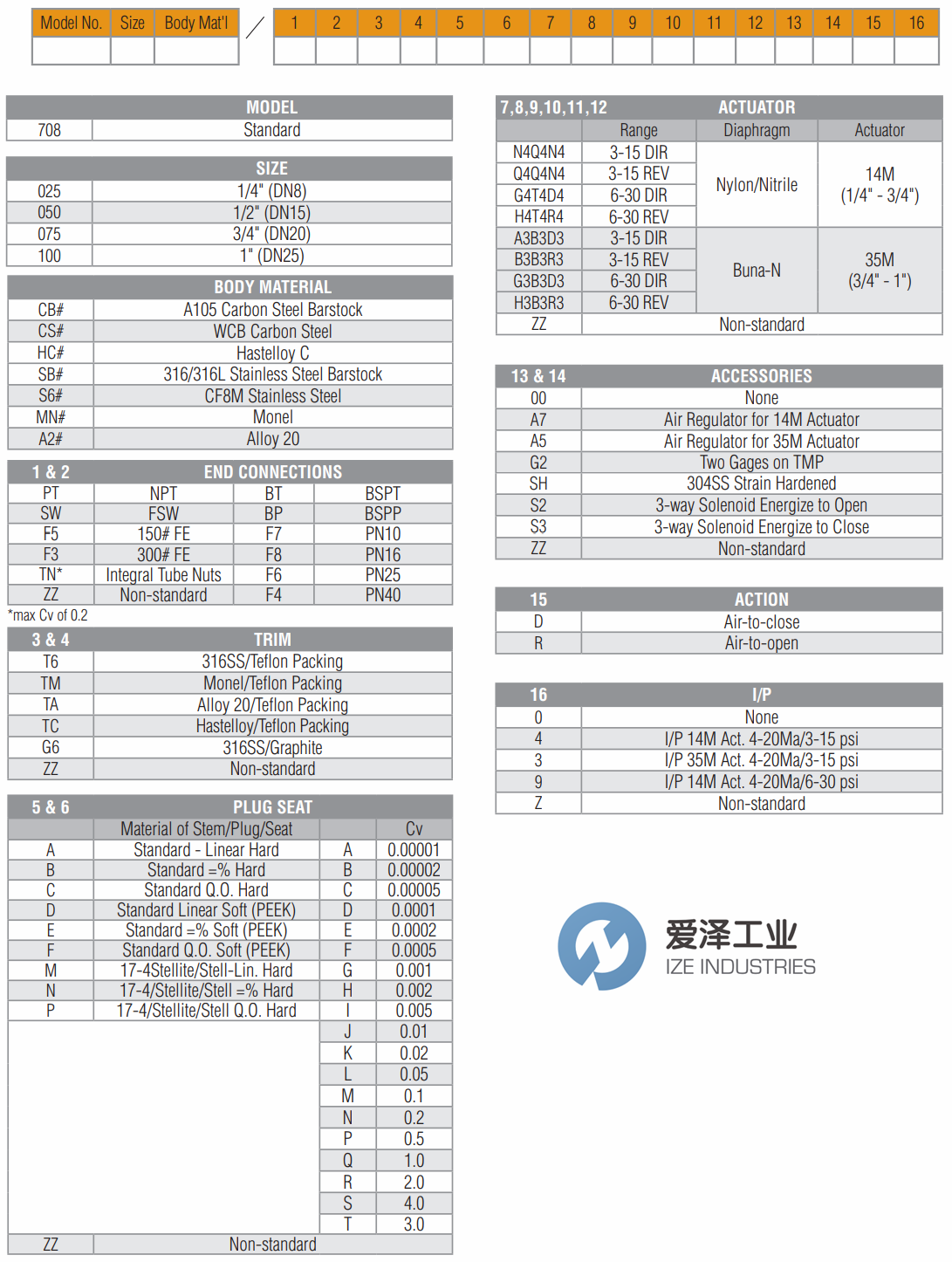

LOWFLOW控制閥708系列選型
LOWFLOW控制閥708系列其他常見型號：
LOWFLOW 708 3001561A
LOWFLOW 708 3007079A
LOWFLOW 708 3001920A
LOWFLOW 708 3006892A
LOWFLOW 708 3005261B
LOWFLOW 708 10593650
LOWFLOW 708 3009974A
LOWFLOW 708 3002171A
LOWFLOW 708 3007966B
LOWFLOW 708 1059938A
LOWFLOW 708 3001408C
LOWFLOW Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
