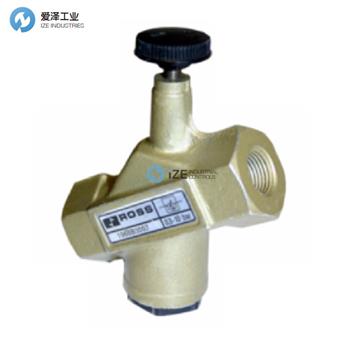

ROSS控制閥1968B9007技術參數
Valve Type | Flow Control Valve |
Series | 19 |
Actuation | Pneumatic |
Function | 2/2 |
Thread Type | NPT |
Construction | Poppet |
Mounting | Inline |
Fluid Media | Filtered Air |
Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
Valve Body Material | Cast Aluminum |
Application | High Capacity |
Ambient Temperature | -40 to 175 F (-40 to 80 C) |
Media Temperature | -40 to 175 F (-40 to 80 C) |
Adjustment | Knob |
Profile | Offset |
Size | 2" |
Length | 6.80 in (173 mm) |
Width | 3.12 in (79 mm) |
Height | 9.58 in (243 mm) |
Inlet Pipe Size | 2" |
Outlet Pipe Size | 2" |
Weight | 4.3 lb (1.9 kg) |
Avg Cv | 50 |
ROSS控制閥19系列產品介紹
? 提供薄型、高容量和直角系列
? 可提供 NPT 和 BSPP 端口螺紋
? 薄型系列包括插槽和旋鈕調節選項
? 高容量系列包括直列和偏置方向選項
? 直角系列包括插槽和旋鈕調節選項
? Low profile, high capacity & right angle series available
? Available with NPT & BSPP port threads
? Low profile series includes slot & knob adjustment options
? High capacity series includes inline & offset orientation options
? Right angle series includes slot & knob adjustment options
ROSS控制閥19系列其他常用型號:
ROSS 1968B9007
ROSS D1968B9007
ROSS FLOW CONTROL VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS控制閥1968B9007的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ROSS控制閥1968B9007技術參數及介紹
