MAGNATROL電磁閥14L42規格描述
Specification | |
Pipe Size Inches | 1/2 |
Max.Diff. PSI | 110 |
Watts AC | 25 |
Amps Hold 120-60 | 0.4 |
Amps Inrush 120-60 | 1.2 |
Watts DC | 18 |
Ship Wt. Lbs | 8 |
MAGNATROL電磁閥L系列產品介紹
流體溫度:-350°F至400°F | 最大靜壓 - 300 PSI
控制熱液,熱氣,低溫**和任何其他不與建筑材料反應且無沉淀物的流體的流動。低溫流體包括液氧(-297°F),液氬(-303°F)和液氮(-320°F)。該電磁閥從零到最大壓差運行,如表所示。閥門必須安裝在水平管道中,電磁閥外殼垂直放置在頂部。
Fluid Temp: -350°F to 400°F | Max. Static Pressure - 300 PSI
To control the flow of Hot Liquids, Hot Gases, Cryogenics** and any other fluids not reactive with construction materials and free of sediment. Cryogenic fluids include Liquid Oxygen (-297°F), Liquid Argon (-303°F) and Liquid Nitrogen (-320°F). This solenoid valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.

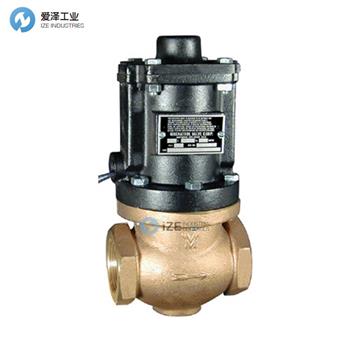

MAGNATROL電磁閥14L42
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件MAGNATROL 電磁閥部分型號:
MAGNATROL 14L42
MAGNATROL 14L32
MAGNATROL 29L52
MAGNATROL E29L62
MAGNATROL 14L23
MAGNATROL 14L43
MAGNATROL 29L33
MAGNATROL 129L53
MAGNATROL E129L63
MAGNATROL 16L24
MAGNATROL 16L44
MAGNATROL 31L34
MAGNATROL 131L54
MAGNATROL E131L64
MAGNATROL 17L25
MAGNATROL 17L45
MAGNATROL 32L35
MAGNATROL 132L55
MAGNATROL 140L65
MAGNATROL 35L26
MAGNATROL 35L46
MAGNATROL 41L36
MAGNATROL 141L56
MAGNATROL 141L66
MAGNATROL 36L27
MAGNATROL 36L47
MAGNATROL 42L37
MAGNATROL 42L57
MAGNATROL 142L67
MAGNATROL 43L28
MAGNATROL 43L48
MAGNATROL 43L38
MAGNATROL 143L58
MAGNATROL 44L29
MAGNATROL 44L49
MAGNATROL 44L39
MAGNATROL 144L59
MAGNATROL Bronze Solenoid Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAGNATROL電磁閥14L42的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for MAGNATROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

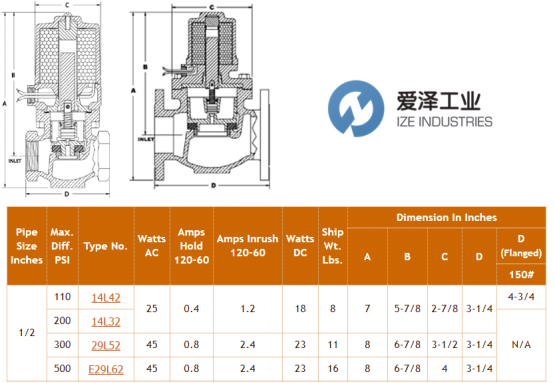

MAGNATROL電磁閥L系列14L42產品參數
