MAGNATROL電磁閥L系列技術參數
Specifications |
| |
Pipe Size | 1/2 Inch | |
Pipe Size Range | 1/2 - 3 Inch | |
Maximum Differential Pressure | 200 psi | |
Max. Static Pressure | 300 psi | |
For Fluid(s) | Hot Liquids, Hot Gases, Cryogenics | |
Max. Fluid Temperature | 400 ° F | |
Watts AC | 25 | |
Watts DC | 18 | |
Amps Hold (120-60) | 0.4 | |
Amps Inrush (120-60) | 1.2 | |

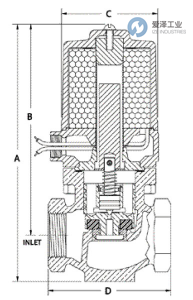

Dimension A | 7 Inch | |
Dimension B | 5 7/8 Inch | |
Dimension C | 2 7/8 Inch | |
Dimension D | 3 1/4 Inch | |
Shipping Weight | 8 lbs |

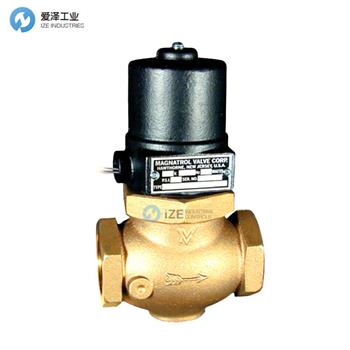

MAGNATROL電磁閥L系列介紹
Magnatrol 電磁閥用于控制液體或氣體的流動，通常與自動控制裝置（如恒溫器、浮子開關、定時開關或流量計）配合使用。
? 2 通直通設計
? 帶內螺紋的青銅閥體
? 全端口內部先導操作或直接作用
? 無填料結構
? 適用于所有電壓的連續工作線圈
? 無需壓差即可打開
外殼
由可鍛鑄鐵制成，專為堅固的工業用途而設計，可保護線圈免受意外損壞。所有電磁閥外殼均配有獨立的接線盒，帶有 1/2 英寸螺紋導管連接，可轉向各個方向以方便接線。
線圈
線圈具有“A”級或“H”級絕緣，設計用于連續工作。
活塞組件
堅固的閥桿組件，由層壓柱塞和不銹鋼先導組成，靈活地連接到青銅活塞。閥盤為標準尺寸，材料由操作條件決定。
閥蓋
法蘭金屬管包圍柱塞，并密封閥門頂部。
閥體
由高壓鑄造青銅制成，球形，兩端帶螺紋。有各種尺寸可供選擇。
Magnatrol Solenoid operated valves are used to control the flow of liquids or gases, generally in conjunction with automatic control apparatus such as thermostat, float switch, time switch or flow meter.
? 2-way straight thru design
? Bronze body with female threads
? Full port-internal pilot operated or direct acting
? Packless construction
? Continuous duty coils for all voltages
? No differential pressure required to open
Housing
Made of malleable iron, designed for rugged industrial use, protects the coil from accidental damage. All solenoid housings feature a self-contained terminal box with 1/2 inch tapped conduit connection which may be turned in various directions for convenient wiring.
Coils
Coils are available with class "A" or "H" insulation and are designed for continuous duty.
Piston assembly
A sturdily constructed stem assembly consisting of a laminated plunger and stainless steel pilot flexibly connected to the bronze piston. The discs are of standard sizes with material as dictated by operating conditions.
Bonnet
A flanged metallic tube encloses the plunger and hermetically seals the top of the valve.
Valve Body
Constructed of high pressure cast bronze in a globe pattern with screwed ends. Available in a full range of sizes.
MAGNATROL電磁閥L系列其他常用型號：
MAGNATROL 14L42
MAGNATROL 14L32
MAGNATROL 29L52
MAGNATROL E29L62
MAGNATROL 14L23
MAGNATROL 14L43
MAGNATROL 29L33
MAGNATROL 129L53
MAGNATROL E129L63
MAGNATROL 16L24
MAGNATROL 16L44
MAGNATROL 31L34
MAGNATROL 131L54
MAGNATROL E131L64
MAGNATROL 17L25
MAGNATROL 17L45
MAGNATROL 32L35
MAGNATROL 132L55
MAGNATROL G14L32SC-ACTZCZ
MAGNATROL G31L34SC-ACTZCZ
