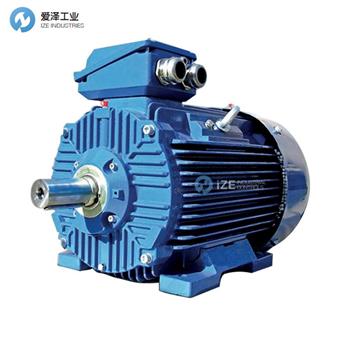

CANTONI電機3SIEK132S4技術參數
ELECTRICAL PARAMETERS | |
Rated voltage [V] | 400/690 |
Winding connection | ?/Y |
Frequency [Hz] | 50 |
Rated output [kW] | 5.5 |
Rated output [HP] | 7.5 |
Service factor [-] | 1.0 |
Duty | S1 |
Rated current [A] | 10.4/6.0 |
Synchronous speed [rpm] | 1500 |
Rated speed [rpm] | 1465 |
Rated torque [Nm] | 35.9 |
Starting torque ratio [-] | 2.5 |
Breakdown torque ratio [-] | 3.4 |
Starting current ratio [-] | 8.5 |
Efficiency at 1/4 of full load [%] | - |
Efficiency at 2/4 of full load [%] | 88.6 |
Efficiency at 3/4 of full load [%] | 89.8 |
Efficiency at rated (full) load [%] | 89.6 |
Efficiency at 5/4 of full load [%] | - |
Power factor at 1/4 of full load [-] | - |
Power factor at 2/4 of full load [-] | 0.68 |
Power factor at 3/4 of full load [-] | 0.78 |
Power factor at rated (full) load [-] | 0.85 |
Power factor at 5/4 of full load [-] | - |

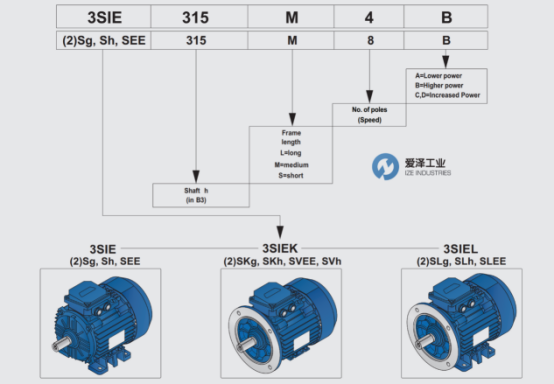

CANTONI電機IE3系列介紹及選型
One speed general purpose motors with Premium Efficiency IE3 according to IEC60034-30-1 standard and Commission Regulation (CE) No 640/2009, 4/2014 requirements
符合IEC60034-30-1標準和委員會法規 (CE) No 640/2009, 4/2014要求的具有高效率IE3的單速通用電機
CANTONI電機IE3系列其他常用型號：
CANTONI 3SIE132M2
CANTONI 3SIE132M2A
CANTONI 3SIE132M4
CANTONI 3SIE132M4A
CANTONI 3SIE132M4B
CANTONI 3SIE132M6A
CANTONI 3SIE132M6B
CANTONI 3SIE132S2A
CANTONI 3SIE132S2B
CANTONI 3SIE132S4
CANTONI 3SIE132S6
CANTONI MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CANTONI電機3SIEK132S4的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for CANTONI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CANTONI電機3SIEK132S4參數介紹
