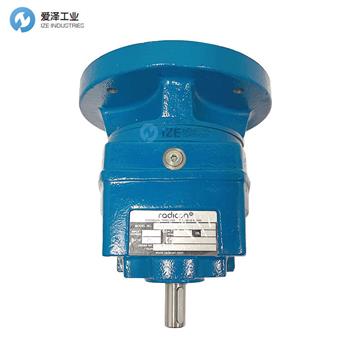

RADICON減速機M01225.0BGCC1技術參數
Codes | M01225.0BGCC1 |
Series | Range M |
Size of Unit | 01 |
No of Reductions | 2 |
Revision Version | 2 For Sizes 01 to 08 |
Nominal Overall Ratio | 5 |
Unit Version | B - Base Mounted B5 (D) Flange Mounted |
Type of Unit | G - Unit to allow ftting of IEC motor (customer own motor) |
Output Shaft | C - Standard |
RADICON減速機M系列介紹
M 系列減速電機系列滿足大多數高達 160KW 的驅動要求,最大輸出扭矩為 20000 Nm。
它利用多年積累的設計專業知識以及使用優質材料和組件開發而成。
最終結果是一系列具有高承載能力、高效率、安靜運行和可靠性的減速和齒輪電機。這些裝置由一系列模塊化套件制造和組裝而成,便于分銷商使用,從而最大限度地減少庫存并使產品隨時可用。
可作為法蘭或底腳安裝執行的雙倍、三倍、四倍和五倍減速裝置提供。提供機動化、電機就緒(接受客戶自己的 IEC/NEMA 電機)或帶鍵控輸入軸的減速器。
所有齒輪箱都是鑄鐵的。
The Series M geared motor range meets most drive requirements up to 160KW with a maximum output torque of 20000 Nm.
It takes advantage of being developed from many years of accumulated design expertise, together with the use of high quality materials and components.
The end result is a series of speed reducing and geared motors offering high load carrying capacity, high efficiency, quiet running and reliability. These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.

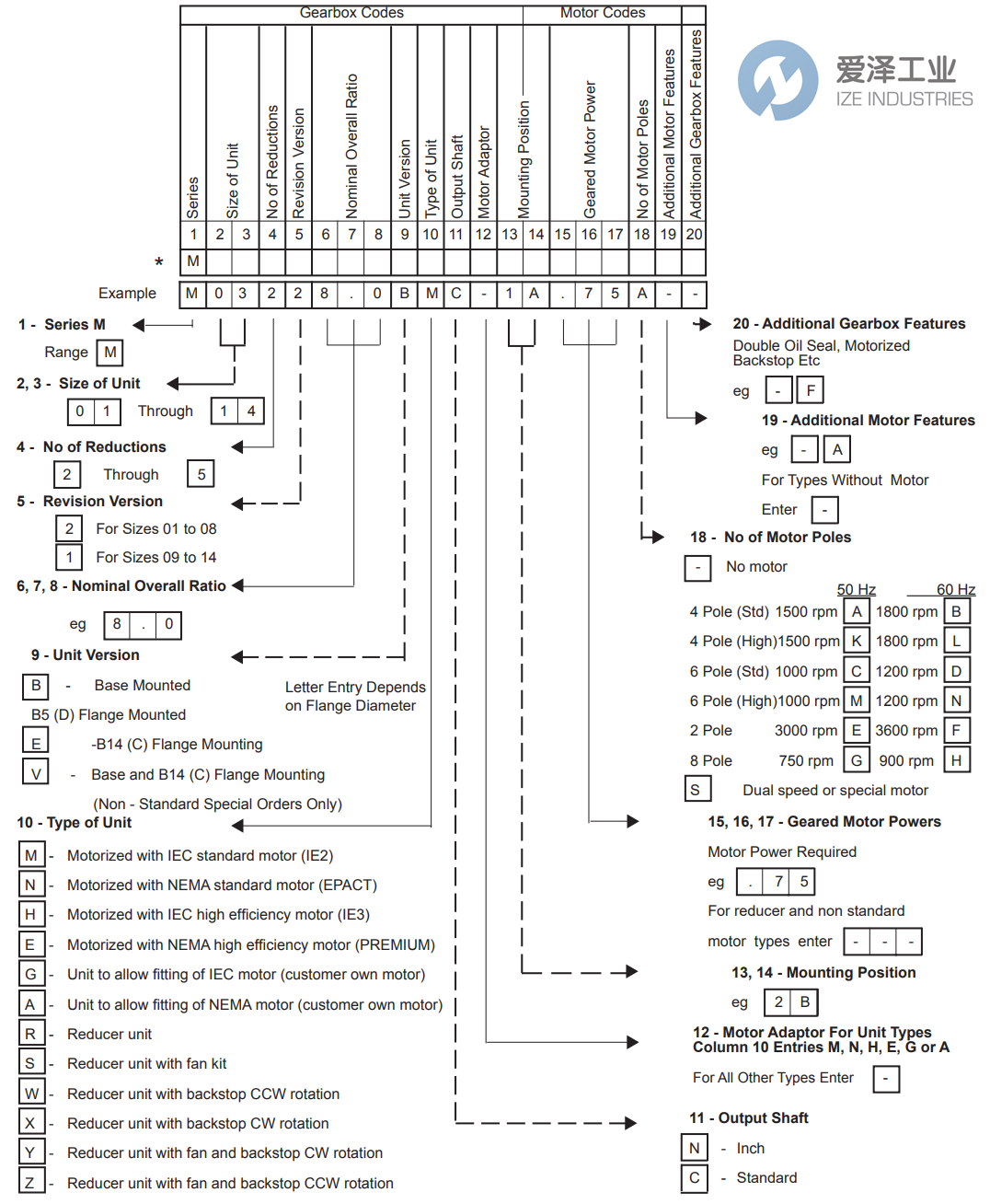

RADICON減速機M系列選型
RADICON減速機M系列其他常用型號:
RADICON M02225.0BGCC1D1.5A
RADICON M02225.0BGCC1
RADICON M01225.0BGCC1D15A
RADICON M01225.0BGCC1
RADICON M02225.OBMCC1D1.5A
