SUN閥CBCGLJN技術參數
Technical Data | |
Cavity | T-11A |
Series | 1 |
Capacity | 15 gpm |
Pilot Ratio | 4.5:1 |
Maximum Recommended Load Pressure at Maximum Setting | 3850 psi |
Maximum Setting | 5000 psi |
Pilot Configuration | Bleed through |
Factory Pressure Settings Established at | 2 in3/min. |
Maximum Valve Leakage at Reseat | 5 drops/min. |
Adjustment - No. of CCW Turns from Min. to Max. Setting | 3.75 |
Operating Characteristic | Standard |
Reseat | >85% of setting |
Valve Hex Size | 7/8 in. |
Valve Installation Torque | 30 - 35 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 0.35 lb. |
Seal kit - Cartridge | Buna: 990011007 |
Seal kit - Cartridge | EPDM: 990011014 |
Seal kit - Cartridge | Polyurethane: 990011002 |
Seal kit - Cartridge | Viton: 990011006 |

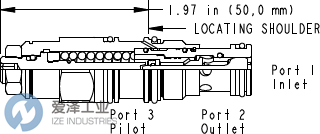

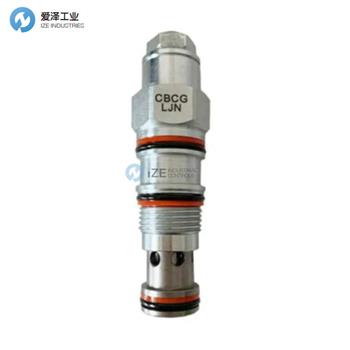

SUN閥CBCGLJN產品介紹
帶先導輔助裝置的平衡閥用于控制超負荷。止回閥允許從方向閥（端口 2）到負載（端口 1）的自由流動，而直接作用式先導輔助泄壓閥控制從端口 1 到端口 2 的流量。端口 3 處的先導輔助裝置以先導比確定的速率降低泄壓閥的有效設定值。
? 平衡閥的設定值應至少為最大負載誘導壓力的 1.3 倍。
? 順時針旋轉調節裝置以降低設定值并釋放負載。
? 順時針旋轉設定值小于 200 psi (14 bar)。
? 端口 2 處的背壓以 1 加上先導比乘以背壓的比率增加到有效泄壓設定值。
? 當閥門為標準設定時，復位超過設定壓力的 85%。低于標準設定壓力的設定可能導致復位百分比降低。
? Sun 平衡閥芯可以直接安裝到執行器外殼中加工的腔體中，以增加保護并提高回路的剛度。
? 提供兩種止回閥開啟壓力。除非擔心執行器氣蝕，否則請使用 25 psi (1.7 bar) 止回閥。
? 此閥在先導部分沒有正向密封，在端口 2 和端口 3 之間將以高達 3 in3/min.@1000 psi (45 ml/min.@70 bar) 的速度通過。這是主從電路和閥缸組件泄漏測試中的考慮因素。
? 配置有 EPDM 密封件的閥芯用于磷酸酯流體系統。接觸石油基流體、油脂和潤滑劑會損壞密封件。
? 所有 3 端口平衡閥、負載控制閥和先導開啟止回閥閥芯在物理上均可互換（即，對于給定的框架尺寸，流路相同、腔體相同）。
? 耐腐蝕筒式閥適用于腐蝕性環境，其型號代碼后綴為 /AP（外部不銹鋼組件）或 /LH（外部鍍鋅鎳組件）。
? 采用 Sun 浮動式結構，以最大限度地減少由于安裝扭矩過大和/或腔體/筒式加工變化而導致內部零件卡住的可能性。
Counterbalance valves with pilot assist are meant to control an overrunning load. The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the relief valve at a rate determined by the pilot ratio.
? Counterbalance valves should be set at least 1.3 times the maximum load induced pressure.
? Turn adjustment clockwise to decrease setting and release load.
? Full clockwise setting is less than 200 psi (14 bar).
? Backpressure at port 2 adds to the effective relief setting at a ratio of 1 plus the pilot ratio times the backpressure.
? Reseat exceeds 85% of set pressure when the valve is standard set. Settings lower than the standard set pressure may result in lower reseat percentages.
? Sun counterbalance cartridges can be installed directly into a cavity machined in an actuator housing for added protection and improved stiffness in the circuit.
? Two check valve cracking pressures are available. Use the 25 psi (1,7 bar) check unless actuator cavitation is a concern.
? This valve does not have positive seals on the pilot section and will pass up to 3 in3/min.@1000 psi (45 ml/min.@70 bar ) between port 2 and port 3. This is a consideration in master-slave circuits and in the leak testing of valve-cylinder assemblies.
? Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
? All 3-port counterbalance, load control, and pilot-to-open check cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size).
? Corrosion-resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components.
? Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
