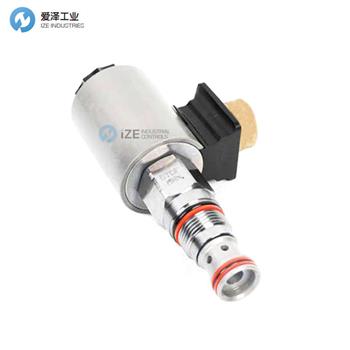

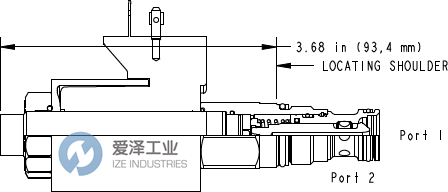

SUN閥DTDF-MCN224技術參數
Technical Data | |
Cavity | T-11A |
Series | 1 |
Capacity | 10 gpm |
Maximum Operating Pressure | 5000 psi |
Factory Pressure Settings Established at | blocked control port (dead headed) |
Control Pilot Flow | 7 - 10 in3/min. |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Valve Hex Size | 7/8 in. |
Valve Installation Torque | 30 - 35 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 0.33 lb. |
Seal kit - Cartridge | Buna: 990011007 |
Seal kit - Cartridge | EPDM: 990011014 |
Seal kit - Cartridge | Polyurethane: 990011002 |
Seal kit - Cartridge | Viton: 990011006 |
SUN閥DTDF-MCN224產品介紹
這款電磁操作的 2 通 2 位閥芯是一種直動式、閥瓣式方向閥。該閥有常開或常閉兩種配置，設計用于 740 和 747 系列線圈。
由于采用閥瓣式結構，該閥的泄漏極低。
? 電磁管組件的疲勞額定值為 5000 psi (350 bar)。
? 該閥是直接驅動的，無需低液壓即可運行。
? 使用常閉選項時，該閥適用于負載保持應用。如果發生電源故障，閥門將彈簧關閉。
? 配置有 EPDM 密封件的閥芯用于磷酸酯流體系統。接觸石油基流體、油脂和潤滑劑會損壞密封件。
? 該閥的所有配置都包括鋅鎳鍍層，作為 1000 小時鹽霧防護的標準配置。
? 線圈連接器選項提供高達 IP69K 的防護等級。
? 該閥芯同時使用 740 系列高功率線圈和 747 系列危險位置線圈。
? 該閥芯具有手動超控選項。
? 閥門的泄漏率極低；小于 10 滴/分鐘 @ 5000 psi（0.7 cc/分鐘 @ 350 bar）。
? 在配備 D 或 L 控制的型號上，手動超控中的制動機構用于臨時啟動。D、L 和 T 手動控制組件的機械壽命約為 7,000 次循環。
? 該閥采用濕式電樞設計。這意味著工作流體圍繞電樞并暴露在線圈產生的熱量中。如果線圈長時間通電，這可能是一個因素。某些流體，特別是水/乙二醇混合物，在這些溫度下會隨著時間的推移而分解，并形成會影響濾芯功能的清漆。
? 提供各種線圈端接和電壓選項，帶或不帶浪涌保護。
? 螺線管獨特的磁性設計可實現高效螺線管，每瓦特消耗產生高閥芯驅動力，從而實現可靠的閥門換向。
? 線圈可以以任意方向安裝在管上。
? 采用 Sun 浮動式結構，更大限度地減少由于安裝扭矩過大和/或腔體/濾芯加工變化而導致內部零件卡住的可能性。
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils.
Due to the poppet style construction, this valve has extremely low leakage.
? The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
? This valve is direct actuated and requires no minimum hydraulic pressure for operation.
? This valve is suitable for load holding applications when using the Normally Closed option. In the event of power failure, the valve will spring closed.
? Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
? All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
? Coil connector options offer ratings up to IP69K.
? This cartridge utilizes both 740 Series high-power and 747 Series hazardous location coils.
? This cartridge has an option for manual override.
? Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @ 350 bar).
? On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
? This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
? A wide variety of coil termination and voltage options are available, with and without surge protection.
? The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
? Coils can be mounted on the tube in either direction.
? Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
