SUN閥MWGALHN技術參數
Technical Data | |
Cavity | T-23A |
Series | 3 |
Capacity | 60 gpm |
Maximum Operating Pressure | 5000 psi |
Pilot Ratio | 3:1 |
Factory Pressure Settings Established at | 2 in3/min. |
Maximum Valve Leakage at Reseat | 5 drops/min. |
Check Cracking Pressure | 25 psi |
Adjustment - No. of CCW Turns from Min. to Max. Setting | 8.5 |
Reseat | ≥77% of setting |
Valve Hex Size | 1 1/4 in. |
Valve Installation Torque | 150 - 160 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Seal kit - Cartridge | Buna: 990023007 |
Seal kit - Cartridge | Polyurethane: 990023002 |
Seal kit - Cartridge | Viton: 990023006 |
Model Weight | 2.08 lb. |
SUN閥MWGALHN產品介紹
帶先導輔助裝置的通風式負載反應負載控制閥結合了兩個閥門：一個止回閥和一個溢流閥。止回閥允許從方向閥（端口 2）到負載（端口 1）的自由流動，而直接作用式先導輔助溢流閥則控制從端口 1 到端口 2 的流動。端口 3 處的先導輔助裝置以先導比確定的速率降低溢流閥的有效設定值。端口 2 處的背壓不會影響閥門設定值，因?yàn)閺椈汕粎⒖纪L(fēng)口（端口 4）。
? 設置為最大負載誘導壓力的至少 1.3 倍（當設置小于 2000 psi 或 140 bar 時，為 1.5 倍）。
? H 系列的最大建議負載壓力為 3080 psi (212 bar)。
? J 系列的最大建議負載壓力為 3850 psi (265 bar)。
? 順時針旋轉調節裝置可減少設定值并釋放負載。
? 對于 H 型范圍，順時針旋轉設置為 1000 psi (70 bar)，對于 J 型范圍，順時針旋轉設置為 2000 psi (140 bar)。
? 與純提升閥設計相比，這些閥門能夠調節更大范圍的流量。更長的行程使我們能夠安裝單向阻尼裝置，使閥門平穩開啟并快速關閉。
? 該閥在功能上是一種 4 通平衡閥。它作為提升閥安裝，作為滑閥調節，兼具兩種閥門類型的優點。
? 所有 4 端口平衡閥、負載控制閥和先導開啟止回閥芯在物理上均可互換（即，對于給定的框架尺寸，具有相同的流路、相同的腔體）。
? 耐腐蝕插裝閥適用于腐蝕性環境，其型號代碼后綴為 /AP（外部不銹鋼組件）或 /LH（外部鍍鋅鎳組件）。
? 太陽載荷控制和平衡筒可以直接安裝到執行器外殼內加工的腔體中，以增加保護并提高電路的剛度。
? 該閥門所有端口之間均有正密封。
? 該閥門具有完全泄壓能力。
? 采用 Sun 浮動式結構，最大限度地減少由于安裝扭矩過大和/或腔體/墨盒加工變化而導致內部零件卡住的可能性。

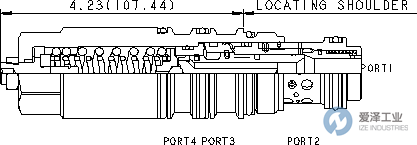

Vented, load reactive load control valves with pilot assist combine two valves; a check valve and a relief valve. The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the relief valve at a rate determined by the pilot ratio. Backpressure at port 2 does not affect the valve setting because the spring chamber references the vent (port 4).
? Set at least 1.3 times the maximum load induced pressure (1.5 times when the setting is less than 2000 psi or 140 bar).
? The maximum recommended load pressure for the H range is 3080 psi (212 bar).
? The maximum recommended load pressure for the J range is 3850 psi (265 bar).
? Turn adjustment clockwise to decrease setting and release load.
? Full clockwise setting is 1000 psi (70 bar) for the H range and 2000 psi (140 bar) for the J range.
? These valves are capable of modulating over a broader range of flows than the pure poppet designs. The longer stroke allows us to incorporate a uni-directional damping device that smooths the opening and lets the valve close quickly.
? This valve is functionally a 4-port counterbalance valve. It seats as a poppet valve and modulates as a spool valve, offering the best of both valve types.
? All 4-port counterbalance, load control, and pilot-to-open check cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size).
? Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components.
? Sun load control and counterbalance cartridges can be installed directly into a cavity machined in an actuator housing for added protection and improved stiffness in the circuit.
? This valve has positive seals between all ports.
? This valve has full relief capacity.
? Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
SUN閥MWGA系列其他常用型號：
SUN MWGALHN
SUN MWGALHV
SUN MWGALJN
SUN MWGALJV
