LITTLE GIANT泵580613 2-MD-HC技術參數
Ratings | |
HP | 1/30 hp |
Frequency | 50Hz/60Hz |
Amps - Full Load | 0.64 A |
Full Load Watts | 100 W |
Volts | 230 VAC |
Cord Length | 6 ft |
Maximum Flow Rate - 60Hz | 8.5 gpm / 510 gph |
Minimum Flow Rate - 60Hz | 1 gpm / 60 gph |
Shut-Off | 47.9 ft |
Minimum Head - 60Hz | 1 ft |
Shut Off Height - 60Hz | 14.6 ft |
Max PSIG - 60Hz | 6.3 PSI |
Switch Type | Manual |
Liquid | |
Max Fluid Temperature | 200 °F |
Materials of Construction | |
Pump Body Material | Plastic |
Discharge Head Material | Thermoplastic |
Impeller Material | GF Polypropylene |
Installation | |
Discharge Type | Threaded - MNPT |
Suction Type | Threaded - FNPT |
Product Length | 8.9 " |
Product Width | 3.94 " |
Product Height | 4.94 " |
Pump Length | 8.9 " |
Product Weight | 6 lb |
Product Weight w/ Pack | 6.5 lb |
Carton Length | 11.5 " |
Carton Width | 7.25 " |
Carton Height | 6.75 " |
Other | |
Standard Warranty | 12 Months |
LITTLE GIANT泵MD-HC系列介紹
Little Giant MD-HC 系列采用防漏、無密封的磁力驅動設計，適用于管道內連續使用，但不是潛水式。蝸殼、磁體外殼和葉輪均由玻璃增強的Ryton?制成，具有優異的耐化學腐蝕性能。陶瓷軸和推力墊片采用99.5%純氧化鋁，具有出色的耐磨性和可靠的使用壽命。泵頭可以輕松旋轉、清洗或維護，無需特殊工具。軸桿兩端均受到支撐，防止泵在啟動和停止時葉輪損壞。

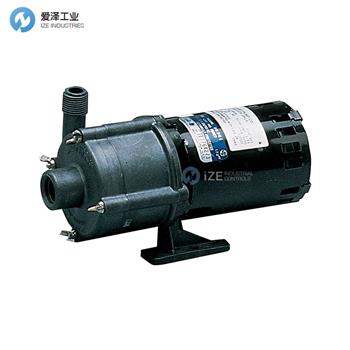

The Little Giant MD-HC series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute, magnet housing and impeller are glass-filled Ryton? for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
LITTLE GIANT泵MD-HC系列其他常用型號：
LITTLE GIANT 580613 2-MD-HC
LITTLE GIANT 580603 2-MD
