LITTLE GIANT磁性驅動泵TE-5-MD-HC 584604技術規格
Electrical | |
HP | 1/8 hp |
Frequency | 50/60 Hz |
Amps - Full Load | 3A |
Full Load Watts | 325 W |
Volts | 115 VAC / 230 VAC |
Cord Length | 1.83 m / 6 ft |
Operation | |
Max Flow Rate - 60 Hz | 75.71 Lpm / 4542 Lph / 4.54 m3/h |
Flow Rate At 1ft | 75.71 Lpm / 4542 Lph / 4.54 m3/h |
Shut-Off | 8.93 m / 29.3 ft |
Max PSIG - 60Hz | 12.7 PSI |
Max Fluid Temperature | 200°F |
Materials of Construction | |
Discharge Head Material | Thermoplastic |
Installation | |
Discharge Type | Threaded - MNPT |
Suction Type | Threaded - FNPT |
Product Weight | 7.17 kg / 15.8 lb |
Product Width | 13.21 cm / 5.2 " |
Product Height | 18.54 cm / 7.3 " |
Product Length | 28.45 cm / 11.2 " |
Pump Length | 28.63 cm / 11.27 " |
Product Weight w/ Pack | 7.39 kg / 16.3 lb |
Carton Width | 16.84 cm / 6.63 " |
Carton Height | 19.69 cm / 7.75 " |
Carton Length | 33.35 cm / 13.13 " |
LITTLE GIANT磁性驅動泵 TE-5-MD-HC介紹

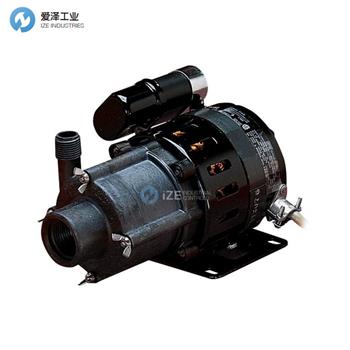

TE-5-MD-HC Chemical Pump is designed for the circulation of highly-corrosive solutions. Featuring 1/8 horsepower motor, the TE-5-MD-HC comes in 115/230 Volts and features 1/2" MNPT Discharge, 29.3 ft. Shut Off Head, 6 ft Cord.
TE-5-MD-HC化學泵專為高腐蝕性溶液的循環而設計。TE-5-MD-HC配備1/8馬力電機，電壓為115/230伏，配備1/2" MNPT放電管、29.3英尺關閉頭、6英尺電源線。
