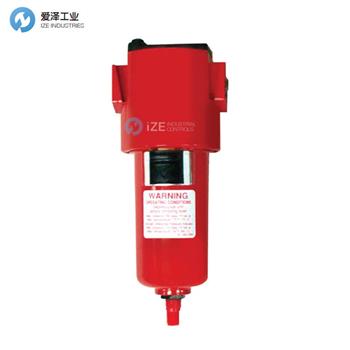

RTI過濾器3P-020-P02-DCIB技術參數
Specifications | |
Brands | Eliminizer? |
Port Size | 1/4 in |
Thread Styles | British Standard Parallel Pipe (BSPP), |
Flow Capacity at 100 Pound per Square Inch (psi) Pressure | 20 scfm |
Filter Capacity | 0.01 and up μm |
Differential Pressure at Rated Flow | < 5.0 psid |
Maximum Temperature | 200 oF |
Maximum Pressure | 150 psig |
Approximate Weight | 4.0 lb |
International Organization for Standardization (ISO) Class | 1 Particulate/Oil |
Element Material | Dual Stage - Stainless Steel, Cotton/Polyester |
Element Tube Material | Polycarbonate |
Coalescer Grade | Grade 2 Standard |
Bowl Material | Polycarbonate |
Drain Options | Automatic Float Drain |
Filters | Dirt, Oil, Water |
RTI過濾器3P-020-P02-DCIB產品介紹
兩 (2) 級組件將 Eliminizer過濾干燥器與高效聚結器相結合，除了去除重水外，還能提供油和細顆粒捕集能力。0.01 微米時效率為 99.99998%。ISO 1 級顆粒/油。
要添加指示器，請在型號末尾添加“I”
Two (2) stage assembly which combines an Eliminizer? filter-dryer with a high efficiency coalescer to give superior oil and fine particulate capture, in addition to heavy water removal. 99.99998 % efficient at 0.01 micron. ISO Class 1 for Particulate/Oil.
To add an indicator, add "I" to end of model number
RTI過濾器3P-020-P02系列其他常用型號：
RTI 3P-020-M02-DCP
RTI 3P-020-M03-DCP
RTI 3P-020-M02-DC
RTI 3P-020-M03-DC
RTI 3P-020-P02-DCP
RTI 3P-020-P03-DCP
RTI 3P-020-P02-DC
RTI 3P-020-P03-DC
RTI 3P-020-P02-DCIB
