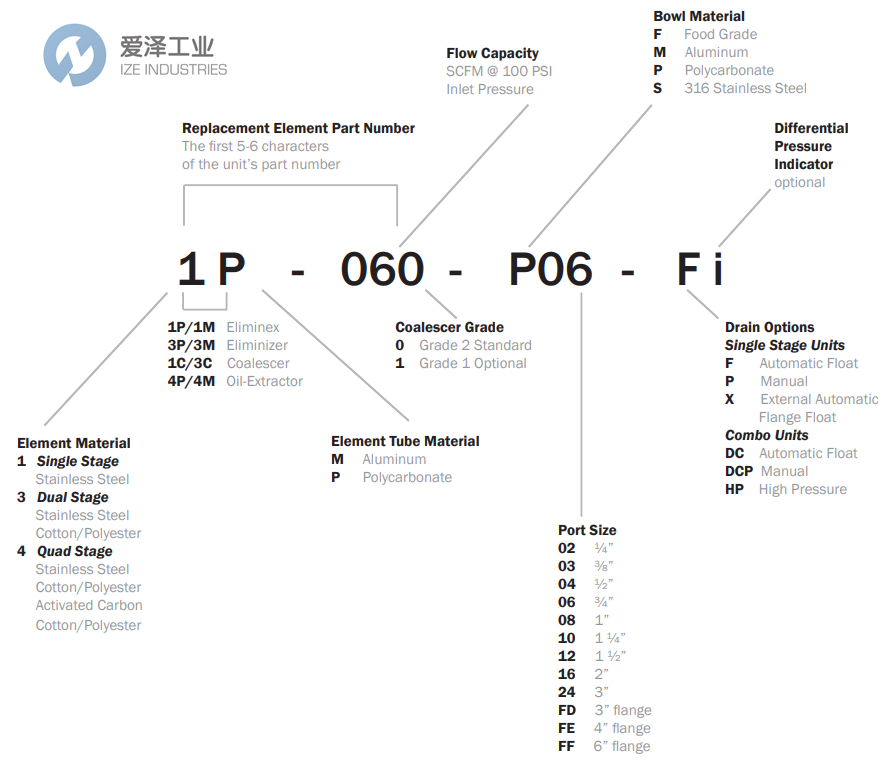

RTI過濾器3P-090-P06-DCi技術參數
Element Material | 3 = Stainless Steel |
Element Tube Material | P = Polycarbonate |
Flow Capacity | 090 = 90 SCFM @ 100 PSI |
Coalescer Grade | 0 = Grade 2 Standard |
Bowl Material | P = Polycarbonate |
Port Size | 06 = ?” |
Drain Options | DC = Automatic Float |
optional | i = Differential Pressure Indicator |
RTI過濾器3P-090-P06-DCi產品介紹

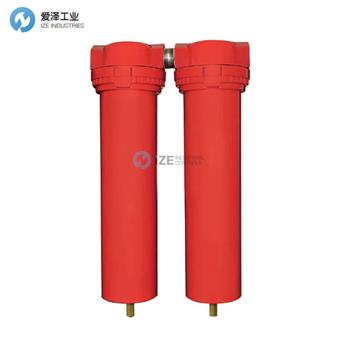

RTI 3P-090-P06-DCI Eliminizer Combo 是一種兩級組件，將 Eliminizer（過濾-干燥器）與高效聚結器結合在一起。3P-090-P06-DCI 型號的一些顯著特點包括 90 SCFM 100 PSI 的流量范圍、3/4" NPT 尺寸、自動浮動排水、150 PSIG 壓力額定值和聚碳酸酯濾杯。0.01 微米時效率為 99.99998% . ISO 1 級微粒/油。
RTI 3P-090-P06-DCI Eliminizer Combo is a two-stage assembly that combines an Eliminizer (filter-dryer) with a high efficiency Coalescer. Some notable features of the 3P-090-P06-DCI model include a flow range of 90 SCFM 100 PSI, 3/4" NPT size, automatic float drain, 150 PSIG pressure rating and a polycarbonate bowl. 99.99998% efficient at 0.01 micron. ISO Class 1 Particulate/Oil.
RTI過濾器3P系列選型
RTI過濾器3P系列其他常用型號：
RTI 3P-150-M04-DCP
RTI 3P-090-P04-DCP
RTI 3P-150-M06-DCP
RTI 3P-090-P06-DCP
RTI 3P-150-M08-DCP
RTI 3P-090-P08-DCP
RTI 3P-150-M04-DC
RTI 3P-090-P04-DC
RTI 3P-150-M06-DC
RTI 3P-090-P06-DC
RTI 3P-150-M08-DC
RTI 3P-090-P08-DC
RTI 3P-090-P06-DCi
RTI Filter/Dryer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RTI過濾器3P-090-P06-DCi的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RTI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
