EBARA離心泵CDX（L）系列產品參數
PUMP | Type of liquid | Clean water |
Liquid Handled | Temperature [°C] | min. -5 |
Maximum working pressure [MPa] | 0.8 | |
Construction | Impeller | Closed centrifugal type |
Pipe Connection | Suction [inch] | from G1"? to G1"? UNI ISO 228-1 |
Material | Casing | EN 1.4301 (AISI 304) - (AISI 316L only for “L” version) |
Applicable standard of test | ISO 9906:2012 - Grade 3B | |
EBARA離心泵CDX（L）系列產品介紹及選型
CDX（L）是帶有徑向葉輪的表面離心電動泵，其液壓系統完全采用AISI 304或AISI 316（L型）制成，其部件通過液壓成型工藝獲得，從而確保了強度，液壓效率和可靠性。
CDX（L）模型適用于從家庭增壓到小型灌溉，從水處理廠到蒸發塔的各種用途；因此通常用于處理清潔水。
標準機械密封由陶瓷/碳/丁腈橡膠制成，但有幾種特殊的密封可供選擇。
?液體溫度：-5°C÷+ 60°C（對于H，HS，HW和HSW版本，從-15°C到+ 110°C）

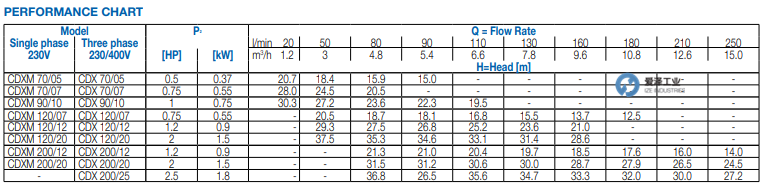

?總揚程從36.8到12.5 m
?流速1.2至15立方米/小時
?水力效率指數MEI> 0.4
?0.75kW起的IE3高效電機

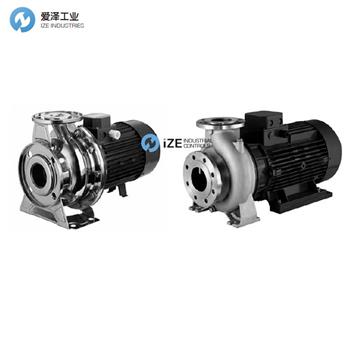

CDX(L) are surface centrifugal electric pumps with radial impeller, with hydraulics completely in molded AISI 304 or AISI 316 (version L), whose components are obtained through the hydroforming process, which guarantees strength, hydraulic efficiency and reliability.
CDX(L) model is suitable for different uses ranging from domestic pressurisation to small irrigation, from water treatment plants to evaporative towers; therefore for handling clean water in general.
The standard mechanical seal is made of Ceramic/Carbon/NBR, but several special seals are available.
? Liquid temperature:-5°C ÷ +60°C (from -15°C to +110°C for H,HS, HW and HSW versions)
? Total head from 36.8 to 12.5 m
? Flow rate 1.2 to 15 m3/h
? Hydraulic efficiency index MEI > 0.4
? IE3 high efficiency motors starting from 0.75kW

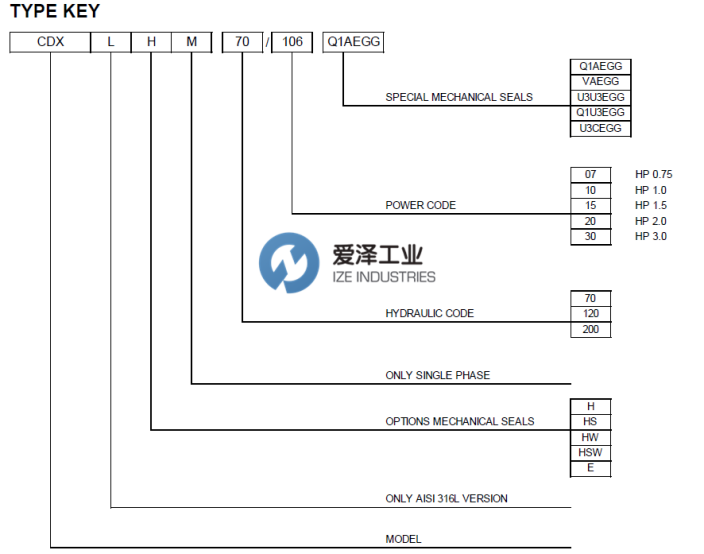

EBARA離心泵CDX系列其他常見型號：
EBARA CDX70/076
EBARA CDX70/106
EBARA CDX70/156
EBARA CDX120/106
EBARA CDX120/156
EBARA CDX120/206
EBARA CDX200/156
EBARA CDX200/206
EBARA CDX200/306
EBARA CDXE70/076
