APTECH壓力調節器AZ1000系列描述
Operating Parameters | |
Source pressure AZ 1001 and TF option | vacuum to 3,500 psig (241 bar) vacuum to 300 psig (21 bar) |
Delivery pressure AZ 1001 AZ 1002 AZ 1006 AZ 1010 AZ 1015 AZ 1030 | 1 to 10 psig (0.07 to 0.7 bar) 1 to 30 psig (0.07 to 2 bar) 2 to 60 psig (0.14 to 4 bar) 2 to 100 psig (0.14 to 7 bar) 5 to 150 psig (.34 to 10 bar) 5 to 300 psig (.34 to 21 bar) |
Proof pressure | 150% of operating pressures |
Burst pressure | 300% of operating pressures |
Other Parameters | |
Inlet/outlet connectors | 1/4 or 3/8 inch face seal or tube weld |
Flow coefficient (Cv) | 0.09 (0.15 HF option) |
Internal volume | 0.49 in3 (8 cm3) |
Operating temperature | -40° to +160°F (-40° to +71°C)* |
Surface finish | 10 μin. (0.25 μm) Ra avg. standard 25 μin. (0.62 μm) Ra avg. optional |
Inboard leakage | 2 x 10-10 sccs |
Outboard leakage | 2 x 10-9 sccs He |
Leakage across seat | 4 x 10-8 sccs He |
Installation | surface or panel (optional) |
Supply pressure effect | 0.25 psig per 100 psig source pressure change |

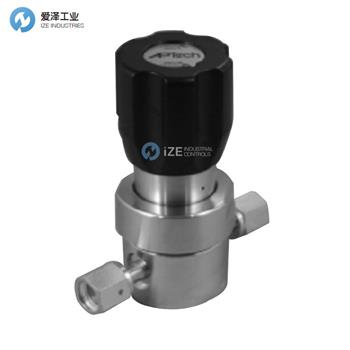

APTECH壓力調節器AZ1000系列產品介紹
AP Tech的各種調節器的入口壓力范圍高達10,000 psig（690 bar），輸送壓力從絕對壓力到10,000 psig（690 bar）。流量也有很大的范圍，從幾sccm到數千slpm。無論是手動彈簧加載還是氣動驅動，連接尺寸為1/8英寸至1英寸，AP Tech都是通過超高純氣體輸送實現高純度的首選調節器。
AP Tech’s wide array of regulators range up to 10,000 psig (690 bar) inlet pressure with delivery pressures from absolute to 10,000 psig (690 bar). Flow capacities also have a broad range from a few sccm to thousands of slpm. Whether manually spring loaded or pneumatically actuated, 1/8 inch through 1 inch connection size, AP Tech is the regulator of choice for high purity through ultra high purity gas delivery.

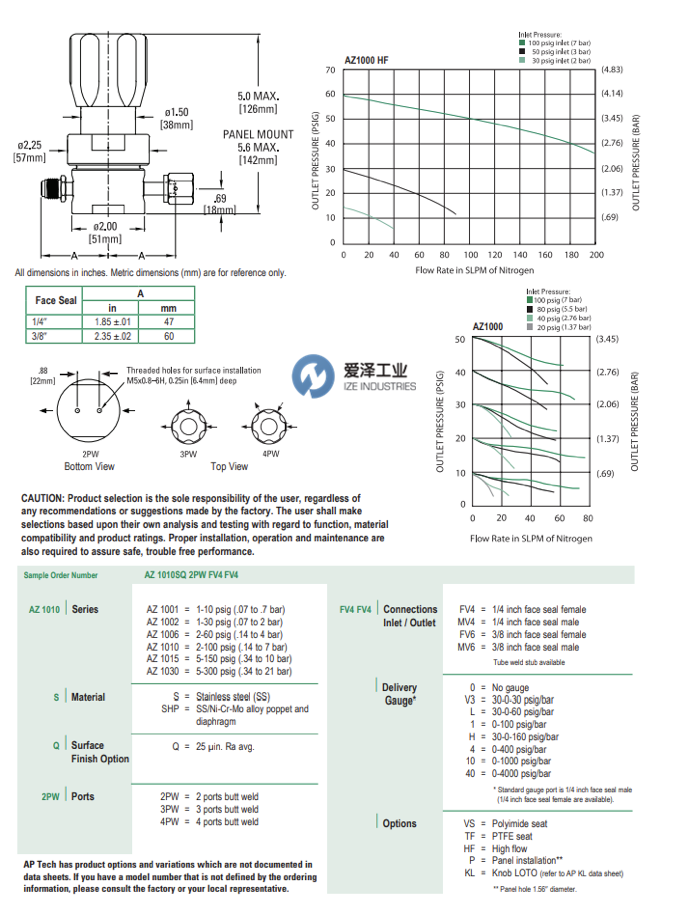

APTECH壓力調節器AZ1000系列選型
APTECH壓力調節器AZ1000系列其他型號列舉：
APTECH AZ1010SQ-2PW-FV4-FV4-TF
APTECH AZ1010S 2PW FV4 MV4
APTECH AZ1010S 2PW FV4MV4
APTECH AZ1010S 2PW FV4 MV4
APTECH AZ1010SQ-3PW-TW6-TW6-IV4-1-MPA-TF-HF
APTECH AZ1010S 2PW FV4 FV4
APTECH AZ1010S 2PW FV4 MV4 HF
APTECH AZ1010S2PWFV4MV4
APTECH AZ1010S 2PW FV4 MV4
APTECH AZ1010S 2PW FV4 FV4
APTECH AZ1010S 3PW FV4 MV40
APTECH AZ1015S 2PW FV4 FV4 SET
APTECH AZ1010SQ-2PW-FV4-FV4-TF
APTECH AZ1010S 2PW FV4 MV40
APTECH Pressure regulation NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于APTECH壓力調節器AZ1010SQ-2PW-FV4-FV4-TF的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for APTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
APTECH壓力調節器AZ1000系列AZ1010SQ-2PW-FV4-FV4-TF選型及介紹
