APTECH壓力調節器AZ1015S 2PWFV4FV4描述
Operating Parameters | |
Source pressure AZ 1001 and TF option | vacuum to 3,500 psig (241 bar) vacuum to 300 psig (21 bar) |
Delivery pressure AZ 1001 AZ 1002 AZ 1006 AZ 1010 AZ 1015 AZ 1030 | 1 to 10 psig (0.07 to 0.7 bar) 1 to 30 psig (0.07 to 2 bar) 2 to 60 psig (0.14 to 4 bar) 2 to 100 psig (0.14 to 7 bar) 5 to 150 psig (.34 to 10 bar) 5 to 300 psig (.34 to 21 bar) |
Proof pressure | 150% of operating pressures |
Burst pressure | 300% of operating pressures |
Other Parameters | |
Inlet/outlet connectors | 1/4 or 3/8 inch face seal or tube weld |
Flow coefficient (Cv) | 0.09 (0.15 HF option) |
Internal volume | 0.49 in3 (8 cm3) |
Operating temperature | -40° to +160°F (-40° to +71°C)* |
Surface finish | 10 μin. (0.25 μm) Ra avg. standard 25 μin. (0.62 μm) Ra avg. optional |
Inboard leakage | 2 x 10-10 sccs |
Outboard leakage | 2 x 10-9 sccs He |
Leakage across seat | 4 x 10-8 sccs He |
Installation | surface or panel (optional) |
Supply pressure effect | 0.25 psig per 100 psig source pressure change |
APTECH壓力調節器AZ1015S 2PWFV4FV4產品介紹
單級壓力調節器，適用于圓柱形的使用點應用。入口壓力范圍從真空到4,500 psig（310bar），而出口壓力范圍從絕對到500 psig（34 bar）。流量額定值從幾sccm到5,000 slpm的N2，線徑從從英寸到1英寸。
APTECH壓力調節器AZ1015S 2PWFV4FV4選型
APTECH壓力調節器AZ1015S 2PWFV4FV4
愛澤工業(IZE INDUSTRIES)特價經銷、常用APTECH壓力調節器型號：
APTECH AZ1015S 2PWFV4FV4
APTECH AZ1015S2PWFV6FV6HF
APTECH AZ1015S2PWFV4MV4
APTECH AZ1015S 2PW FV4 MV4 HF
APTECH AZ9210S 2PW FV16 FV16
APTECH AZ3550S 2P MV4 MV4
APTECH AZ1015S 2PW FV4 FV4
APTECH AZ1010S 3PW FV4 FV4 1 MPA
APTECH AZ1015S 3PW FV4 FV4 0
APTECH AZ10155 2PW FV4 FV4
APTECH AZ1015S 2PW FV6 FV6
APTECH AZ1210S 2PW FV8 FV8
APTECH AZ1402TSA 2PW FV4 FV4 109
APTECH AZ1410TS 2PW FV4 FV4
APTECH AZ1410TS 2PW FV4 FV4 109
APTECH AZ1515S 4PW FV4 FV4 0 0 109
APTECH AZ1010S 2PW FV4 MV4
APTECH AZ1020S 2PW FV4 MV4
APTECH AZ1050S 2PW FV4 MV4
APTECH AZ1015S 2PW FV4FV4
APTECH AZ1015S 2PW FV4FV4
APTECH AZ3652S2PWFV4
APTECH AZ1015S 2PW FV4 MV4
APTECH AZ1010S 2PW FV4MV4
APTECH AZ1015S 2PW FV6 FV8
APTECH AZ1010S 4PW MV4 MV4 OO
APTECH AZ1210S 4PW FV8 FV8 IV4 IV4
APTECH AZ1002S 4PW MV4 MV4 IV4 IV4
APTECH AZ1002S 3PW FV4 FV4 IV4 HF
APTECH AZ1315 S2PW FV8 FV8
APTECH AZ1210S 2PW MV6 MV6
APTECH AZ1210S 2PW FV8 MV4
APTECH AZ1210S2PWFV8MV8FC
APTECH AZ1210S2PWFV8MV4
APTECH AZ1010S 2PW FV4 MV4
APTECH AZ1210S 2PW FV8 MV8
APTECH AZ1310SQ-3PW-TW8-TW8-IV4-1-MPA-TF
APTECH AZ1010SQ-3PW-TW6-TW6-IV4-1-MPA-TF-HF
APTECH AZ1210S 2PW FV8 MV8
APTECH AZ1210S 2PW FV8 MV4
APTECH AZ1010S 2PW FV4 FV4
APTECH AZ1015S 2PW FV4 FV4
APTECH AZ1410TS 2PW MV4-VS
APTECH AZ1010S 2PW FV4 MV4 HF
APTECH AZ1015S 2PW FV6
APTECH AZ1315S 2PW FV8 FV8
APTECH AZ3650S 2PW FV4 FV4
APTECH AZ3540S 2P MV4 MV4
APTECH AZ1015S 2PW FV4 FV4
APTECH AZ1410TS 2PW FV4 FV4 109 VS
APTECH AZ455OS 2P MV4 MV4
APTECH AZ458OS 2P MV4 MV4
APTECH AZ1315S 2PW MV4 MV4
APTECH AZ1310S 2PW FV8 FV8
APTECH AZ1015S 2PW FFV4 FV4
APTECH AZ1015S 2PW FFV4 FV4 HF
APTECH AZ1415TS 2PW FV4 FV4
APTECH AZ1515S 2PW FV4 FV4
APTECH AZ1215S 2PW FV8 FV8
APTECH AZ1010S2PWFV4MV4
APTECH AZ1010S 2PW FV4 MV4
APTECH AZ1010S 2PW FV4 FV4
APTECH AZ4580S 2PWMV4MV4
APTECH AZ4550S 2PMV4MV4
APTECH AZ1225S 2PW FV8 FV8 VS PS25
APTECH AZ1210s 2PW FV8 FV8 VS
APTECH AZ1210s 2PW FV12 FV12 HF
APTECH AZ1225S 2PW FV8 FV8 VS PS25
APTECH AZ1210S 2PW FV8 FV8VS
APTECH AZ1210S 2PW FV12 FV12 HF
APTECH AZ1010S 3PW FV4 MV40
APTECH AZ1210S-2PW-FV8-MV8
APTECH AZ1015S 2PW FV4 FV4 SET
APTECH AZ1015S 2PWFV4FV4
APTECH AZ1010S 2PW FV4 MV40
APTECH Pressure regulation NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于APTECH壓力調節器AZ1015S 2PWFV4FV4的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for APTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

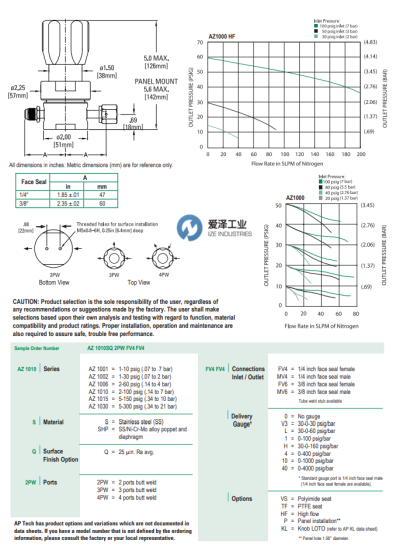

APTECH壓力調節器AZ1000G系列AZ1015S 2PWFV4FV4選型及介紹
