KRACHT齒輪泵KF4...80系列技術參數
Characteristics | |
Nominal sizes 4…80 cm3 | Vg = 4 / 5 / 6 / 8 /10 /12 /16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 |
Fitting position | arbitrary |
Direction of rotation | right or left |
Fixing type | flange (DIN ISO 3019) |
Pipe connection | KF 4…25 Whitworth pipe thread, SAE flange |
Drive shaft end | ISO R 775 short-cylindrical |
Operating pressure pressure side Pn | 25 bar (higher pressures on request) |
Speed | 200 … 3 000 1/min |
Viscosity | 12 … 20 000 mm2/s |
Ambient temperature | Vu = - 20 °C … 60 °C (-- 4 °F…140 °F) |
Materials | |
Housing and cover | EN-GJL-250 (GG 25) |
Gear | Steel 1.7139 |
Plain bearing bushes | DU (multi-layer friction-type bearings P 10, DP 4) |
Bearings free of nonferrous metal on request | |
Shaft end seals | NBR, FKM, PTFE, EPDM (other sealing materials on request. E.g. HNBR / CR) |
O-ring | NBR, FKM, PTFE, EPDM (other sealing materials on request. E.g. HNBR / CR) |

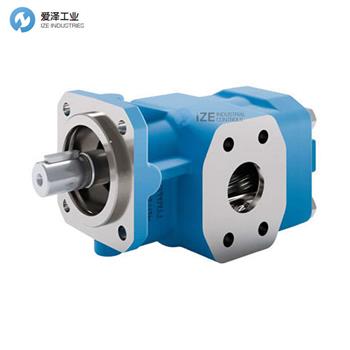

KRACHT齒輪泵KF系列介紹
傳輸齒輪泵 KF 齒輪泵用于泵送各種流體。
傳輸齒輪泵 KF 齒輪泵的特點是其種類繁多，可根據模塊化原理按需組裝，并允許后續升級。
該泵還適用于潤滑性較低的介質。
標準殼體部分由灰鑄鐵制成。
齒輪組由高強度表面硬化鋼制成，經過硬化處理并安裝在特殊的多化合物滑動軸承襯套中。
標準驅動軸由旋轉軸唇形密封件密封。
所有尺寸的泵均采用斜齒系統。該特性與特殊的齒輪幾何形狀相結合，可實現極低的噪音水平和減小的壓力脈動。
Transfer gear pumps KF gear pumps are used for pumping a wide variety of fluids.
Transfer gear pumps KF gear pumps are distinguished especially by their wide range of variants which are assembled as required on the modular principle and also permit subsequent upgrade.
The pumps are also suitable for media with low lubricating properties.
The standard housing sections are of grey cast iron.
The gear units are manufactured from high-strength case-hardening steel, hardened and mounted in special multi-compound plain bearing bushes.
The standard drive shaft is sealed by rotary shaft lip-type seal.
All pump sizes incorporate helical tooth system. This feature, combined with special gear geometry, results in extremely low noise levels and reduced pressure pulsation.

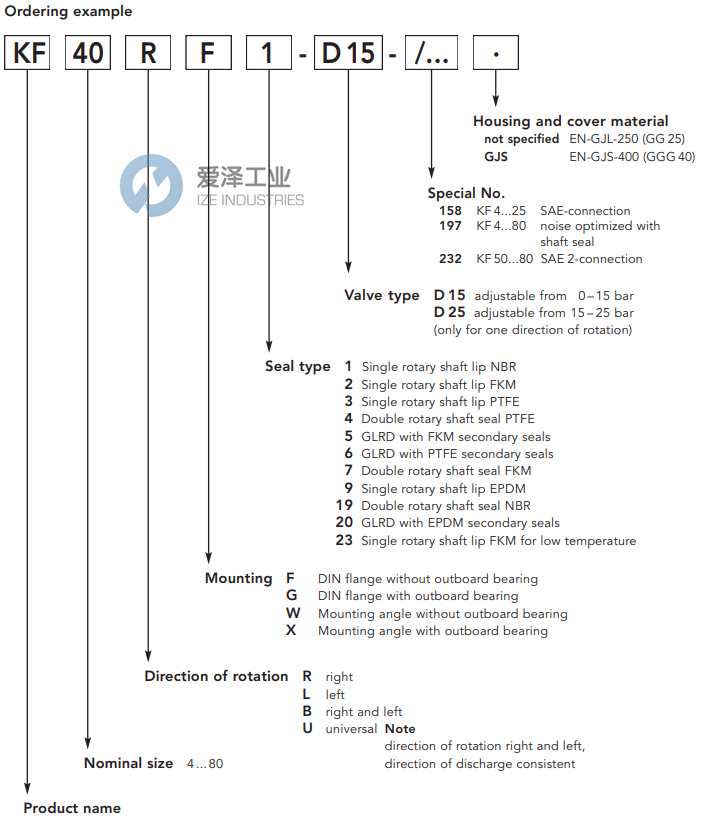

KRACHT齒輪泵KF系列選型
KRACHT齒輪泵KF系列其他常用型號：
KRACHT KF8 RF2-D15
KRACHT KF8 RF1-D15
KRACHT KF8 RF7-D15
KRACHT KF40RF1-D15
KRACHT KF6 RF1-D15
KRACHT KF20 RF1-D15
KRACHT KF 8 RF 2/158
