KRACHT齒輪泵KF0系列技術參數
Technical data | |
Fixing type | Flange |
Hydraulic connection | Pipe thread |
Speed | … 3000 1/min (Dependent on viscosity) |
Direction of rotation | Clockwise or anticlockwise |
Mounting position | 100 optional |
Weight | 2.2 kg |
KRACHT齒輪泵KF0系列介紹
KF 0 是一種外嚙合齒輪泵，流量為 0.5 … 4 cm3/rev。
總共八種公稱尺寸的分級使設置所需的計量比更加容易。 齒數多的精細齒輪傳動確保了低脈動體積流量。
即使在標準設計中，所有齒輪部件和軸承襯套也通過特殊涂層保護，以防止磨損和腐蝕，因此即使填充介質達到特定的顆粒尺寸和填充材料的硬度，也可以輸送。 由于間隙尺寸與精確生產相結合，KF 0 在很寬的壓力范圍內具有非常好的容積效率。
可以根據任務選擇各種類型的密封件，例如單徑向唇形密封件和雙徑向唇形密封件，其中后一種版本允許使用淬火（淬火室）操作，以防止泵送介質硬化或結晶。
結合流量計和電子設備，KF 0 可以擴展為高精度計量裝置。

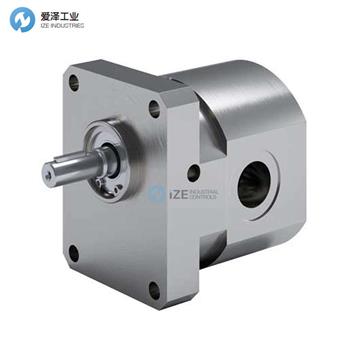

The KF 0 is an external gear pump with flow rates of 0.5 … 4 cm3/rev.
The grading of the total of eight nominal sizes makes it easier to set the desired dosing ratios. The fine gearing with a high number of teeth guarantees a low-pulsation volume flow.
All gear parts and the bearing bushes are protected even in the standard design by a special coating against wear and corrosion, so that even filled media up to a specific grain size and hardness of the filled material can be conveyed. Because of the backlash dimensioning in combination with precise production the KF 0 has very good volumetric efficiency over a wide pressure range.
Various types of seals, such as single radial lip-type seals and double radial lip-type seals can be selected depending on the task, whereby the latter version enables operations with quench (quench chamber)
to prevent the pumping medium from hardening or crystallising.
In combination with a flow meter and the electronics the KF 0 can be extended to a highly precise dosing unit.

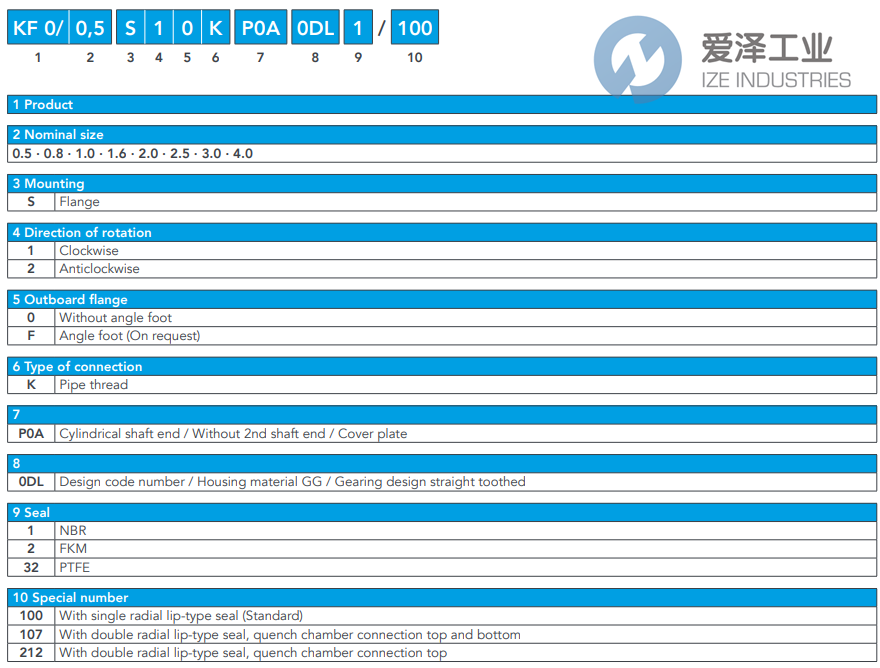

KRACHT齒輪泵KF0系列選型
KRACHT齒輪泵KF0系列其他常用型號：
KRACHT KF0/0,5S10KP0A0DL1/100
KRACHT KF0/1S10K P0A0DL2/100
KRACHT KF0/0,5S1OKPOA0DL2/44
KRACHT KF1/20L10ES000DE2/197
KRACHT KF0/2S10KP0A0DL32/107
KRACHT KF0/4S10KP0A0DL2/44
KRACHT PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KRACHT齒輪泵KF0/4S10KP0A0DL2/44的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KRACHT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KRACHT齒輪泵KF0系列KF0/4S10KP0A0DL2/44技術參數及選型
