BERARMA葉片泵01-PHP3-100-FHRMA-PCS002技術參數
Code | 01-PHP3-100-FHRMA-PCS002 |
Series Name | [01 PHP] |
Size; Displacement cm3/r | [3 – 100] 3; 100 |
Flange; Ports | [F] ISO 3019-2 4 holes; Gas BSP / SAE 3000 |
Pressure setting (bar) | [H] 30 ÷ 250 |
Rotation direction | [R] Right (cw) view from shaft end |
Seals | [M] NBR |
Option | [A] Thru drive shaft for combined pumps |
Pressure control | [PCS002] Single stage of pressure with remote control |

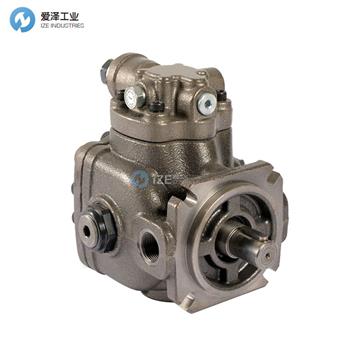

BERARMA葉片泵PHP系列介紹
PHP 泵是高壓可變排量葉片泵，配備液壓調節裝置，允許用戶根據電路要求即時調整流量?？勺兣帕咳~片泵是容積式泵，因此它們提供的最大流量相當于其轉速下的排量。工作壓力是由系統內流體遇到的壓力負荷引起的。當出口壓力（在系統上）等于泵設定壓力時，流量將調整為系統所需的值。當達到此值時，泵將流量降低至零，使壓力幾乎保持恒定。在零流量條件下，泵僅輸送油以補償任何可能的泄漏和引導。
PHP pumps are high pressure variable displacement vane pumps equipped with hydraulic pressure regulating device that allow user to instantly adjust the flow rate accordingly to circuit requirements. Variable displacement vane pumps are volumetric type so they deliver a maximum flow rate equivalent to its displacement for their speed of rotation. Operating pressure is due to pressure loads encountered by the fluid within the system. When the outlet pressure (on the system) equals the pump setting pressure, the flow rate is adjusted to the values required by the system. When this value is achieved, pump reduces its flow rate to zero, keeping the pressure almost constant. In zero flow conditions, pump delivers oil only to compensate any possible drain and piloting.

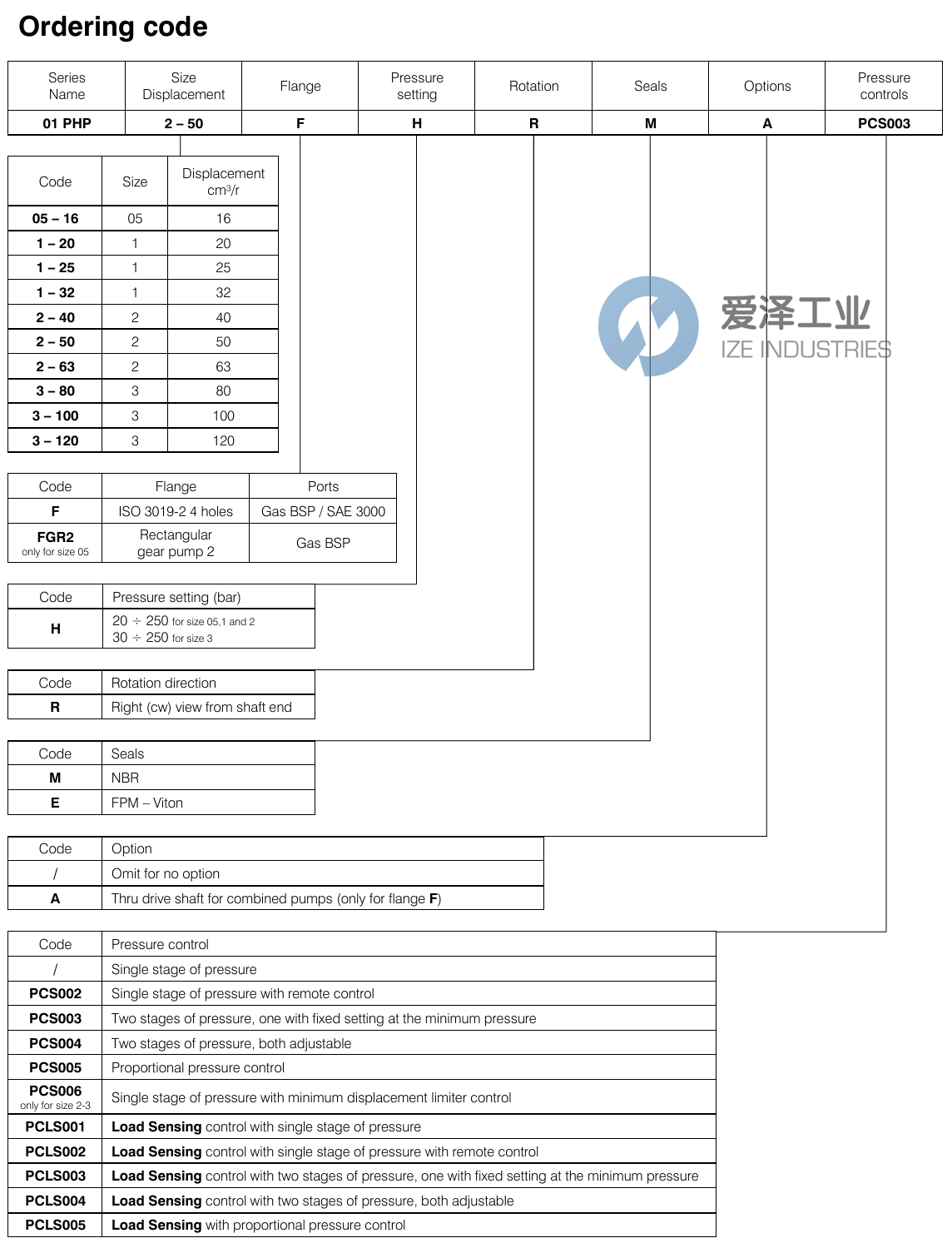

BERARMA葉片泵PHP系列選型
BERARMA葉片泵PHP系列其他常用型號：
BERARMA 01-PHP 05-16 FGR2 H R M
BERARMA 01-PHP 05-16 FGR2 H R M PCLS001
BERARMA 01-PHP 05-16 FGR2 H R M PCLS002
BERARMA 01-PHP 05-16 FGR2 H R M PCLS003
BERARMA 01-PHP 05-16 FGR2 H R M PCLS004
BERARMA 01-PHP 05-16 FGR2 H R M PCLS005
BERARMA 01-PHP 05-16 FGR2 H R M PCS002
BERARMA 01-PHP 05-16 FGR2 H R M PCS003
BERARMA 01-PHP 05-16 FGR2 H R M PCS004
BERARMA 01-PHP 05-16 FGR2 H R M PCS005
BERARMA 01-PHP 1-25 FHRM PCS003
BERARMA 01-PHP 3-100 FHRM PCLS004
BERARMA 01-PHP 3-100 FHRMA PCLS003
BERARMA 01-PHP 3-100 FHRMA PCS003
BERARMA 01-PHP 3-120 FHRM PCS003
BERARMA 01-PHP3-100-FHRMA-PCS002
BERARMA PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BERARMA葉片泵01-PHP3-100-FHRMA-PCS002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BERARMA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BERARMA葉片泵PHP系列01-PHP3-100-FHRMA-PCS002技術參數及選型
