BERARMA泵01PHP2.50FHRM產品參數
Series Name | 01 PHP |
Size Displacement | 2 – 50 |
Flange | ISO 3019-2 4 holes Gas BSP / SAE 3000 |
Pressure setting | 20 ÷ 250 for size 05,1 and 2 |
Rotation | Right (cw) view from shaft end |
Seals | NBR |
BERARMA泵PHP系列產品介紹

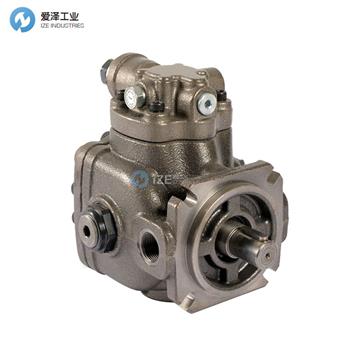

PHP pumps are high pressure variable displacement vane pumps equipped with hydraulic pressure regulating device that allow you to instantly adjust the flow rate accordingly to circuit requirements.
Variable displacement vane pumps are volumetric type so they deliver a maximum flow rate equivalent to its displacement for their speed of rotation. Operating pressure is due to pressure loads encountered by the fluid within the system.
When this value is achieved, pump reduces its flow rate to zero, keeping the pressure almost constant. In zero flow conditions, pump delivers oil only to compensate any possible drain and piloting.
FEATURES AND BENEFITS
Various pressure and flow rate controls
Maximum displacement limiter included
Arrangement for combined pumps available
High operating pressure
Excellent response times
Silent running
High efficiency
Long working life
Economy and simplification of hydraulic system
Modular design
Energy saving
PHP泵是高壓可變排量葉片泵，配備液壓調節裝置，可讓您根據回路要求即時調節流量。
可變排量葉片泵是容積式的，因此它們提供的最大流量相當于其轉速的排量。 工作壓力是由于系統內的流體所承受的壓力負載造成的。
當達到這個值時，泵將其流量降低到零，保持壓力幾乎恒定。 在零流量條件下，泵僅輸送油來補償可能的泄漏和先導。
特點和優點
多種壓力和流速控制
包含最大位移限制器
提供組合泵的布置
操作壓力高
極好的響應時間
安靜運行
高效率
使用壽命長
液壓系統經濟、簡化
模塊化設計
節能
BERARMA泵其他常見型號：
BERARMA 01 PHP 05-16
BERARMA 01 PHP 1-20
BERARMA 01 PHP 1-25
BERARMA 01 PHP 1-32
BERARMA 01 PHP 2-40
BERARMA 01 PHP 2-50
BERARMA 01 PHP 2-63
BERARMA 01 PHP 3-80
BERARMA 01 PHP 3-100
BERARMA 01 PHP 3-120
BERARMA Pneumatic pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BERARMA泵01PHP2.50FHRM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BERARMA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
