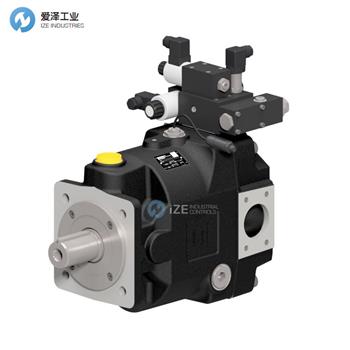

PARKER泵PV180R1K1T1NMMC技術參數
size and displacement | 180: 180 cm3/rev, Frame Size 4 |
rotation | R: Clockwise |
variation | 1: Standard |
mounting interface | K: metr. ISO 3019/2 4-hole flange ?160 mm Cylindric, key |
threads code | 1: BSPP metric |
thru drive code | T: Single pump prepared for thru drive |
coupling code | 1: Single pump, no coupling |
seals | N: NBR FKM |
Code | M M: Standard pressure control |
Control variation | C: Standard version, integrated pilot valve |
PARKER泵PV系列介紹
PVplus 可變排量軸向柱塞泵專為重載工業和船舶應用的嚴苛要求而設計和優化。這款開式斜盤式軸向柱塞泵額定壓力高達 420 bar，轉速高，可為用戶提供高生產力和高功率密度。除了堅固耐用和超長使用壽命外，PVplus 還具有極高的轉換靈活性。作為標準配置，每臺 PVplus 均配備集成預壓縮腔，可確保低脈動運行和降低噪音排放。豐富的排量和控制選項使其應用范圍廣泛。
特點和優勢：
? 排量范圍：16-360 cc/rev – 滿足廣泛的應用和流量要求。
? 工作壓力高達 350 bar（連續）/ 420 bar（間歇）——高功率密度。
? 精確、高動態控制——卓越的響應特性和生產力提升。
? 卓越的吸入特性和高自吸速度——提高生產力。
? 集成預壓縮容積——降低脈動和噪音水平。
? 堅固耐用的設計——使用壽命長，維護間隔長。
? 模塊化方法和框架尺寸設計——易于轉換，降低庫存成本。
? HFC 能力高達 210 bar——適用于需要使用耐火油的開式液壓系統。
Parker PVplus axial piston pump with variable displacement has been designed and optimized for demanding use in heavy duty industrial and marine applications. With pressure ratings of up to 420 bar and high-speed ratings this open circuit, swashplate principle axial piston pump provides high productivity and power density to its users. Beside its robustness and exceptionally long service life, PVplus is also characterized by a very high conversion flexibility. As a standard every PVplus comes with an integrated pre-compression volume which ensures low ripple operation and reduced noise emissions. A wide range of displacements and control options allows for a wide range of applications.
Features and Benefits:
? Displacements from 16-360 cc/rev – covers wide range of applications and flow requirements.
? Operating pressures of up to 350 bar (continuous) / 420 bar (intermittent) – high power density.
? Accurate,highly dynamic controls – outstanding response characteristics and productivity improvements.
? Excellent suction characteristics and high self-priming speeds – increased productivity.
? Integrated pre-compression volume – reduced pulsation and noise level.
? Robust, heavy duty design – long lifetime and service intervals.
? Modular approach and frame size design – easy conversion and reduced inventory expenditures.
? HFC capability up to 210 bar – suitable for usage in open circuit hydraulic systems where fire-resistant fluids are required.
PARKER泵PV系列其他常用型號：
PARKER PV032R1K1T1NMFC
PARKER PV092R1K1T1NMMC
PARKER PV080R1K1T1NSLC
PARKER PV140R1K1T1NTC1
PARKER PV140R1K1T1NMC1
PARKER PV046R1K1T1NGLC
PARKER PV092R1K1T1NMC1
PARKER PV040R1K1T1NMR1
PARKER PV080R1L1T1NTCC
PARKER PV180R1K1T1WMMC
PARKER PV360R4K1T1NUDM
PARKER PV032R1K1T1NEL1
PARKER PV180R1K1T1NMMC
PARKER PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PARKER泵PV180R1K1T1NMMC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
