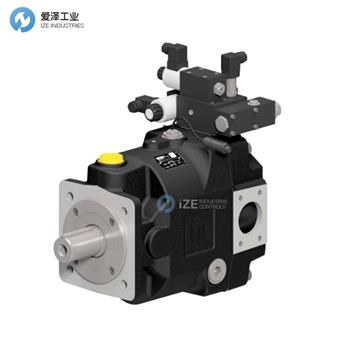

PARKER液壓泵PV040R1K1T1NMR1技術參數
SERIES | PV Plus |
DISPLACEMENT | [040] - 40 [cm3/rev] maximum, Frame size 2 |
ROTATION | [R] - Clockwise |
VARIATION | [1] - Standard |
MOUNTING INTERFACE / SHAFT | [K] - metric 4bolt-mount; metric keyed shaft |
PORTS / THREADS | [1] - BSPP ports; Metric Threads |
THRUDRIVE PAD AND COUPLING | [T1]- Single pump prepared for thru drive, no coupling I |
SEALS | [N] - NBR seals / FKM shaftseal |
CONTROLS GROUP | Hydromechanical controls |
COMPENSATOR PART1 | [M] - hydromechanical controls |
COMPENSATOR PART2 | [R] - Pressure compensator with remote adapter mounted |
COMPENSATOR PART3 | [1] - NG6 interface topside for pilot mount, integrated pmax pilot |
PARKER液壓泵PV系列產品介紹及選型
Parker PVplus 可變排量軸向柱塞泵經過精心設計和優化，適用于重型工業和船舶應用的苛刻使用要求。這款開路斜盤原理軸向柱塞泵的壓力額定值高達 420 bar，轉速高，可為用戶提供高生產率和功率密度。除了堅固耐用和超長的使用壽命外，PVplus 還具有極高的轉換靈活性。作為標準配置，每個 PVplus 都配有集成預壓縮容積，可確保低波動運行和降低噪音排放。廣泛的排量和控制選項可實現廣泛的應用。
特點和優點：
? 排量從 16 到 360 cc/rev - 涵蓋廣泛的應用和流量要求。
? 工作壓力高達 350 bar（連續）/ 420 bar（間歇） - 高功率密度。
? 精確、高度動態的控制 - 出色的響應特性和生產率改進。
? 出色的吸入特性和高自吸速度 - 提高生產率。
? 集成預壓縮體積 – 降低脈動和噪音水平。
? 堅固耐用的設計 – 使用壽命長，維修間隔長。
? 模塊化方法和框架尺寸設計 – 易于轉換并減少庫存支出。
? HFC 能力高達 210 bar – 適用于需要耐火流體的開路液壓系統。
Parker PVplus axial piston pump with variable displacement has been designed and optimized for demanding use in heavy duty industrial and marine applications. With pressure ratings of up to 420 bar and high-speed ratings this open circuit, swashplate principle axial piston pump provides high productivity and power density to its users. Beside its robustness and exceptionally long service life, PVplus is also characterized by a very high conversion flexibility. As a standard every PVplus comes with an integrated pre-compression volume which ensures low ripple operation and reduced noise emissions. A wide range of displacements and control options allows for a wide range of applications.
Features and Benefits:
? Displacements from 16-360 cc/rev – covers wide range of applications and flow requirements.
? Operating pressures of up to 350 bar (continuous) / 420 bar (intermittent) – high power density.
? Accurate, highly dynamic controls – outstanding response characteristics and productivity improvements.
? Excellent suction characteristics and high self-priming speeds – increased productivity.
? Integrated pre-compression volume – reduced pulsation and noise level.
? Robust, heavy duty design – long lifetime and service intervals.
? Modular approach and frame size design – easy conversion and reduced inventory expenditures.
? HFC capability up to 210 bar – suitable for usage in open circuit hydraulic systems where fire-resistant fluids are required.
PARKER液壓泵PV系列其他常見型號：
PARKER PV040R1K1T1N100
PARKER PV040R1K1T1NMMC
PARKER PV040R1K1T1NMR1
PARKER Aluminum Pumps NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PARKER液壓泵PV040R1K1T1NMR1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
PARKER液壓泵PV040R1K1T1NMR1產品參數
