GAI-TRONICS通話通信系統400-001技術參數
Specifications | |
AC Power | |
Voltage | 120 V ac, 50/60 Hz |
Power consumed (at nominal) | |
Off (mute) | 6 VA, 1.8 W |
Standby | 7.2 VA, 3.6 W |
Maximum Speaker Out | 30 VA, 27 W |
DC Power | |
Voltage | 12 V dc |
Power consumed (at nominal) | |
Off (mute) | 0.3W |
Standby | 3 W |
Maximum Speaker Out | 20 W |
Amplifier PCBA | |
Frequency Response | 300–8 kHz, +/-3 dB |
Audio Output | 8.0 watts |
Audio THD Distortion | 1% maximum, 8-watt output |
Hum / Noise | 1% maximum, 8-watt output |
Gain-Listen Mode | 30 dB |
Gain - Talk Mode (speaker as the microphone) | 42 dB |
Gain - Talk Mode (auxiliary microphone) | 48 dB |
Speaker (Model 400-001 Only) | |
Rating | 30 watts maximum |
Impedance | 16 ohms |
Frequency Response | 400–3.5 kHz, +/-6 dB |
Sound Pressure Level, 1 Watt @ 1 Meter, Swept Sine Wave | 104 dB SPL |
Environment | |
Temperature range (operating and storage) | -20° C to +60° C (-4° F to +140° F) |
GAI-TRONICS通話通信系統400-001產品介紹
GAI-TRONICS 400-001和 400-002NS型RigCom站是專為危險和惡劣環境設計的通用通話通信系統。該系統使用簡單，一鍵通話，即放即聽操作。該站還可以配置為免提操作，其中揚聲器始終處于聆聽模式。RigCom站由一個裝有電子設備的防爆外殼和一個也用作麥克風的防爆揚聲器組成。
特征：
? 堅固的結構
? 主/從或通用通話模式
? 免提操作
? Division I 危險區域批準
? 開關/音量控制開關
? 一鍵通話開關
? 與GAI-TRONICS的EZ頁面兼容
? 電源120 V ac和12 V dc
? 輔助麥克風選項
? 輔助腳踏開關選項
? 揚聲器遠程安裝選項

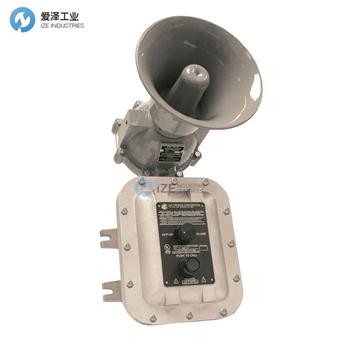

GAI-TRONICS Model 400-001 and 400-002NS RigCom Stations are a common-talk communication system designed for hazardous and harsh environments. The system is simple to use with push-to-talk, release-to-listen operation. The station can also be configured for handsfree operation where the speaker is always in listen mode.The RigCom station consists of an explosion-proof case,which houses the electronics, and an explosion-proof loudspeaker that also functions as the microphone.
Features:
? Rugged Construction
? Master / Slave or Common Talk Modes
? Hands-free Operation
? Division I Hazardous Area Approvals
? On-off / Volume Control Switch
? Push-to-Talk Switch
? Compatible with GAI-TRONICS' EZ Page
? Power 120 V ac and 12 V dc
? Option for Auxiliary Microphone
? Option for Auxiliary Footswitch
? Option for Remote Mounting of Speaker
GAI-TRONICS通信系統其他常用型號：
GAI-TRONICS 400-001
GAI-TRONICS 400-002NS
