GAI-TRONICS通信系統400-005技術參數
GENERAL SPECIFICATIONS | |
AC Power | |
Voltage: | 120 V ac, 50/60 Hz |
Power Consumed (at nominal): | Off (mute): 6 VA, 1.8 W |
DC Power | |
Voltage: | 12 V dc |
Power Consumed (at nominal): | Off (mute): 0.3 W |
Amplifier | |
Frequency Response: | 300-8 kHz, +/- 3 dB |
Audio Output: | 8.0 watts |
Audio THD Distortion: | 1% maximum, 8-watt output |
Hum/Noise: | 1% maximum, 8-watt output |
Gain-Listen Mode: | 30 dB |
Gain-Talk Mode (speaker as the microphone): | 42 dB |
Gain-Talk Mode (auxiliary microphone): | 48 dB |
Speaker (Model 400-005 Only) | |
Rating: | 30 watts maximum |
Impedance: | 16 ohms |
Frequency Response: | 400-3.5 kHz, +/- 6 dB |
Enclosure | |
Construction/Finish: | Cast aluminum/Gray epoxy powder coat finish |
Mounting: | Wall or column, four slotted mounting feet |
Connections: | Plug-in style terminal blocks |
Conduit Entries: | Bottom – two 3/4-inch NPT |
Weight | |
400-005: | 40 lbs. (18.1 Kg) |
Operating Temperature | |
Operating and storage: | -20°C to +60°C /-4°F to +140°F |
GAI-TRONICS通信系統400-005產品介紹
RigCom 站是一種通用通信系統，專為危險和惡劣環境而設計。該系統使用簡單，可進行按鍵通話、釋放收聽操作。該電臺還可以配置為免提操作，揚聲器始終處于監聽模式。RigCom 站由一個裝有電子設備的防爆外殼和一個兼作麥克風的防爆揚聲器組成。
? 堅固的結構
? 主/從或普通通話模式
? 免提操作
? I 部危險區域批準
? 開關/音量控制開關
? 一鍵通開關
? 與 GAI-TRONICS 的EZ 頁面兼容
? 電源 120 VAC 和 12 VDC
? 輔助麥克風選項
? 輔助腳踏開關選項
? 揚聲器遠程安裝選項

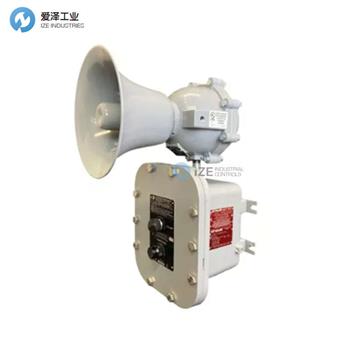

RigCom Stations are a common-talk communication system designed for hazardous and harsh environments. The system is simple to use with push-to-talk, release-to-listen operation. The station can also be configured for hands-free operation where the speaker is always in listen mode. The RigCom station consists of an explosion-proof case, which houses the electronics, and an explosion-proof loudspeaker that also functions as the microphone.
? Rugged Construction
? Master / Slave or Common Talk Modes
? Hands-free Operation
? Division I Hazardous Area Approvals
? On-off / Volume Control Switch
? Push-to-Talk Switch
? Compatible with GAI-TRONICS' EZ Page
? Power 120 VAC and 12 VDC
? Option for Auxiliary Microphone
? Option for Auxiliary Footswitch
? Option for Remote Mounting of Speaker
GAI-TRONICS通信系統RigCom系列其他常用型號：
GAI-TRONICS 400-001
GAI-TRONICS 400-003
GAI-TRONICS 400-004
GAI-TRONICS 400-005
GAI-TRONICS 400-006
