NOVOTECHNIK傳感器TH1-42系列技術參數

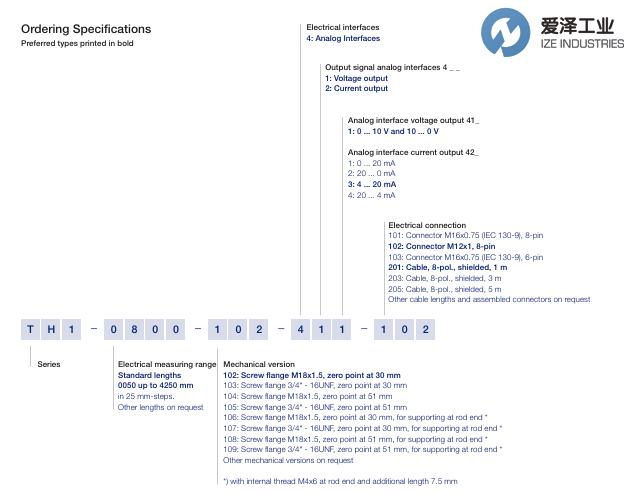

Type designations | TH1- _ _ _ _- _ _ _ - 42 _ - _ _ _ Current |
Electrical Data | |
Electrical measuring range (dimension L) | 0050 up to 4250 mm |
Output signal | 0.1 ... 20 mA (burden < 500 Ω) |
Number of channels | 1 |
Sampling rate / Update rate | < 750 mm: 2kHz, 750 ... < 2000 mm: 1 kHz, > 2000 mm: 05 kHz Extrapoliated to 16 kHz |
Resolution | 16 Bit |
Absolute linearity | ≤ ± 0.02 (min. ± 50 μm) % FS |
Tolerance of electr. zero point | ± 0.5 (min. 2 x reproducibility) mm |
Reproducibility | ≤ 0.03 % FS |
Hysteresis | ≤ 0.01 % FS |
Temperature error | ≤ 30 (min. 0,01 mm/K) ppm/K |
Supply voltage | 24 (19 ... 30) VDC |
Supply voltage ripple | ≤ 10 % Ub |
Current consumption | ≤ 100 mA |
Overvoltage protection | 40 (temporary / 1 min.) VDC |
Polarity protection | Yes, up to supply voltage max. VDC |
Short circuit protection | Yes (outputs vs. GND and supply voltage max.) |
Insulation resistance (500 VDC) | ≥ 10 MΩ |
Environmental Data | |
MTTF (IEC 60050) | 291 Years |
EMC compatibility | EN 61000-4-2 Electrostatic discharges (ESD) 4 kV, 8 kV |
NOVOTECHNIK傳感器TH1系列介紹
這款高精度傳感器采用非接觸式磁致伸縮技術，實現機械解耦和無磨損位置測量。其測量長度可達 4250 mm。
可集成的耐壓桿式設計，配備被動式環形位置標記，可用于液壓缸內部。
壓力區域由法蘭上的 O 形圈密封。根據接口類型，最多可測量三個位置和速度。
特殊功能：
? 非接觸式磁致伸縮測量技術
? 可集成的棒式傳感器
? 帶環形位置標記的非接觸式位置檢測
? 無限的機械壽命
? 分辨率高達 1 μm，與長度無關
? 低溫度系數 <15 ppm/K
? 位置示教
? 對沖擊和振動不敏感
? 工作壓力高達 350 bar
? 防護等級 IP67 / IP68
? 接口：模擬量、SSI、脈沖、CANopen、IO-Link

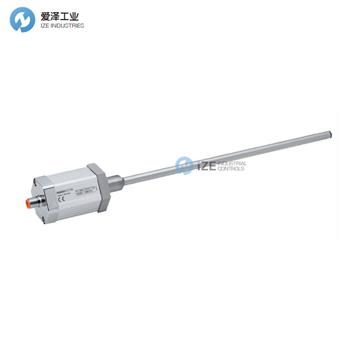

This high-precision sensor utilizes contactless magnetostrictive technology, achieving mechanical decoupling and wear-free position measurement. It covers measuring lengths up to 4250 mm.
The integrable, pressure-resistant rod design with a passive annular position marker allows for use inside hydraulic cylinders.
The pressure area is sealed by an O-ring on the flange. Depending on the interface, up to three positions and velocities can be measured.
Special features：
? Touchless magnetostrictive measurement technology
? Rod style transducer, integratable
? Non-contacting position detection with ring shaped position marker
? Unlimited mechanical life
? Resolution up to 1 μm, independently of length
? Low temperature coefficient <15 ppm/K
? Position-Teach-In
? Insensitive to shock and vibration
? Operating pressure up to 350 bar
? Protection class IP67 / IP68
? Interfaces: Analog, SSI, Impulse, CANopen, IO-Link
NOVOTECHNIK傳感器TH1-4系列選型
NOVOTECHNIK傳感器TH1系列其他常用型號：
NOVOTECHNIK TH1-1800-102-423-102
NOVOTECHNIK TH1-1800-102-411-102
NOVOTECHNIK TH1-1800-102-421-102
NOVOTECHNIK TH1-1800-102-411-101
NOVOTECHNIK TH1-1800-102-411-103
NOVOTECHNIK TH1-1800-102-421-104
NOVOTECHNIK TH1-1800-102-411-104
NOVOTECHNIK TH1-1800-102-421-105
NOVOTECHNIK TH1-1800-102-421-106
NOVOTECHNIK TH1-1800-102-421-107
NOVOTECHNIK TH1-0100-102-225-102
NOVOTECHNIK TH1-0200-102-225-102
