NOVOTECHNIK位移傳感器TH1 - _ _ _ _ - _ _ _ - 2_ _ - _ _ _ 系列技術參數
Type designations | TH1 - _ _ _ _ - _ _ _ - 2_ _ - _ _ _ | |
Electrical Data | ||
Electrical measuring range (dimension B) | 0050 up to 4250 | mm |
Absolute linearity | ≤ ± 10 μm ** up to 1000 mm | |
Tolerance of electrical zero point | ± 0.5 | mm |
Output signal | RS22 | |
Resolution | 1 or 5 μm (Other resolutions on request) | |
Reproducibility | ≤6 | % FS |
Hysteresis | ≤4 | % FS |
Supply voltage Ub | 24(13..34) | V |
Supply voltage ripple | ≤10 | % Vss |
Current consumption (w/o load) | ≤ 100 | mA |
Output update rate max. * | 16 | kHz |
Temperature coefficient | ≤15 (min. 0.01 mm/K) | ppm/K |
Overvoltage protection | 40 (permanent) | VDC |
Polarity protection | up to Umax | VDC |
Short circuit protection | 7 (pernanent) | VDC |
Insulation resistance (500 VDC) | ≥ 10 | mΩ |
Environmental Data | ||
Temperature range | -40... +85 | °C |
Storage temperature range | -40... +100 | °C |
Operating humidity range | 0..95 (non-condensingl | % R.H. |
Shock (IEC 60068-2-27) | 100(11 ms) | g |
Vibration (IEC 60068-2-6) | 20 (5.. .2000 Hz, Amax = 0.75 mm) | g |
Life | mechanically unlimited | |
Protection class (DIN EN 60529) | IP67 with fastened connector | |
Pressure rating |
|
|
Max. operating speed | 10 | m/s |
Max. operating acceleration | 200 | ms-2 |
EMC compatibility | EN 61000-4-2 electrostatic discharges (ESD) 4 kV, 8 kV | |
NOVOTECHNIK位移傳感器TH1系列介紹
TH1 線性傳感器采用 NOVOSTRICTIVE 非接觸式磁致伸縮技術，可直接、精確和絕對地測量線性位置，用于控制和顯示應用。
TH1 使用環形磁性位置標記，作為自由浮動元件沿著傳感桿移動。 這種非接觸式聯軸器無磨損，提供無限的機械壽命，并允許以任何速度移動位置標記。 行程長度可達 4250 mm。
特殊功能
? 桿式傳感器
? 工作壓力高達 350 巴
? NOVOSTRICTIVE 磁致伸縮非接觸式技術
? 無磨損——無限的機械壽命
? 同步串行接口 - 24/25 位，二進制/格雷碼
? 啟停脈沖接口 - 標準化為 2800 m/s
? 帶數據傳輸監控的 DyMoS 接口
? 高達 10 μm 的出色線性度
? 無論行程長度如何，分辨率高達 1 μm
? 低溫度系數

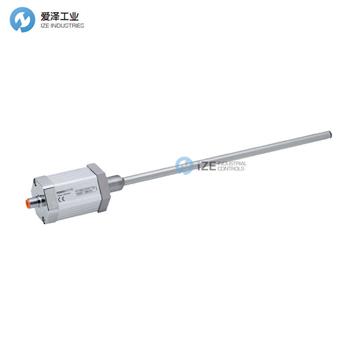

TH1 linear transducers employ NOVOSTRICTIVE touchless magnetostrictive technology for direct, precise and absolute measurement of linear position, for use in control and display applications.
The TH1 uses a ring-shaped magnetic position marker, which moves along the sensing rod as a free-floating element. This non-contact coupling is free of wear, providing unlimited mechanical lifetime, and allows the position marker to be moved at any velocity. Stroke lengths of up to 4250 mm are available.
Special features
? rod style transducer
? operating pressure up to 350 bar
? NOVOSTRICTIVE magnetostrictive touchless technology
? wear-free - unlimited mechanical life
? Synchronous Serial Interface - 24/25 bit, binary/gray code
? Start-Stop pulse interface - standardized to 2800 m/s
? DyMoS-interface with data transfer monitoring
? excellent linearity up to 10 μm
? resolution up to 1 μm regardless of stroke length
? low temperature coefficient

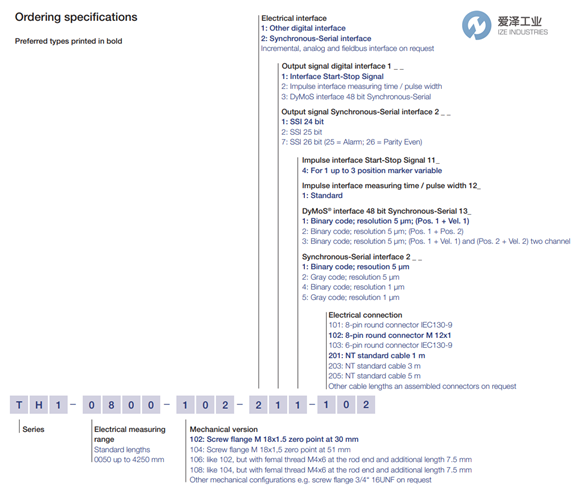

NOVOTECHNIK位移傳感器TH1系列選型
