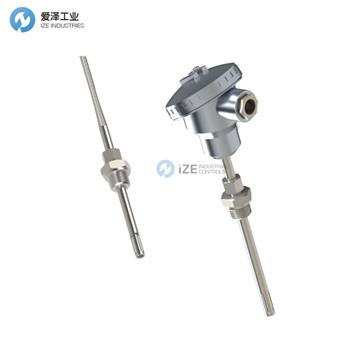

GRAFF溫度計LV-GF-7132.1.3-L.370.S.82.KK.450℃技術參數
Sensor Type: | Resistance thermometer 7132 |
Measuring System: | 1 x Pt 100 according to DIN EN 60751, class B-F in 3-wire circuit |
Dimensions: | |
Diameter: | 10 mm |
Measuring Sleeve: | slotted 4-way; Material: stainless steel |
Temp. Measuring Tip: | -50°C to +450°C |
Installation Length: | 370 mm |
Nominal Length: | 415 mm (+5/-0 mm) |
Connection: | |
Connection Type: | Connection head KK with screw cap; Material: die-cast aluminum |
GRAFF溫度計7132系列介紹
GRAFF GF-7132 系列溫度傳感器特別適用于塑料技術、制藥行業、發電廠技術、加熱和冷卻技術、化工廠和模具制造領域的工具、加熱塊、熱塊等的溫度測量。由于結合了高品質的材料，該系列產品沒有限制，帶穿孔保護管的版本還具有可以非常快速地記錄氣流溫度的優勢。與所有 GRAFF傳感器一樣，該系列也專門采用熱電纜而不是補償電纜制造。所有傳感器組件主要由高品質不銹鋼 1.4571 制成。該傳感器標準配置為焊接或絕緣版本。由于內部測量系統封閉，該傳感器也可以在潮濕環境中使用。合適的夾緊配件已包含在交付范圍內。不同類型的電纜完善了該產品。
GRAFF temperature sensors of the GF-7132 series are particularly suitable for use in temperature measurement on tools, heating blocks, thermoblocks, etc. from the fields of plastics technology, the pharmaceutical industry, power plant technology, heating and cooling technology, chemical plants and mold making. Due to the combination of high-quality
materials, there are no limits to this series, and the version with a perforated protective tube also offers the advantage that air flow temperatures can be recorded very quickly. As with all GRAFF sensors, this series is also manufactured exclusively with a thermal cable instead of a compensating cable. All sensor components are mainly made of high-quality stainless steel 1.4571. This sensor is available as standard in a welded or insulated version. Due to the closed internal measuring system, this sensor can also be used in a damp environment. A suitable clamp fitting is already included in the scope of delivery. Different cable types complete this product.
GRAFF溫度計GF-7132系列其他常用型號：
GRAFF GF-7132.2.KL.A.3-L.EL
GRAFF GF-7132.2.KL.A.3-L.EL.1.3-L.250.S.82.KK
GRAFF GF-7140.1.Kl.A.4-L.8.80.-.KK
GRAFF GF-7132.2.4-L.500.S.82.BK
GRAFF LV-GF-7132.1.3-L.370.S.82.KK.450℃
GRAFF TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
