GRAFF溫度計GF-7132系列技術參數
TECHNICAL DETAILS | |
Core values | PT50/PT100/PT500/PT1000 |
Diameter | 6,0 mm – 10,00 mm in standard |
Form of the measuring tip | Perforated or outcutted |
Installation length | Min. 20mm up to max. 2000mm |
Material | Sensor completely made of stainless steel |
Process temp. at the measuring tip | Up to +600°C depending on version |
Process connection | Using a matching compression fitting |
High – quality cable types | Connection cables |
Connectivity | Connection head, free ends, plugs,special |
Special versions | Customized, on request |
GRAFF溫度計GF-7132系列介紹

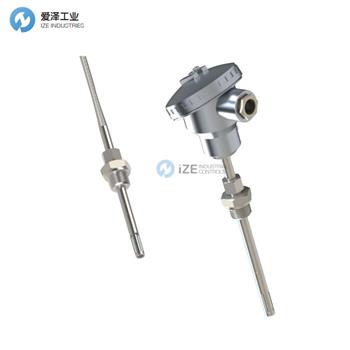

Gr?ff temperature sensors of the GF-7132 series are particularly suitable for use in temperature measurement on tools, heating blocks, thermoblocks, etc. from the fields of plastics technology, the pharmaceutical industry, power plant technology, heating and cooling technology, chemical plants and mold making. Due to the combination of high-quality materials, there are no limits to this series, and the version with a perforated protective tube also offers the advantage that air flow temperatures can be recorded very quickly. As with all Gr?ff sensors, this series is also manufactured exclusively with a thermal cable instead of a compensating cable. All sensor components are mainly made of high-quality stainless steel 1.4571. This sensor is available as standard in a welded or insulated version. Due to the closed internal measuring system, this sensor can also be used in a damp environment.
GF-7132 系列的 Gr?ff 溫度傳感器特別適用于塑料技術、制藥工業、電廠技術、加熱和冷卻技術、化工廠和 模具制作。 由于結合了優質材料，該系列沒有任何限制，帶有穿孔保護管的版本還具有可以非?？焖俚赜涗洑饬鳒囟鹊膬?yōu)勢。 與所有 Gr?ff 傳感器一樣，該系列也專門使用熱電纜而不是補償電纜制造。 所有傳感器元件主要由優質不銹鋼1.4571制成。 該傳感器標配焊接版或絕緣版。 由于采用封閉式內部測量系統，該傳感器也可以在潮濕環境中使用。
GRAFF溫度計其他常見型號：
GRAFF GF-7132.2.KL.A.3-L.EL
GRAFF GF-7132.2.KL.A.3-L.EL.1.3-L.250.S.82.KK
GRAFF GF-7140.1.Kl.A.4-L.8.80.-.KK
GRAFF GF-7132.2.4-L.500.S.82.BK
GRAFF Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRAFF溫度計GF-7132.2.KL.A.3-L.EL的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRAFF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GRAFF溫度計GF-7132系列GF-7132.2.KL.A.3-L.EL技術參數及介紹
