MICROE編碼器MII5000系列技術參數
Dimensions | 38.5 x 13.5 x 11 mm |
Interface, Digital | A quad B with index and limits |
Interface, Analog | - |
Interpolation | up to ×16,384 in the sensor |
Resolutions | 5 μm - 1.2 nm |
Accuracy Class, Linear Glass | up to +/- 1 μm |
Accuracy Class, Linear Metal Tape | up to +/- 5 μm/m |
Grating Pitch | 20 μm |
Max Speed | 5 m/s |
Operating Environment | Atmospheric |

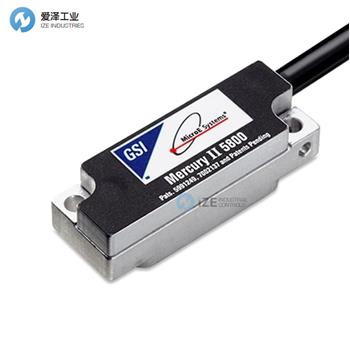

MICROE編碼器MII5000系列介紹
Mercury II的優質傳感器設計在緊湊的傳感器主體中實現了高達 1.2nm 的分辨率和高精度性能。
Mercury II 的編碼器技術實現了同類產品中最高分辨率和準確度，具有低循環誤差、低抖動、更小的傳感器和更低的功耗。
Mercury II的低循環誤差超過其他所有20μm編碼器。好處是線性電機、平臺和焊線機的速度控制更平滑；更精確、更快的線性定位。
可用的最小卷尺系統：僅6毫米寬，包括索引和限制 - 不到其他編碼器系統寬度的 1/2。
最寬的對準公差：Mercury II具有業內最寬的對準公差，整整+/-2 度，是相對最容易和相對最快對準設置的傳感器。可以在30秒內校準Mercury II傳感器。
內置或粘貼式光學索引和限位：訂購帶內置標記的膠帶或線性玻璃標尺以實現相對最快安裝，或在定長切割膠帶標尺上的任何位置安裝粘貼式索引和限位標記。
Mercury II’s advanced sensor design achieves resolutions up to 1.2nm and high accuracy performance in a compact sensor body.
Mercury II’s encoder technology achieves the highest resolution and accuracy in its class, with low cyclical error, low jitter, smaller sensors, and lower power consumption.
Mercury II’s low cyclical error surpasses every other 20μm encoder. The benefits are smoother velocity control for linear motors, stages and wire bonders; More precise, and faster linear positioning.
Smallest tape scale system available: only 6mm wide, including index and limits – less than 1/2 the width of other encoder systems.
Broadest Alignment Tolerances: With the broadest alignment tolerances in the industry, a full +/-2 degrees, Mercury II is the easiest and the fastest sensor to align and setup. You can align the Mercury II sensor in under 30 seconds.
Built-in or Stick-on Optical Index and Limits: Order tape or linear glass scales with built-in markers for fastest installation, or install stick-on index and limit markers anywhere on cut-to-length tape scales.
MICROE編碼器MII5000系列其他常用型號：
MICROE MII5810
MICROE MII5830
MICROE MII5850
MICROE encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICROE編碼器MII5810的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MICROE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
MICROE編碼器MII5000系列MII5810技術參數及選型
