MICROE編碼器MII5000系列技術參數
Dimensions | 38.5 x 13.5 x 11 mm |
Interface, Digital | A quad B with index and limits |
Interface, Analog | - |
Interpolation | up to ×16,384 in the sensor |
Resolutions | 5 ? - 1.2 nm |
Accuracy Class, Linear Glass | up to +/- 1 ? |
Accuracy Class, Linear Metal Tape | up to +/- 5 ?/m |
Grating Pitch | 20 ? |
Max Speed | 5 m/s |
Operating Environment | Atmospheric |
MICROE編碼器MII5000系列介紹
Mercury II的傳感器設計實現分辨率高達1.2nm和高精度性能在一個緊湊的傳感器體。
Mercury II的編碼器技術實現了同類產品中最高的分辨率和精度，具有低周期誤差，低抖動，較小的傳感器，和更低的功耗。
Mercury II的低周期誤差超過了所有其他的20μm編碼器。其優點是直線電機、級和鋼絲合器的速度控制；更精確，更快的線性定位。
可用的最小磁帶比例系統：只有6mm寬，包括索引和限制-小于其他編碼器系統寬度的1/2。
最寬的對準公差：具有行業中最寬的對準公差，全+/-2度，汞II是最容易和最快的傳感器對齊和設置。你可以在30秒內對齊水星II傳感器。
內置或粘貼的光學索引和限制：訂購磁帶或線性玻璃秤，以最快地安裝，或在膠帶的任何地方安裝粘貼的索引和限制標記。

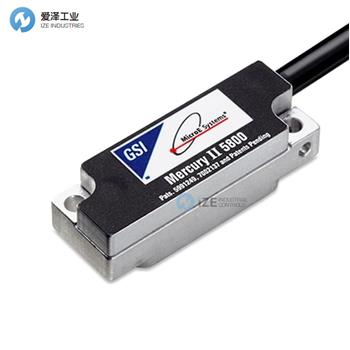

Mercury II’s advanced sensor design achieves resolutions up to 1.2nm and high accuracy performance in a compact sensor body.
Mercury II’s encoder technology achieves the highest resolution and accuracy in its class, with low cyclical error, low jitter, smaller sensors, and lower power consumption.
Mercury II’s low cyclical error surpasses every other 20μm encoder. The benefits are smoother velocity control for linear motors, stages and wire bonders; More precise, and faster linear positioning.
Smallest tape scale system available: only 6mm wide, including index and limits – less than 1/2 the width of other encoder systems.
Broadest Alignment Tolerances: With the broadest alignment tolerances in the industry, a full +/-2 degrees, Mercury II is the easiest and the fastest sensor to align and setup. You can align the Mercury II sensor in under 30 seconds.
Built-in or Stick-on Optical Index and Limits: Order tape or linear glass scales with built-in markers for fastest installation, or install stick-on index and limit markers anywhere on cut-to-length tape scales.
MICROE編碼器MII5000系列其他常用型號：
MICROE MII5510
MICROE MII5530
MICROE MII5550
MICROE MII5810
MICROE MII5830
MICROE MII5850
MICROE M1510-40
MICROE M1510H-40
MICROE MERCURY 5500-200
