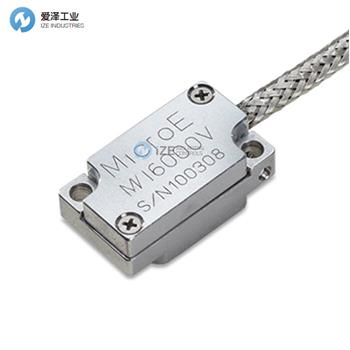

MICROE編碼器MII6000V技術參數
SPECIFICATION | VALUE |
Dimensions | 22.6 x 12.7 x 8.1 mm |
Interface, Digital | A quad B with index and limits |
Interface, Analog | - |
Interpolation | up to ×16,384 in the connector |
Resolutions | 5 μm - 1.2 nm |
Accuracy Class, Linear Glass | up to +/- 1 μm |
Grating Pitch | 20 μm |
Max Speed | 5 m/s |
Operating Environment | Vacuum up to 10^-8 |
MICROE編碼器Mercury II系列介紹
Mercury II 數字輸出高真空額定編碼器提供一流的分辨率、精度和小傳感器尺寸。憑借 MicroE 廣泛的對準公差，沒有其他商用 10-8 Torr 額定編碼器更易于對準、更易于使用或更易于集成到設計中。
MII 6000V 傳感器采用真空兼容材料進行排氣和構造，設計用于在 150°C 下烘烤 48 小時。
Mercury II 的編碼器技術實現了同類產品中最高分辨率和準確度，具有低循環誤差、低抖動、更小的傳感器和更低的功耗。
Mercury II 的低循環誤差超過其他所有 20μm 編碼器。好處是線性電機、平臺和焊線機的速度控制更平滑；更精確、更快的線性定位。
可用的最小刻度系統：僅 6 毫米寬，包括索引和限制 - 不到其他編碼器系統寬度的 1/2。
最寬的對準公差：Mercury II 具有業內最寬的對準公差，整整 +/-2 度，是最容易和最快對準和設置的傳感器。您可以在 30 秒內校準 Mercury II 傳感器。
內置光學指數和極限：訂購帶有內置標記的線性玻璃秤，以便快速安裝。
Mercury II digital output high-vacuum rated encoders offer class-leading resolution, accuracy, and small sensor size. With MicroE’s broad alignment tolerances, no other commercially available 10-8 Torr rated encoder is easier to align, easier to use, or easier to integrate into your designs.
The MII 6000V sensor is vented and constructed with vacuum compatible materials and designed for a 48 hour bake out at 150°C.
Mercury II’s encoder technology achieves the highest resolution and accuracy in its class, with low cyclical error, low jitter, smaller sensors, and lower power consumption.
Mercury II’s low cyclical error surpasses every other 20μm encoder. The benefits are smoother velocity control for linear motors, stages and wire bonders; More precise, and faster linear positioning.
Smallest scale system available: only 6mm wide, including index and limits – less than 1/2 the width of other encoder systems.
Broadest Alignment Tolerances: With the broadest alignment tolerances in the industry, a full +/-2 degrees, Mercury II is the easiest and the fastest sensor to align and setup. You can align the Mercury II sensor in under 30 seconds.
Built-in Optical Index and Limits: Order linear glass scales with built-in markers for fast installation.
MICROE編碼器Mercury II系列其他常用型號：
MICROE M1000V
MICROE M1500V
MICROE MII6000V
