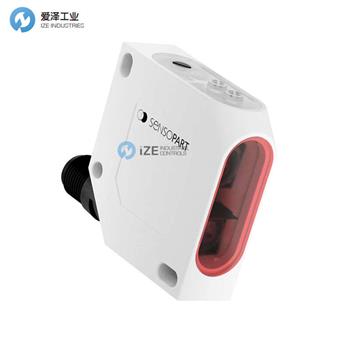

SENSOPART傳感器FT50 RLA 220-S1L8技術參數
Product data | |
Linearity [mm] | 0.75 |
Sensor principle | Distance sensor with triangulation |
Series | F50 (50 x 50 x 17 mm) |
Working distance min. [mm] | 80 |
Working distance max. [mm] | 300 |
Velocity [Hz] | 1000 |
Interface | RS485 |
Type | Cubic |
Light source | Laser, red (Class 1) |
Switching output | PNP |
Amount of swithing outputs | 2 |
Resolution [mm] | 0.3 |
Repeatability [mm] | 0.2 |
Temperature range [°C] | -10 ... +60 |
Temperature drift [%] | 0,02% |
Measurement output | RS485, Analog (current) |
Connection type | Plug M12, 8-pin |
Enclosure rating | IP 67 |
SENSOPART傳感器FT50 RLA 220-S1L8產品特征
很大程度上獨立于目標物體的反射率（高反射和光澤物體）
高分辨率
快速響應時間
2個開關輸出，1個模擬輸出4 ... 20 mA
長期穩定性和低溫效應高
Largely independent of target object reflectivity (highly reflective and glossy objects)
High resolution
Rapid response time
2 switching outputs, 1 analogue output 4 ... 20 mA
High long-term stability and low temperature effects
SENSOPART傳感器FT50系列其他常用型號：
SENSOPART FT50 RLA-20-F-L4S
SENSOPART FT50 RLA-20-S-L4S
SENSOPART FT50 RLA-20-F-K5
SENSOPART FT50 RLA-20-S-K5
SENSOPART FT50 RLA-40-F-L4S
SENSOPART FT50 RLA-40-S-L4S
SENSOPART FT50 RLA-40-F-K5
SENSOPART FT50 RLA-40-S-K5
SENSOPART FT50 RLA-70-PL5
SENSOPART FT50 RLA-100-PL5
SENSOPART FT50 RLA-220-PL5
SENSOPART FT50 RLA-70-L8
SENSOPART FT50 RLA-70-S1L8
SENSOPART FT50 RLA-100-S1L8
SENSOPART FT50 RLA-220-L8
SENSOPART FT50 RLA-220-S1L8
SENSOPART FT50 RLA-70-PL5
SENSOPART FT50 RLA-100-PL5
SENSOPART FT50 RLA-220-PL5
SENSOPART Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENSOPART傳感器FT50 RLA 220-S1L8的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENSOPART products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SENSOPART傳感器FT50 RLA 220-S1L8技術參數及特點
