SENSOPART傳感器FT 25-RHD-PS-M4技術規格
Product data | |
Sensor principle | Photoelectric diffuse sensor with Background Suppression |
Velocity [Hz] | 1000 |
Adjustment | Teach-in |
Light source | LED, red |
Series | F25 (34 x 20 x 12 mm) |
Working distance min. [mm] | 3 |
Working distance max. [mm] | 400 |
Switching output | PNP |
Temperature range [°C] | -20 ... +60 |
Connection type | Plug M8, 4-pin |
Enclosure rating | IP69K |
SENSOPART傳感器FT 25-RHD-PS-M4產品介紹
可精確調節的背景抑制
400 mm 長掃描距離，外殼小巧緊湊
得益于 SensoPart ASIC 技術，即使在高反射背景下也能可靠運行
光斑清晰可見，校準簡單
堅固的玻璃纖維增強塑料外殼
彈性激光打印
Precisely adjustable background suppression
Long scanning distance of 400 mm with small and compact housings
Reliable operation even with highly reflective backgrounds, thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Robust glass-fibre-reinforced plastic housings
Resilient laser printing

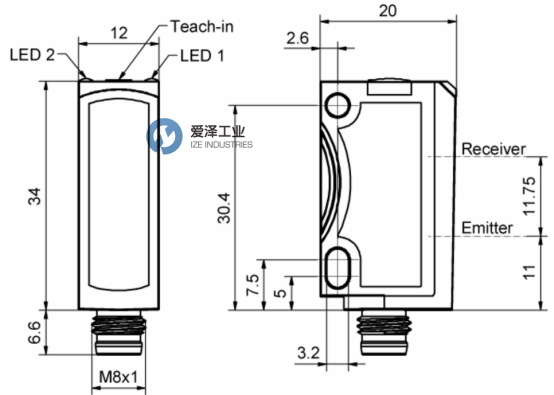

SENSOPART傳感器FT 25-RHD-PS-M4技術尺寸
SENSOPART傳感器FT 25-RHD系列其他常用型號：
SENSOPART FT 25-RHD-PNS-M4M
SENSOPART FT 25-RHD-NS-KL4
SENSOPART FT 25-RHD-PS-KL4
SENSOPART FT 25-RHD-NS-KM4
SENSOPART FT 25-RHD-PS-KM4
SENSOPART FT 25-RHD-NS-K4
SENSOPART FT 25-RHD-PS-K4
SENSOPART FT 25-RHD-NS-M4M
SENSOPART FT 25-RHD-PS-M4M
SENSOPART FT 25-RHD-PS-M3M
SENSOPART FT 25-RHD-NS-M4
SENSOPART FT 25-RHD-PS-M4
