CEMB振動變送器TR-26系列技術參數
TECHNICAL CHARACTERISTICS | |
Composition | AISI 316L stainless steel body |
Power supply | 24 Vdc (10 ÷ 35 Vdc) current loop 4 ÷ 20 mA (2 wires) |
External connections | MIL-C-5015 2 poles connector (conductors max section 2,5 mm2) |
Environmental | - 60°C ÷ + 120°C |
Measure type | omnidirectional seismic (absolute vibration) |
Application axis | any |
Dynamic field | ± 18 g |
Transverse sensitivity | < 5 % |
Linearity | ± 2% - 75 Hz |
Dynamic performances | ±3% / 10Hz-1kHz |
Insulation | ≥108 Ω between signal and container |
Maintenance | no maintenance is needed |
Electrical connections | bipolar shielded cable |
Mounting torque | 5÷10 N-m |
CEMB振動變送器TR-26系列介紹
集成變送器 TR-26 可測量任何旋轉機器支架的絕對振動,并且能夠通過 2 線技術(電流環路 4 ÷ 20 mA)直接連接到采集系統(PLC 或 DCS)。
變送器直接固定在機器上,產生與振動速度或加速度成比例的電信號(4 ÷ 20 mA)。變送器由 AISI 316L 機身制成,帶有機器連接螺紋;通過 MIL-C-5015-2 極連接器與采集系統連接。

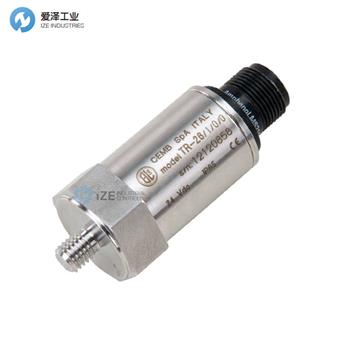

The integrated transmitter TR-26 measures the absolute vibrations of any rotating machine support and it is able to interface directly in 2 wires technique (current loop 4 ÷ 20 mA) to an acquisition system (PLC or DCS).
The transmitter, secured directly on machinery, generates an electric signal (4÷20 mA) which is proportional respectively to vibration velocity or acceleration. The transmitter is made of an AISI 316L body with machine connection thread; the connection to the acquisition system is effected by means of a MIL-C-5015-2 poles connector.

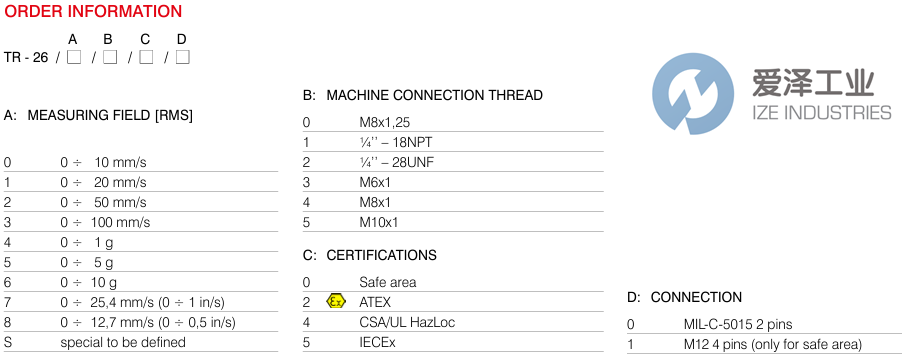

CEMB振動變送器TR-26系列選型
CEMB振動變送器TR-26系列其他常用型號:
CEMB TR-26/1/0/2/0
CEMB TR-26/1/0/0
CEMB TR-26/1/0/0/1
CEMB TR-26/2/0/0/0
CEMB TR-26/0/012/0
CEMB VIBRATION TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
