CEMB振動發射器TR-26/1/0/2/0規格描述
TR - 26 | |
MEASURING FIELD [RMS] | 1:0 ÷ 20 mm/s |
MACHINE CONNECTION THREAD | 0:M8x1,25 |
CERTIFICATIONS | 2:ATEX |
CONNECTION | 0:MIL-C-5015 2 pins |
CEMB振動發射器TR-26系列產品介紹

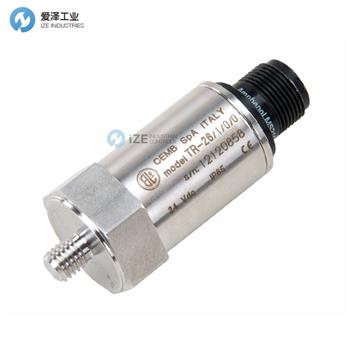

TR-26 Vibration Transmitter4-20mA Absolute vibration transmitter IP65 SS316 body with onboard 2 pin connector for machinery online monitoring
The integrated vibration transmitter TR-26 measures the absolute vibrations of any rotating machine support
The transmitter, secured directly on machinery, generates an electric signal (4÷20 mA) which is proportional respectively to vibration velocity or acceleration.The transmitter is made of an AISI 316L body with machine connection thread; the connection to the acquisition system is effected by means of a MIL-C-5015-2 poles connector.
NOTE: The transmitter is available in different configuration versions and does not need any set-up or maintenance.
The transmitter is certificate SIL 2 for functional safety
TR-26振動發射器4-20mA絕對振動發射器IP65 SS316本體,帶有板載2針連接器,用于機械在線監測
集成的振動發射器TR-26可測量任何旋轉機器支架的絕對振動
變送器直接固定在機械上,會產生與振動速度或加速度成比例的電信號(4÷20 mA)。變送器由AISI 316L主體制成,并帶有機器連接螺紋; 與采集系統的連接是通過MIL-C-5015-2極連接器實現的。
注意:變送器有不同的配置版本,不需要任何設置或維護。
變送器具有SIL 2證書,功能安全
CEMB振動發射器TR-26系列其他常用型號:
CEMB TR-26/1/0/2/0
CEMB TR-26
CEMB TR-26/1/0/0
CEMB vibration transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體,代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CEMB振動發射器TR-26/1/0/2/0的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for CEMB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CEMB振動發射器TR-26/1/0/2/0技術數據
