AUTOMATION DIRECT傳感器AES-AP-1F產品參數
Specification | |
Item | Proximity sensor |
Sensor Type | Inductive |
Shape | Tubular |
Housing Size | 8mm diameter x 29.4mm body |
Housing Material | Stainless steel |
Barrel Type | Threaded |
Sensing Method | Standard sensing |
Adjustable | No |
Number of Wires | 3 |
Switching Output | PNP |
Operation Mode | N.O. output |
Sensing Distance | 1.5mm |
Mounting Type | Flush |
IO-Link Compatible | No |
Switching Frequency | 7 kHz |
Operating Voltage | 10-30 VDC |
IP Rating | IP67 |
Connection | 3-pin M8 quick-disconnect |
Includes | Mounting hardware |
Additional Information | Purchase cable separately |
AUTOMATION DIRECT傳感器AES-AP-1F產品介紹
電感式接近傳感器,管狀,直徑8mm x 29.4mm,不銹鋼外殼,PNP,NO輸出,1.5mm感應距離,齊平,開關頻率7 kHz,IP67,3針M8快速斷開。
微型M8(8mm)不銹鋼-DC
16種
8mm螺紋桶
1.5毫米(標準)和2毫米(擴展)的感應距離
不銹鋼結構
10至30 VDC工作電壓
NPN和PNP,NO或NC輸出
全面的過載保護
防護等級IP67
黃色輸出LED 360度可見
2m軸向電纜,M8快速斷開
隨附兩個M8安裝螺母

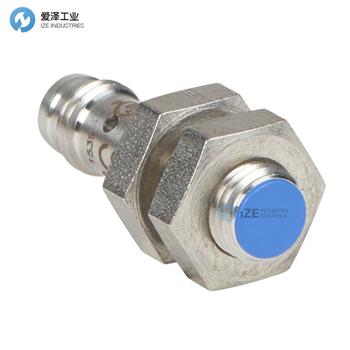

Inductive proximity sensor, tubular, 8mm diameter x 29.4mm body, stainless steel housing, PNP, N.O. output, 1.5mm sensing distance, flush, 7 kHz switching frequency, IP67, 3-pin M8 quick-disconnect.
Miniature M8 (8mm) stainless steel - DC
16 models
8mm threaded barrel
1.5 mm (standard) and 2mm (extended) sensing distances
Stainless steel construction
10 to 30 VDC operating voltage
NPN and PNP, N.O. or N.C. output
Complete overload protection
IP67 rated
Yellow output LED 360 degree visible
2m axial cable, M8 quick-disconnect
Two M8 mounting nuts included
