AUTOMATION DIRECT傳感器AE1-AP-1H產品參數
Specification | |
Item | Proximity sensor |
Sensor Type | Inductive |
Shape | Tubular |
Housing Size | 8mm diameter x 60mm body |
Housing Material | Nickel-plated brass |
Barrel Type | Threaded |
Sensing Method | Standard sensing |
Adjustable | No |
Number of Wires | 3 |
Switching Output | PNP |
Operation Mode | N.O. output |
Sensing Distance | 1.5mm |
Mounting Type | Flush |
IO-Link Compatible | No |
Switching Frequency | 3 kHz |
Operating Voltage | 10-30 VDC |
IP Rating | IP67 |
Connection | 4-pin M12 quick-disconnect |
Includes | Mounting hardware |
AUTOMATION DIRECT傳感器AE1-AP-1H產品介紹
電感式接近傳感器，管狀，直徑8mm x 60mm，鍍鎳黃銅外殼，PNP，NO輸出，1.5mm感應距離，齊平，3 kHz開關頻率，IP67，4針M12快速斷開。
8mm圓形金屬直流傳感器
具有成本效益的接近開關，適用于狹小空間應用。
24種標準體長傳感器型號（AE1系列）
8種短身傳感器型號（AE6系列）
8mm螺紋桶
1.5毫米（屏蔽）和2.5毫米（非屏蔽）標準感應距離
2mm（屏蔽）和4mm（非屏蔽）擴展的感應距離
3mm（屏蔽）三重感應距離
緊湊的金屬外殼
全面的過載保護
IEC IP67防護等級
LED狀態指示器在圓柱體周圍360度可見
NPN和PNP，無輸出
2m軸向電纜，M8或M12快速斷開
隨附兩個M8安裝螺母

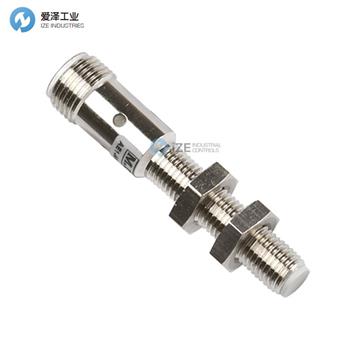

Inductive proximity sensor, tubular, 8mm diameter x 60mm body, nickel-plated brass housing, PNP, N.O. output, 1.5mm sensing distance, flush, 3 kHz switching frequency, IP67, 4-pin M12 quick-disconnect.
8mm Round Metal DC Sensors
Cost-effective proximity switches for tight space applications.
24 standard body length sensor models (AE1 Series)
8 short body length sensor models (AE6 Series)
8mm threaded barrel
1.5 mm (shielded) and 2.5 mm (unshielded) standard sensing distances
2mm (shielded) and 4mm (unshielded) extended sensing distances
3mm (shielded) triple sensing distance
Compact metal housing
Complete overload protection
IEC IP67 protection rating
LED status indicators are visible 360 degrees around the cylinder
NPN and PNP, N.O. output
2m axial cable, M8 or M12 quick-disconnect
Two M8 mounting nuts included
AUTOMATION DIRECT傳感器AE1-AP-1H其他常見型號：
AUTOMATION DIRECT AE1-AN-1A
AUTOMATION DIRECT AE1-AP-1A
AUTOMATION DIRECT AE1-AN-1H
AUTOMATION DIRECT AE1-AP-1H
AUTOMATION DIRECT AE1-AN-1F
AUTOMATION DIRECT AE1-AP-1F
AUTOMATION DIRECT AE1-AN-2A
AUTOMATION DIRECT AE1-AP-2A
AUTOMATION DIRECT AE1-AN-2H
AUTOMATION DIRECT AE1-AP-2H
AUTOMATION DIRECT AE1-AN-2F
AUTOMATION DIRECT AE1-AP-2F
