NUFLO流量分析儀MC-III WP產品參數
Specifications | |
Hazardous Location Certification | CSA-approved for US and Canada Class I, Div. 2, Groups A, B, C, and D Rated for Internal Pollution Degree 2 CSA/UL Type 4 Enclosure (Ingress Protection) T5 Temperature Class |
System Power | Internal power supply ? 3.6 VDC, D-size lithium battery (2-year typical life) ? alkaline battery holder containing 3 D-size batteries
External power supply (6 to 30 VDC at 6 mA) with internal battery backup (reverse polarity protected)
Loop-powered (4-20 mA) with internal battery backup (reverse polarity protected) Loop power: 8 to 30 VDC Load resistance: 1100 ohms @ 30 VDC 200 ohms @ 12 VDC |
Operating Temperature | Lithium-Powered: -40°C to 70°C (-40°F to 158°F) Alkaline-Powered: -18°C to 55°C (0°F to 130°F) LCD contrast is reduced below -20°C (-4°F) |
Environmental | Humidity: 0 to 90% non-condensing Altitude: Up to 2000 m, maximum |
Enclosure | Molded fiberglass polyester, Lexan? polycarbonate viewing window 6.91 in. wide × 6.5 in. tall × 4.25 in. deep |
LCD Display | 8-digit Total (volume) display (7-segment characters) 6- digit Rate display (11-segment characters for easy-to-read prompts) 0.3” character height Adjustable contrast and update period User-selectable units of measurement (Total): ? Preprogrammed units: BBL, GAL, LIT, M3, CF, SCF, any unit x 1000 ? User-defined units User-selectable units of measurement (Rate): ? Preprogrammed units: BBL, GAL, LIT, M3, CF, SCF (per DAY, HR, MIN, SEC), any unit x 1000 (per DAY, HR, MIN, SEC) ? User-defined units |
Keypad | 6-key membrane switch |
Communications/ Archive Retrieval | RS-485 Modbus? communications with transfer speeds up to 115.2K (allows full download in less than 1 minute) |
Logging | 384 daily logs 768 hourly logs 345 event logs |
Inputs | Turbine Meter Input Configurable sensitivity adjustment via front panel Sensitivity adjustment range: 20 mV P-P to 40 mV P-P Frequency range: 0 to 3500 Hz
Remote Reset Input Optically-isolated input 3.0 to 30 VDC Pulse duration > 3 seconds to reset Pulse Input Optically-isolated input 3.0 to 30 VDC |
Outputs | Analog Output 4-20 mA, loop-powered (two-wire) 16-bit resolution Accuracy: 0.1% of full scale @ 25°C, 50 PPM/°C temperature drift Loop power: 8.0 to 30 VDC Zero and full-scale engineering values configurable from front panel
RS-485 Communications Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 and up to 115.2K
Volumetric Pulse Output Solid-state relay Output rating: 60 mA max. @ 30 VDC, on-state drop = 1.4 VDC @ 50 mA, 0.25 VDC @ 10 mA Configurable pulse width (duration): 10 to 60,000 ms
Amp & Square (Flowmeter Frequency) Output Open-drain transistor output of turbine meter input signal Output rating: 50 mA @ 30 VDC, on-state drop = 0.3 VDC @ 50 mA, 0.1 VDC @ 10 mA (Analog output and amp & square outputs cannot be used simultaneously.) |
Modbus | RTU mode Modbus? supports 16-bit and 32-bit holding registers. For more information, see Appendix C. |
Enron Modbus | Flow log parameters (time stamp, period total, period run time, and supply voltage) and download method are Enron-compatible. |
System Requirements | Operating System - Windows 2000 or later (Windows XP recommended) Computer/Processor - 1 GHz or faster Pentium-compatible CPU Memory - 128 MB of RAM Hard Disk Space - 21 MB for program files, 30 MB for Adobe Reader, adequate space for data files Drive - CD-ROM for install Display - 800 x 600 (SVGA), 16-bit (thousands of colors) color display or greater Browser - Internet Explorer 4 or later Internet Connection - for web links, tech support Communications Port - physical or virtual RS-232 compatible serial port |
NUFLO流量分析儀MC-III WP產品介紹
NuFlo MC-III WP流量分析儀在易于使用的防風雨累加器中囊括了全范圍的氣體和液體測量功能，高速性能以及日志歸檔和檢索功能?？梢詮膬x器正面的六鍵小鍵盤或動態界面軟件訪問常用的操作，從而可以快速輕松地校準和配置設備。
The NuFlo MC-III WP Flow Analyzer packs a full spectrum of gas and liquid measurement functionality, high-speed performance, and log archive and retrieval capabilities in an easy-to-use weatherproof totalizer. Commonly used operations can be accessed from the six-button keypad on the front of the instrument or from the dynamic interface software, allowing you to calibrate and configure the unit quickly and easily.

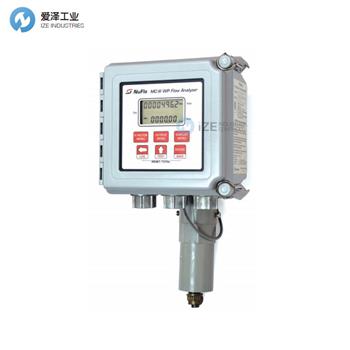

NUFLO流量分析儀MC-III WP
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件NUFLO 流量分析儀部分型號：
NUFLO MC-III WP
NUFLO MC-III EXP
NUFLO MC-III Panel Mount
NUFLO Flow Analyzer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NUFLO流量分析儀MC-III WP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NUFLO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
