NUFLO流量分析儀MC-III EXP產品參數
Specifications |
Electrical Safety | Approved by CSA for US and Canada |
Classification | Class I, Div. 1, Groups B, C, D (explosion-proof) Type 4 enclosure
T6 temperature class
Approved by SIRA to ATEX 10ATEX 1264X IECEx SIR10.0127X
E II 2 GD
Ex d IIC T6 Gb (-40°C to 70°C) or Ex tD A21 IP66 T85°C (-40°C to 70°C) |
System Power | Internal power supply
?3.6 VDC, D-size lithium battery (2-year typical life)
?Alkaline battery pack containing 3 C-size industrial-grade batteries (CSA only)
External power supply (6 to 30 VDC) with internal battery backup (reverse polarity protected)
Loop-powered (4-20 mA) with internal battery backup (reverse polarity protected)
Loop power: 8 to 30 VDC
Load resistance: 1100 ohms @ 30 VDC; 200 ohms @ 12 VDC |
Operating Temperature | Lithium-Powered: -40°C to 70°C (-40°F to 158°F)
Alkaline-Powered (CSA only): -18°C to 55°C (0°F to 130°F) LCD contrast is reduced below -20°C (-4°F) |
LCD Display | 8-digit Total (volume) display (7-segment characters)
6-digit Rate display (11-segment characters for easy-to-read prompts) 0.3” character height
Adjustable contrast and update period
User-selectable units of measurement (Total):
?Preprogrammed units: BBL, GAL, LIT, M3, CF, SCF, any unit x 1000
?User-defined units
User-selectable units of measurement (Rate):
?Preprogrammed units: BBL, GAL, LIT, M3, CF, SCF (per DAY, HR, MIN, SEC), any unit x 1000 (per DAY, HR, MIN, SEC)
?User-defined units |
Keypad | 6-key membrane switch |
Communications/ Archive Retrieval | RS-485 Modbus? communications with transfer speeds up to 115.2K (allows full download in less than 1 minute) |
Logging | 384 daily logs
768 hourly logs
345 event logs |
Inputs | Turbine Meter Input
Configurable sensitivity adjustment via front panel Sensitivity adjustment range: 20 mV P-P to 40 mV P-P Frequency range: 0 to 3500 Hz
Remote Reset Input Optically isolated
3.0 to 30 VDC
Pulse duration > 3 seconds to reset
Explosion-Proof Reset Switch (option)
Press and hold > 3 seconds, then release to reset total
Press and hold < 1 second, then release to view daily log data
Pulse Input Optically isolated
3.0 to 30 VDC
Frequency range: 0 to 3500 Hz |
Outputs | Analog Output
4-20 mA, loop-powered (two-wire) 16-bit resolution
Accuracy: 0.1% of full scale @ 25°C, 50 PPM/°C temperature drift Loop power: 8.0 to 30 VDC
Zero and full-scale engineering values configurable from front panel
RS-485 Communications
Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 and up to 115.2K
Volumetric Pulse Output Solid-state relay
Output rating: 60 mA max. @ 30 VDC, on-state drop = 1.4 VDC @ 50 mA,
0.25 VDC @ 10 mA
Configurable pulse width (duration): 10 to 60,000 ms
Amp & Square (Flowmeter Frequency) Output
Open-drain transistor output of turbine meter input signal
Output rating: 50 mA @ 30 VDC, on-state drop = 0.3 VDC @ 50 mA,
0.1 VDC @ 10 mA
(Analog output and amp & square outputs cannot be used simultaneously.) |
Modbus | RTU mode Modbus? supports 16-bit and 32-bit holding registers. For more information |
Enron Modbus | Flow log parameters (time stamp, period total, period run time, and supply voltage) and download method are Enron-compatible. |
System Requirements | Operating System - Windows XP, Windows Vista?, or Windows 7
Computer/Processor - 1 GHz or faster Pentium-compatible CPU Memory - 128 MB of RAM
Hard Disk Space - 21 MB for program files, 30 MB for Adobe Reader, adequate space for data files
Drive - CD-ROM for install
Display - 800 x 600 (SVGA), 16-bit (thousands of colors) color display or greater
Browser - Internet Explorer 6 or later
Internet Connection - for web links, tech support
Communications Port - physical or virtual RS-232 compatible serial port |
愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。
NUFLO流量分析儀MC-III EXP產品介紹
NuFlo MC-III EXP流量分析儀在易于使用的防爆累加器中提供了全系列的氣體和液體測量功能，高速性能以及日志歸檔和檢索功能?？梢詮膬x器正面的六鍵小鍵盤或動態界面軟件訪問常用的操作，從而可以快速輕松地校準和配置設備。
The NuFlo MC-III EXP Flow Analyzer packs a full spectrum of gas and liquid measurement functionality, high-speed performance, and log archive and retrieval capabilities in an easy-to-use, explosionproof totalizer. Commonly used operations can be accessed from the six-button keypad on the front of the instrument or from the dynamic interface software, allowing you to calibrate and configure the unit quickly and easily.

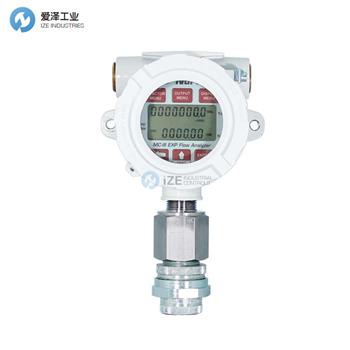

NUFLO流量分析儀MC-III EXP
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件NUFLO 流量分析儀部分型號：
NUFLO MC-III WP
NUFLO MC-III EXP
NUFLO MC-III Panel Mount
NUFLO Flow Analyzer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NUFLO流量分析儀MC-III EXP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NUFLO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
