FTI流量計FT系列技術參數
Specifications | |
Calibration accuracy | ±0.05% of reading, traceable to NIST |
Repeatability | ±0.05% of reading |
Linearity | ±0.10% with linearizing electronics |
Response time | 3-4mS typical |
Housing material | 316 stainless steel, standard |
Rotor material | 430F stainless steel, standard |
Temperature range | -450 to 750°F, dependent on bear- ing and pickoff |
Operating pressure | Up to 30,000PSIG, dependent on fitting |
Ball bearing material | 440C stainless steel or equivalent, Ceramic |
Journal bearing material | Ceramic, tungsten carbide, graphite |
Pickoffs | Modulated carrier and magnetic |
Straight Run | 10D upstream and 5D downstream minimum |
Recommended filtration | Ball bearings: 10 to 100 microns (less filtration with larger sizes) Journal bearings: 75 to 100 microns |
FTI流量計FT系列介紹

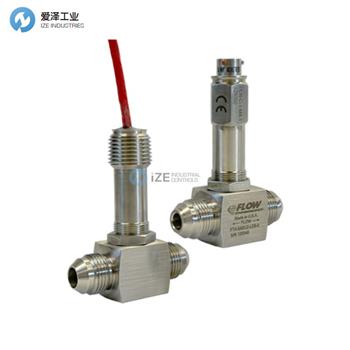

FT SERIES
Used in process applications and test & measurement applications.
FT Series turbine flow meters are used in a wide variety of applications. Some examples are automotive and aerospace test stands; subsea control systems; feedback and control systems on aeroderivative turbine generators; as well as general purpose industrial flow measurements. The full range of bearings, end connections, calibrations and electronics are available for this series making it the most versatile, capable of meeting a wide range of applications.
QUICK SPECS
Designed for a wide range of liquid and gas applications
Accuracy: ±0.25%
Repeatability: ±0.05% (liquid) and ±0.1% (gas) of reading.
Excellent speed of response
Linearity: ±0.1% (100:1) with linearizing electronics
Liquid Flow Rates: 0.03 to 1,500 GPM (0.11 to 5,677 LPM)
Gas Flow Rates: 0.09 to 1,500 ACFM (2.55 to 42,480 ALPM)
Materials of Construction: 316 SS housing and 430F SS rotor
End Fittings: NPT, AN (MS), Hose Barb, ANSI Flanges, SAE, Tri-Clamp
Max Pressures: 2000 Bar (30,000 psi), dependent on size and fitting
Custom engineered solutions available on request
Optional pressure port tap available
FT系列
用于過程應用和測試與測量應用。
FT 系列渦輪流量計具有多種應用。 一些例子包括汽車和航空航天試驗臺； 水下控制系統; 渦輪發電機反饋和控制系統； 以及通用工業流量測量。 該系列提供全系列軸承、端部連接、校準和電子設備，使其成為用途廣泛的產品，能夠滿足廣泛的應用需求。
簡要說明
設計用于廣泛的液體和氣體應用
精度：±0.25%
重復性：讀數的 ±0.05%（液體）和 ±0.1%（氣體）。
卓越的響應速度
線性度：±0.1% (100:1)，采用線性化電子器件
液體流量：0.03至1,500 GPM（0.11至5,677 LPM）
氣體流量：0.09至1,500 ACFM（2.55至42,480 ALPM）
結構材料： 316 不銹鋼外殼和 430F 不銹鋼轉子
端接頭：NPT、AN (MS)、軟管倒鉤、ANSI 法蘭、SAE、三夾式
最大壓力： 2000 Bar (30,000 psi)，取決于尺寸和配件
可根據要求提供定制設計的解決方案
提供可選的壓力端口龍頭
FTI流量計FT系列其他常用型號：
FTI FT4-8
FTI FT6-8
FTI FT8-8
FTI FT-08
FTI FT-10
FTI FT-12
FTI FT-16
FTI FT-20
FTI FT4-8AENBULEEH4
FTI FT-32
FTI FT-40
FTI FT-48
FTI FT-64
