FTI流量計FT-24技術參數
Series / Order Code | FT-24 |
End Fitting Nominal Inches | 11/2 |
ID (mm) | 34 |
Standard Range (A & H bearing codes) | |
Min ALPM | 425 |
Max ALPM | 4531 |
K Factor P/L | 21 |
Maximum Frequency Approx Frequ. | 1500 |

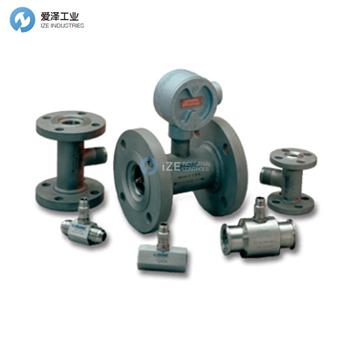

FTI流量計FT系列介紹
FT SERIES
Used in process applications and test & measurement applications.
FT Series turbine flow meters are used in a wide variety of applications. Some examples are automotive and aerospace test stands; subsea control systems; feedback and control systems on aeroderivative turbine generators; as well as general purpose industrial flow measurements. The full range of bearings, end connections, calibrations and electronics are available for this series making it the most versatile, capable of meeting a wide range of applications.
QUICK SPECS
Designed for a wide range of liquid and gas applications
Accuracy: ±0.25%
Repeatability: ±0.05% (liquid) and ±0.1% (gas) of reading.
Excellent speed of response
Linearity: ±0.1% (100:1) with linearizing electronics
Liquid Flow Rates: 0.03 to 1,500 GPM (0.11 to 5,677 LPM)
Gas Flow Rates: 0.09 to 1,500 ACFM (2.55 to 42,480 ALPM)
Materials of Construction: 316 SS housing and 430F SS rotor
End Fittings: NPT, AN (MS), Hose Barb, ANSI Flanges, SAE, Tri-Clamp
Max Pressures: 2000 Bar (30,000 psi), dependent on size and fitting
Custom engineered solutions available on request
Optional pressure port tap available
FT系列
用于過程應用和測試與測量應用。
FT 系列渦輪流量計具有多種應用。 一些例子包括汽車和航空航天試驗臺； 水下控制系統; 渦輪發電機反饋和控制系統； 以及通用工業流量測量。 該系列提供全系列軸承、端部連接、校準和電子設備，使其成為用途最廣泛的產品，能夠滿足廣泛的應用需求。
簡要說明
設計用于廣泛的液體和氣體應用
精度：±0.25%
重復性：讀數的 ±0.05%（液體）和 ±0.1%（氣體）。
卓越的響應速度
線性度：±0.1% (100:1)，采用線性化電子器件
液體流量：0.03至1,500 GPM（0.11至5,677 LPM）
氣體流量：0.09至1,500 ACFM（2.55至42,480 ALPM）
結構材料： 316 不銹鋼外殼和 430F 不銹鋼轉子
端接頭：NPT、AN (MS)、軟管倒鉤、ANSI 法蘭、SAE、三夾式
最大壓力： 2000 Bar (30,000 psi)，取決于尺寸和配件
可根據要求提供定制設計的解決方案
提供可選的壓力端口龍頭
FTI流量計FT系列其他常用型號：
FTI FT4-8
FTI FT6-8
FTI FT8-8
FTI FT-08
FTI FT-10
FTI FT-12
FTI FT-16
FTI FT-20
FTI FT-24
FTI FT-32
FTI FT-40
FTI FT-48
FTI FT-64
FTI FLOW flow meter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FTI流量計FT-24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FTI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
