OPTO-MATIC注油器相對于軸/軸承/擋油環旋轉的放置靈活性和條件（中英文）
Opto-Matic注油器相對于軸/軸承/擋油環旋轉的放置靈活性和條件
The Flexibility and Conditions for Opto-Matic Oiler Placement Relative to Shaft/Bearing/Flinger Rotation
傳統上，Opto-Matic 注油器相對于軸、軸承和擋油環旋轉方向的放置位置被認為是實現最佳性能的關鍵（圖 1）。然而，實際經驗和操作條件表明，只要考慮到某些因素，即使安裝在另一側，油器也能有效運行。本文探討了這種靈活性，同時承認需要對特定操作條件進行態勢感知。
簡介
雖然通常建議將 Opto-Matic 油器安裝在與旋轉方向一致的位置以獲得理想的性能，但應該強調的是，這并不是有效功能的絕對要求。在各種條件下，只要考慮到特定的操作因素，即使安裝在另一側，油器也能可靠地運行。

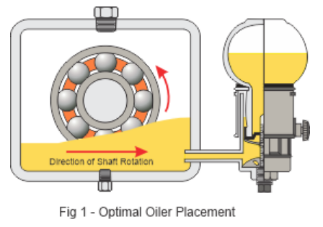

The placement of the Opto-Matic Oiler in relation to the direction of shaft, bearing, and flinger rotation is traditionally considered crucial for optimal performance (Fig.1). However, practical experience and operational conditions have shown that the oiler can function efficiently even when mounted on the opposite side, given certain considerations. This blog post explores this flexibility while acknowledging the need for situational awareness regarding specific operational conditions.
Introduction
While it is generally advised to mount the Opto-Matic Oiler in alignment with the direction of rotation for ideal performance, it should be highlighted that this is not an absolute requirement for effective functionality. Under various conditions, the oiler has been observed to perform reliably even when mounted on the opposite side, providing that specific operational factors are considered.
旋轉方向和注油器位置：平衡視角
The Direction of Rotation and Oiler Placement: A Balanced Perspective
理想位置與替代位置
盡管 Trico 的官方指南建議將注油器安裝在與旋轉方向相對應的軸承箱一側，但經驗表明，在特定條件下，安裝在相反側也可以成功運行。
運行條件：啟動和連續運行
當注油器放置在與旋轉方向相反的一側時，它會補償油膨脹（圖 2 - 注油器進料，注油器儲液器中可見氣泡），從而仍然充分保持油位（圖 3）。這種安裝位置的靈活性允許更廣泛的安裝選項，只要人們了解機器運行的具體條件即可。
設備關閉
即使關閉后，由于旋轉方向?qū)е碌娜魏斡臀簧叨紩谙麓螁訒r自動補償，只要人們了解這種行為并進行必要的操作調整即可。
Ideal vs. Alternative Placement
Though Trico's official guidelines recommend that the oiler be installed on the side of the bearing housing that corresponds with the rotation direction, experience shows that mounting on the opposite side can also result in successful operation, subject to certain conditions.
Operational Conditions: Startup and Continuous Operation

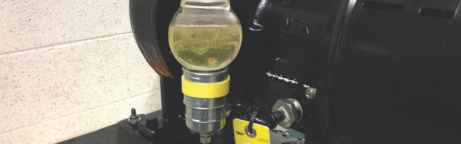

When the oiler is placed on the side opposite the direction of rotation, it compensates for the oil swell, (Fig. 2 - oiler feeding, air bubbles visible in oiler reservoir) thus still adequately maintaining the oil level (Fig. 3). This flexibility in mounting position allows for a broader range of installation options, provided one is aware of the specific conditions in which the machinery operates.
Equipment Shutdown
Even after shutdown, any elevated oil levels due to the direction of rotation are automatically compensated for at the next startup, provided one is aware of this behavior and makes necessary operational adjustments.
應對極端條件
Navigating Extreme Conditions
非理想放置的注意事項
當處理較小軸承座中的較大軸承、多個擋油環或較小注油器儲油器時，放置不當可能會帶來挑戰。但是，即使在這些極端情況下，也可以通過從軸承座底部安裝注油器來保持有效運行。
特殊情況：擋油環流量問題
在安裝擋油環的情況下，在另一側安裝仍然是可行的。擋油環引起的電流通常起到泵送作用，可以通過戰略性放置（底部安裝）和操作調整來減輕。
建議和結論
傳統的指導主張將 Opto-Matic 注油器與軸旋轉方向?qū)R，這是最佳實踐建議，但并非不可動搖的規則。當注油器安裝在另一側時，仍然可以實現有效運行，前提是人們始終對特定的操作條件和注意事項保持警惕。
這種更廣泛的理解為工業操作員和維護人員提供了更大的靈活性，特別是在復雜或受限的環境中。
Considerations for Non-Ideal Placement

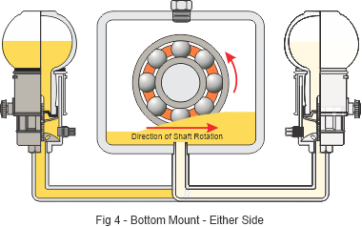

When dealing with larger bearings in smaller housings, multiple flingers, or smaller oiler reservoirs, improper placement may pose challenges. However, even in these extreme cases, effective operation can be maintained by mounting the oiler from the bottom of the bearing housing.
Special Cases: Flinger Flow Issues
In scenarios where flingers are installed, mounting on the opposite side can still be viable. The flinger-induced current, which typically acts as a pumping action, can be mitigated through strategic placement (bottom installation) and operational adjustments.
Recommendations and Conclusions
The traditional guidance advocating for alignment of the Opto-Matic Oiler with the direction of shaft rotation serves as a best-practice recommendation but is not an unyielding rule. Effective operation is still attainable when the oiler is mounted on the opposite side, given that one remains vigilant about specific operational conditions and considerations.
This broader understanding provides greater flexibility for industrial operators and maintenance personnel, particularly in complex or constrained environments.
