基礎篇——平衡閥介紹（中英文）
平衡閥控制和平衡流體系統（包括 HVAC 系統）中各個系統部分之間的流體流動。它有助于保持整個系統的流速和壓力正常。平衡閥確保每個分支和電路都能得到所需的流量。正確的選擇和安裝對于正常運行至關重要。它們平衡系統中的壓力，為結構內部提供所需的溫度。它跟大限度地降低了能源使用和維護成本。
平衡閥的功能是解決由系統內管線長度或壓力變化引起的流體流動問題。高度變化、機械損耗或系統不同部分或區域的不同需求都可能導致這些變化。
以下文章介紹了平衡閥的基礎知識。它介紹了平衡閥的工作原理、不同類型的平衡閥以及它們的通常使用方法。最后，它將解釋平衡閥的優點、應用和尺寸。
Balancing valves control and balance the fluid flow between various system sections in fluid systems, including HVAC systems. It helps keep the flow rates and pressures regular across the system. The balancing valve ensures that every branch and circuit gets what it needs. Correct selection and installation are vital for proper functioning. They balance the pressure in the system to provide the inside of the structure with the required temperature. It minimizes energy use and maintenance costs.
The function of a balancing valve is to fix any fluid flow problems caused by changes in line lengths or pressures within the system. Changes in elevations, mechanical losses, or different demands from different parts or zones of the system can all cause these changes.
The following article gives the basics of balance valves. It covers how it works, different types of balancing valves, and how they are usually used. In the end, it will explain the balancing valve’s advantages, applications, and size.
平衡閥如何工作？
HOW DOES A BALANCING VALVE WORK?
? 水力回路
Hydronic Circuits
HVAC 系統中液體的流動不斷變化。它隨著建筑物條件的變化而變化。如果用戶正確構建和設置 HVAC 系統，它們應該能夠在用戶需要的時間和地點為其提供所需的能量。
The flow of liquids in an HVAC system is constantly changing. It changed with changes in the building’s conditions. If user build and establish their HVAC systems correctly, they should be able to give users the correct energy when and where users need it.
? 不平衡系統
Unbalanced System
水會流向最順暢的地方。如果系統沒有調整，水可能會溢出或溢出。這可能會導致加熱或冷卻太少或太多。不同長度的管道產生的“阻力”確保泵的房間獲得更少的水。隨著管道變長、轉彎、變窄和重力，水頭損失會增加。
Water will flow where it gives it the least amount of trouble. If a system isn’t adjusted, it could underflow or overflow. This could cause too little or too much heating or cooling. The “resistances” by lines of different lengths ensure that rooms from the pump get less water. Head loss goes up as the pipe gets longer, turns, gets more narrow, and gravity.
? 平衡系統
Balanced System
平衡閥可為所有管線添加適當程度的“阻力”。這可確保系統將正確的流量和溫度分配到所有末端。它始終考慮設施的當前狀況。
Adding the right degree of “resistance” to all lines is done by balancing valves. This ensures the system distributes the correct flow and temperature to all ends. It is always taking into consideration the facility’s current conditions.
平衡閥的主要類型有哪些？
WHAT ARE THE MAIN TYPES OF BALANCING VALVE?

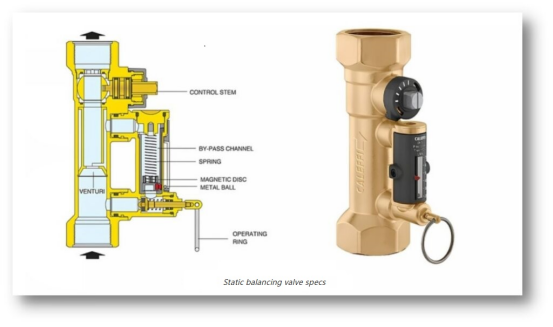

靜態平衡閥
STATIC BALANCING VALVES
靜態平衡閥也稱為數字鎖定平衡閥和手動平衡閥。靜態平衡閥不易受系統壓力變化的影響。相反，靜態平衡閥是需要手動調節的調節閥。這決定了閥門上的壓力下降。有助于獲得與設計一致的流量值。它由測試和平衡評估員提供，他們測量壓力損失并計算流量。它有助于調整閥孔。在安裝前確定這些閥門的設置后，這些設置在現場安裝期間會進行修改。系統運行時，內部閥門組件保持靜態。
這種手動操作可在滿載條件（設計負載）下保持平衡系統。但是，在這種條件下，它只有 2% 到 3% 的時間運行。但是，當動態稍微偏離時，系統就會變得不平衡。這種狀態會持續到系統重新評估和修改為止。
Static balancing valves are also called digital locking balancing valves and manual balancing valves. Static balancing valves are not susceptible to changes in system pressure. Instead, static balancing valves are modulating valves that require manual adjustment. This determines the pressure decrease across the valve. An assist in attaining flow values that align with the design. It is provided by a test and balance evaluator, who measures pressure loss and calculates flow. It helps to adjust valve holes. After determining the settings for these valves before installation, those settings are modified during field installation. Internal valve components remain static while the system is in operation.
This manual operation maintains a balanced system under full-load conditions (design load). However, it operates only 2% to 3% of the time under such conditions. However, the system becomes unbalanced when the dynamics deviate even slightly. This state persists until the system is reevaluated and modified.
靜態平衡閥的操作和安裝
Operation and Installation of Static Balancing Valve
靜態數字鎖定平衡閥由鎖定機構、開度指示器和小型壓力測量閥組成，便于流量測量。一旦為每個分支和用戶入口安裝適當?shù)臉?biāo)準平衡閥，只需使用一次專門的智能設備即可解決問題。鎖定后，系統的整體水量可以保持在可接受的范圍內。因此，“流量大，溫差小”的問題就解決了。
A static digital lock balance valve comprises a locking mechanism, an opening degree indicator, and a pressure measuring valve of a small design to facilitate flow measurement. Once the appropriate standard balance valve is installed for each branch and user inlet, only one use of a specialized smart device is required to correct the issue. After locking, the system’s overall water volume can be maintained within an acceptable range. Thus, the “l(fā)arge flow, small temperature difference” is overcome.
靜態平衡閥的主要優點
Main Advantage of Static Balancing Valves
環保：
Environmentally Friendly:
靜態平衡閥比自動閥消耗更少的能源和不可再生資源。
Static balancing valves use less energy and less non-renewable resources than automated valves.
靈敏：
Sensitive:
靜態平衡閥可精確測量低流量。
Static balancing valves precisely measure low flow rates.
直觀：
Intuitive:
當出現問題時，維護靜態平衡閥比維護自動閥更簡單。
Maintaining a static balancing valve is simpler when an issue arises than an automatic valve.
經濟高效：
Cost-effective:
靜態平衡閥比自動閥消耗更少的能源，有助于降低能源成本。
By consuming less energy than automatic valves, static balancing valves help reduce energy costs.

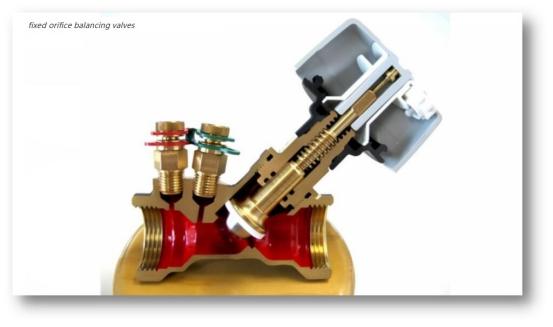

固定孔平衡閥
FIXED-ORIFICE BALANCING VALVES
它有一個固定的孔口，就像文丘里插入件一樣，還有壓力/溫度端口。這些端口允許測量該孔口兩端的壓力差。由于在調節閥門時開口保持不變，因此通過測量端口兩端的壓力降，很容易確定系統的流量。在啟動時，這種手動平衡閥效果更好。
It has a set orifice, like a Venturi insert, and pressure/temperature ports. These ports allow you to measure the difference in pressure across this orifice. Since the opening stays fixed while the valves are being adjusted, it is easy to determine the system’s flow rate by measuring the pressure drop across the ports. When launching, this kind of hand balance valve works better.
優點：
Advantages:
固定孔口設計比可變孔口設計更精確。它們也更容易設置，需要的連接更少，從而降低了安裝成本。
Fixed orifice designs are more accurate than variable orifice designs. They are also easier to set up and require fewer connections, which lowers the installation cost.

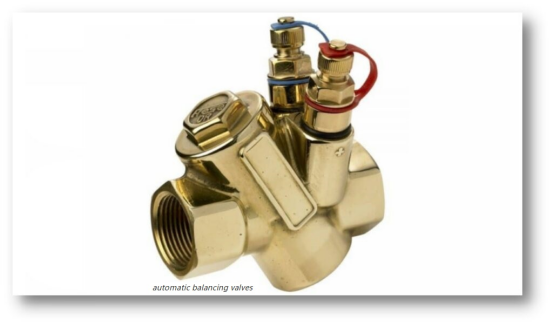

動態平衡閥
AUTOMATIC BALANCING VALVES
動態和壓力無關平衡閥是動態平衡閥的替代名稱。這些閥門旨在通過維持恒定的流量來優化系統運行。然而，壓差會發生變化。這些閥門在可變負載條件下比靜態平衡閥發揮更大的作用。它們的內部組件是可移動的，以補償壓差的變化。
通過調節閥門內的系統壓力變化，動態平衡閥在大多數負載條件下充當壓差調節器。這使它們更加用戶友好。
Dynamic and pressure-independent balancing valves are alternative names for automatic balancing valves. These valves aim to optimize system operation by sustaining a constant flow rate. However, variations in differential pressure. These valves function more under variable load conditions than static balancing valves. Their internal components are mobile to compensate for changes in differential pressure.
By regulating variations in system pressure within the valve, automatic balancing valves function as pressure differential regulators under most load conditions. This makes them more user-friendly.
動態平衡閥的優點
Advantages of Automatic Balancing Valves
? 用戶友好：
User-friendly:
動態平衡閥可自行調節，無需平衡能力或成本。
Automatic balancing valves self-adjust, eliminating the need for balancing capability or costs.
? 高效：
Efficient:
通過防止部分負荷下的過度抽水，自動平衡閥可降低抽水成本。它可確保水流不間斷，從而提高鍋爐效率。
By preventing overpumping at part load, automatic balancing valves decrease pumping costs. It ensures uninterrupted water flow, which improves boiler efficiency.
? 持久安靜：
Long-lasting and quiet:
最大限度地減少水噪聲和侵蝕有助于延長系統的使用壽命。
Minimizing water noise and erosion contributes to the system’s longevity.
? 省時：
Time-efficient:
由于閥門自動平衡，因此無需人工幫助。在系統內重新配置終端單元時，需要重新平衡系統。
Since the valves balance automatically, there is no need for manual help. System rebalance is required when terminal units are reconfigured within the system.

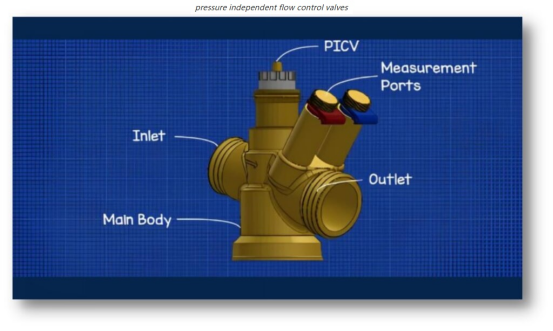

壓力獨立型流量控制閥
PRESSURE-INDEPENDENT FLOW CONTROL VALVES
帶有壓力無關流量控制閥的一體式設備可執行平衡閥、控制閥和壓差調節器的工作。它們具有適應系統壓力變化的壓差調節器。這可保持加熱或冷卻部分的流量穩定，以滿足不同的溫度需求。壓力無關控制閥可與電機配對，使用戶可以從遠處控制流量。
All-in-one devices with pressure-independent flow control valves perform the work of balance valves, control valves, and differential pressure regulators. They have differential pressure regulators that adapt to changes in system pressure. This keeps the flow steady in the heating or cooling parts to meet different temperature needs. Pressure-independent control valves can be paired with motors that allow you to control the flow from a distance.
靜態平衡閥與動態平衡閥的應用
APPLICATIONS OF STATIC BALANCING VALVES VS. AUTOMATIC BALANCING VALVES
動態和靜態平衡閥在許多用途上都有優勢。取決于給定系統的具體需求。
Automatic and static balancing valves are advantages in many uses. Contingent upon the specific demands of the given system.
? 靜態平衡閥在家用熱水循環管線中的應用：
Applications for Static Balancing Valves For Domestic Hot Water Recirculation Lines:
靜態平衡閥可以有效調節管道系統中的水流量。
Static balancing valves can effectively regulate water flow through a plumbing system.
? 發電系統：
Power Generation Systems:
靜態平衡閥與變速流量兼容。它控制發電系統中的系統。
Static balancing valves are compatible with variable speed flow. It controls systems in power generation systems.
? HVAC 系統：
HVAC Systems:
靜態閥在流量經常較低的設施中表現良好。
Static valves perform well in facilities with frequent low flow rates.
? 動態平衡閥風機盤管機組的應用：
Applications for Automatic Balancing Valves Fan Coil Units:
動態平衡閥是更有效的調節風機盤管機組。
Automatic balancing valves are more effective regulated fan coil units.
HVAC 系統：
HVAC System:
動態平衡閥在 HVAC 系統中特別有效。它要求整個設施內有均勻的空氣通道。
Automatic balancing valves are particularly effective in HVAC systems. It requires a uniform air passage throughout the facility.
平衡閥的應用
APPLICATIONS OF BALANCING VALVES
平衡閥通常用于水力平衡。該過程可優化水力加熱系統中的水分配。它是一種平衡流體壓力的冷卻系統。最終，平衡閥通過在這些系統中實現平衡來確保以下幾點：
? 降低運營成本
? 達到并保持正確的溫度水平
? 優化能源使用
Balancing valves are typically used for hydronic balancing. This process optimizes water distribution within a hydronic heating. It is a cooling system that balances fluid pressure. Ultimately, balancing valves assure the following by attaining equilibrium within these systems:
? Operating costs are lowered
? Correct temperature levels are reached and maintained
? Optimization of energy used

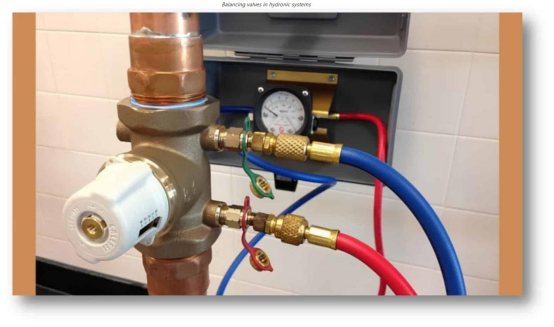

平衡閥在水力系統中的使用：
USE OF BALANCING VALVES IN HYDRONIC SYSTEMS:
平衡閥的安裝和操作是水暖系統的基礎。水暖系統使用水作為加熱和冷卻的介質?？紤]將補償閥應用于水暖系統。
The installation and operation of balancing valves are fundamental to hydronic systems. Hydronic systems use water as the medium for both heating and chilling. Consider the application of compensating valves to hydronic systems.
? 地板采暖：
In-floor Heating:
在地板采暖中，平衡閥起著至關重要的作用。它們調節熱水通過地板管道的通道。平衡閥有助于整個地板均勻分布熱量。整個房間都被加熱。
In subfloor heating, balancing valves play a critical role. They regulate the passage of hot water through subfloor pipelines. Balancing valves help in the uniform distribution of heat throughout the floor. The entire chamber is heated.
? 散熱器：
Radiators:
在水暖系統中，平衡閥被視為標準設備。它們調節熱水向散熱器的排放。它們確保為每個散熱器提供足夠的熱水。它促進了系統的加熱過程。平衡閥確保熱量分布在整個結構中。它確保某些區域保持涼爽的溫度，而其他區域則不會過熱。
In hydronic systems, balancing valves are considered standard equipment. They regulate the discharge of hot water to radiators. They ensure the provision of adequate hot water to each radiator. It facilitates the system’s heating process. Balancing valves ensures that heat is distributed throughout the structure. It ensures certain areas maintain a cool temperature while others are prevented from overheating.
? 空氣處理機組：
Air Handling Units:
這些機組需要在較大的建筑物中輸送經過調節的空氣。這些機組配有平衡閥，可維持熱水或冷水的流動。它們會影響溫度和蒸汽。平衡閥有助于保持平衡的環境。
These units are required to convey conditioned air in larger structures. These units are equipped with balancing valves that maintain the flow of hot or cold water. They have an impact on the temperature and vapor. Balancing valves contribute to the preservation of a balanced environment.
? 風機盤管機組：
Fan Coil Units:
風機盤管機組是水暖系統的冷卻和加熱設備。平衡閥調節這些機組的平衡供水。平衡閥的作用是確保每個機組都有理想的溫度。它可以優化設計中的各個區域或空間。
Fan coil units are cooling & heating devices for hydronic systems. Balanced water supply is regulated by balancing valves to these units. Balancing valves function to ensure that each unit has the ideal temperature. It optimizes various zones or spaces within a design.
? 熱交換器：
Heat Exchangers:
通過使用熱交換器，一種液體被轉換成另一種液體。平衡閥通過調節流向熱交換器的流體來發揮作用。它促進有效的熱傳遞。平衡閥確保熱能的適當循環。它優化了系統的性能。
Through the use of heat exchangers, one liquid is converted to another. Balancing valves function by regulating the flow of fluids to the heat exchangers. It facilitates effective thermal transfer. Balancing valves ensures the proper circulation of thermal energy. It optimizes the performance of the system.
? 冷梁
Chilled Beams
墻壁或天花板配備有用于冷卻水暖系統的冷梁。平衡閥控制冷水流向這些梁的通道。它提供精確且有效的冷卻。使用平衡閥可防止冷卻不足或過度。它確保整個區域的溫度保持最佳狀態。
Walls or ceilings are outfitted with chilled beams used to cool hydronic systems. Balance valves control the passage of chilled water to these beams. It provides precise cooling that is effective. The use of balancing valves prevents inadequate or excessive cooling. It ensures that the temperature remains optimal for the entire area.
? 平衡閥的尺寸
Sizes of Balancing Valves
市場上的平衡閥尺寸多種多樣。從家用到工業應用，應有盡有。通常，1/2 英寸到 12 英寸是標準尺寸。對于特定的工業應用，可提供更大的尺寸。通常，管道直徑?jīng)Q定了系統內的閥門尺寸。
在確定合適的平衡閥尺寸時，必須考慮系統的管道配置和所需的流量。選擇大或小的閥門會影響系統的平衡和效率。
There are many dimensions of balancing valves on the market. It ranges from those designed for domestic use to those intended for industrial applications. At the same time, 1/2-inch to 12-inch is the typical range. Larger dimensions are available for particular industrial applications. Typically, the pipe diameter dictates the valve size within the system.
When determining the suit balancing valve size, it is vital to consider the system’s pipe configuration and the required flow rate. Choosing a valve that is large or small can have an impact on the system’s balance and efficacy.
結論
CONCLUSION
對于商業建筑或工業公司，請使用有效的 HVAC 系統。它們必須有平衡閥。平衡閥會帶來一些成本和問題，但它們的優點多于缺點。安裝它們可以減少能源消耗。此外，它還可以延長 HVAC 部件的使用壽命。它允許人們控制溫度并降低系統噪音。但請記住，平衡閥需要定期維護。它僅限于在您的控制下完成。當檢查和維護此閥門時，平衡閥可使任何 HVAC 系統保持可靠。
For commercial buildings or industrial companies, use an effective HVAC system. They must have balancing valves. Some costs and issues come with balance valves, but their pros are more than cons. Installing them reduces energy use. Moreover, it makes HVAC parts last longer. It allows people to control their temperatures and lower system noise. But remember that balance valves need to be maintained regularly. It is limited to complete under your control. When this valve is checked and kept, balancing valves keep any HVAC system reliable.
