無線振動傳感器：綜合指南（中英文）

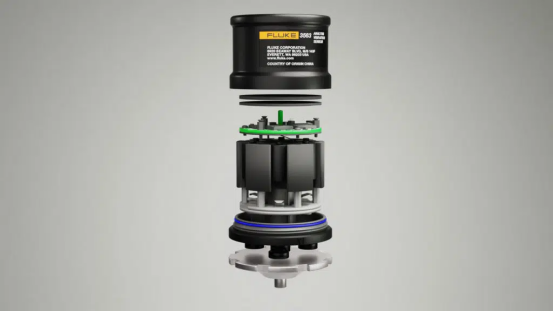

什么是無線振動傳感器？
What is a Wireless Vibration Sensor?
無線振動傳感器測量和分析機械和工業設備振動。這些傳感器在預測性維護中發揮著至關重要的作用，確保各行各業的機械持續高效運行。
A wireless vibration sensor measures and analyzes machinery and industrial equipment vibrations. These sensors play a crucial role in predictive maintenance, ensuring machinery’s continuous and efficient operation in various industries.
無線振動傳感器的主要特點
Key Features of a Wireless Vibration Sensor
? 優質的加速度計技術：無線振動傳感器利用優質的加速度計技術來精確檢測和捕獲振動數據。
? 無線連接：它們配備無線通信功能，可將數據無縫傳輸?shù)街醒氡O(jiān)控系統。
? 實時監控：這些傳感器可實時洞察設備振動情況，從而可以立即分析機器的健康和性能。
? 主動維護：通過持續監控振動模式，無線傳感器支持主動維護方法，從而可以盡早發現潛在問題，防止代價高昂的停機。
? 遠程可訪問性：用戶可以遠程訪問振動數據，通過互聯網連接從任何地方進行監控和分析。
? 應用范圍廣泛：無線振動傳感器可應用于制造業、能源、汽車等各個行業，有助于提高運營效率并降低維護成本。
? Advanced Accelerometer Technology: Wireless vibration sensors utilize state-of-the-art accelerometer technology to detect and capture vibration data precisely.
? Wireless Connectivity: They are equipped with wireless communication capabilities, enabling seamless data transmission to a central monitoring system.
? Real-time Monitoring: These sensors provide real-time insights into equipment vibrations, allowing for immediate analysis of machine health and performance.
? Proactive Maintenance: Through ongoing monitoring of vibration patterns, wireless sensors empower proactive maintenance approaches, enabling the early detection of potential problems to prevent costly downtimes.
? Remote Accessibility: Users can remotely access vibration data, facilitating monitoring and analysis from anywhere with an internet connection.
? Wide Range of Applications: Wireless vibration sensors find applications in diverse industries, including manufacturing, energy, automotive, and more, contributing to enhanced operational efficiency and reduced maintenance costs.
無線振動傳感器基礎知識
Wireless Vibration Sensor Basics
無線振動傳感器測量振動變化并及早檢測旋轉機器故障以避免故障。許多維護主管將振動傳感器用作其整體狀態監測程序的一部分。這是因為大約 90% 的機器故障屬于以下四個主要類別之一：
? 錯位
? 不平衡
? 松動
? 軸承損壞
合適的無線振動傳感器可以捕捉到這些常見的機器故障。
無線振動傳感器使用 WiFi、LTE 或以太網等網絡連接將測量值連續傳輸?shù)杰浖?。例如，無線傳感器可以將數據發送到計算機化維護管理系統 (CMMS) 軟件，在那里可以存儲和分析數據。
A wireless vibration sensor measures vibration changes and detects rotating machine failures early to avoid breakdowns. Many maintenance leaders use vibration sensors as part of their overall condition monitoring program. That’s because some 90 percent of machine faults fall into one of four main categories:
? Misalignment
? Imbalance
? Looseness
? Bearing damage
The right kind of wireless vibration sensors can catch those common machine faults.
A wireless vibration sensor uses a network connection like WiFi, LTE, or ethernet, to continuously transmit measurements to software. For instance, a wireless sensor may send data to computerized maintenance management system (CMMS) software where the data can be stored and analyzed.
無線振動傳感器的優勢：
Benefits of a Wireless Vibration Sensor:
? 與有線傳感器相比，無線振動傳感器更具成本效益且易于安裝
? 幾乎可以從任何地方訪問遠程狀態監測數據
? 根據傳感器和軟件啟用篩選或數據分析
? 收集和監測數據以盡早發現故障，避免資產故障
? Wireless vibration sensors are more cost-effective and easy to install compared to wired sensors
? The remote condition monitoring data is accessible from almost anywhere
? Enables screening or data analysis depending on the sensor and software
? Collects and monitors data to catch faults early to avoid asset failure
振動傳感器的工作原理
How a Vibration Sensor Works
無線振動監測傳感器從安裝它的機器生成振動信號，對其進行轉換和處理，然后將實時數據發送到 Web 應用程序。該資產管理軟件可讓維護團隊查看和分析數據趨勢，以及執行數據分析。
通過無線振動監測，傳感器可以跟蹤和記錄振動水平測量值，用于確定旋轉機械（如壓縮機和泵（驅動電機、從動裝置）以及皮帶、齒輪、軸、軸承和構成機械系統的其他部件）的健康狀況。
如果無線振動傳感器檢測到振動變化超過預定閾值，則會自動觸發警報并發送給維護團隊成員。根據資產關鍵性（即對整體生產和運營的影響），決定立即安排維修或更換機械。
通知可以優化維護計劃和人工，確保零件可用性，并最終避免資產故障。
A wireless vibration monitoring sensor generates a vibration signal from the machine where it’s mounted, converts and processes it, and then sends the real-time data to a web application. That asset management software lets maintenance teams view and trend data, as well as perform data analysis.

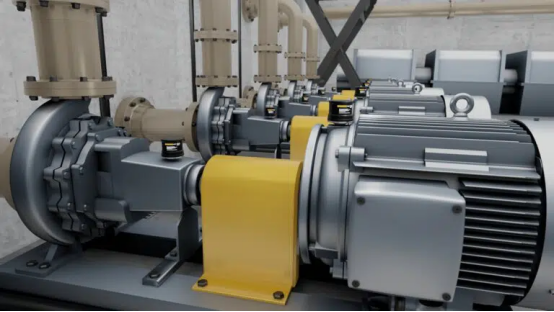

With wireless vibration monitoring, the sensor tracks and records vibration level measurements used to determine the health of rotating machinery such as compressors and pumps (drive motors, driven devices) and belts, gears, shafts, bearings, and other components that make up a mechanical system.
If a wireless vibration sensor detects a change in vibration that exceeds predetermined threshold levels, an alert is triggered automatically and sent to a maintenance team member. Based on the asset criticality, meaning the impact on overall production and operations, a determination is made to immediately schedule a repair or replace the machinery.
The notification enables optimization of maintenance schedules and labor, ensures parts availability, and ultimately avoids asset failure.
測量振動的不同方法
Different Ways to Measure Vibration
振動可以用三種不同的方式測量：位移、速度和加速度。
? 位移是物體從參考點移動的距離。它最適合測量低頻。
? 速度是位移隨時間的變化率，涵蓋廣泛的頻率范圍。它最適合診斷導致磨損和故障的疲勞力。
? 加速度是速度隨時間的變化率。它最適合測量非常高的頻率。
加速度計是最常見的振動傳感器之一，因為它們堅固耐用，并且很容易將加速度轉換為速度。
Vibration can be measured in three different ways: displacement, velocity, and acceleration.
? Displacement is the distance an object moves from a reference point. It’s best for measuring low frequencies.
? Velocity is the changing rate of displacement over time and covers a wide range of frequencies. It is best at diagnosing fatigue forces that cause wear and failure.
? Acceleration is the changing rate of velocity over time. It’s best for measuring very high frequencies.
Accelerometers are one of the most common vibration sensors because they’re rugged, and it’s easy to convert the acceleration to velocity.
振動傳感器為何如此重要
Why Vibration Sensors Are Important
使用有線和無線傳感器測量振動變化已成為工業維護和可靠性計劃中必不可少的環節。
當機器意外停機時，成本可能很高。例如，軸不平衡可能導致聯軸器損壞，并導致需要更換整個電機。
Using wired and wireless sensors to measure vibration changes has become essential in industrial maintenance and reliability programs.
When a machine goes down unexpectedly, the costs can be high. For instance, a shaft imbalance can cause coupling damage and lead to an entire motor needing to be replaced.
測量振動以盡早發現機器故障：
Measuring Vibration to Catch Machine Faults Early:
? 降低能源成本
? 減少停機時間和人工成本
? 降低維護和更換成本
? 提高安全性
? Lowers energy costs
? Reduces downtime and labor costs
? Decreases maintenance and replacement costs
? Increases safety
設置無線振動傳感器
Setting up a Wireless Vibration Sensor
確定適當?shù)恼駝觽鞲衅髟O(shè)置、環境條件和傳感器位置對于傳感器的正常運行至關重要。根據安裝類型、機器類型和軟件，一些振動傳感器易于設置，配置、調試和安裝后即可立即使用。相比之下，其他振動傳感器則更為復雜，因此咨詢專家通常會有所幫助。
Determining the proper vibration sensor setup, environmental conditions, and sensor location are critical to a properly functioning sensor. Depending on the type of mount, machine type, and software, some vibration sensors are easy to set up and can be used immediately once configured, commissioned, and installed. In contrast, others are more complex, so it’s often helpful to consult an expert.
選擇合適的無線振動傳感器
Choosing the Right Wireless Vibration Sensor
振動傳感器有很多種類型。無線振動監測的選擇通常取決于組織的整體運營能力。機器或部件對生產的重要性以及應用將有助于確定需要哪種無線振動傳感器。
例如，篩選傳感器通常安裝在半關鍵和其他重要機器上。它提供讀數以指示存在問題，并讓用戶知道機器是否需要檢查或維護。
分析振動傳感器通常用于更關鍵的資產。這些傳感器具有加速度計，可幫助測量數據中看到的幅度和模式的變化。需要高分辨率傳感器來提供分析所需數據的詳細信息。
There are a number of different types of vibration sensors. Wireless vibration monitoring choices usually depend on an organization’s overall operational capacity. How critical a machine or component is to production and the application will help determine which wireless vibration sensor is needed.
For instance, a screening sensor is usually mounted on semi-critical and other essential machinery. It provides readings to indicate a problem exists and lets users know if the machine needs to be inspected or maintained.
An analysis vibration sensor is generally used on more critical assets. These sensors have accelerometers that help measure changes in amplitude and patterns seen in the data. A high-resolution sensor is needed to provide the detail of the necessary data for analysis.
傳感器的設計、尺寸和范圍多種多樣，因此非常靈活。了解期望測量的數據特征以及任何環境限制有助于確定哪種傳感器最適合預期用途。
There are many designs, sizes, and ranges of sensors to choose from, making them highly flexible. Understanding the data characteristics you expect to measure, and any environmental constraints can help decide which one fits the intended use best.
