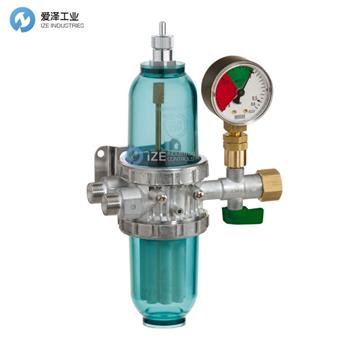

GOK熱油過濾裝置1351301產品參數
Connection A | G 3/8 F |
Connection B | G 3/8 M |
Filter element | sintered plastic 70 μm |
Type name | type GS Pro-Fi 3 |
Filter cup | Plastic |
Part no. | 1351301 |
GOK熱油過濾裝置GS Pro-Fi3系列產品介紹
For installation in single-line systems with return feed above or below the tank apex
Operating media:
Diesel fuel, FAME, heating oil and bio heating oil maximum 30% (V / V) FAME
Advantages and features
Guaranteed odor-tight, without additional accessories
no leakage of oil or oil foam
Safety function in the event of hose rupture
Integrated ball valve as required shut-off device in front of the consumer device
Connection hose for oil suction pump
corresponds to a retention device for conveyor units and consumer devices according to DWA-A 791
Technical specifications
Maximum allowable pressure: PS 6 bar
Nominal flow rate according to E DIN EN 12514-3: 2009 110 l / h, with the following pressure losses when using:
Siku filter insert 35 μm = 210 mbar
Siku filter insert 70 μm = 110 mbar
Flow rate flow-return at a pressure difference of 1.3 bar = 160 l / h
Ventilation capacity according to E DIN EN 12514-3: 2009 10 l / h air
Material: Housing: Die-cast zinc ZP0410 Filter cup: Plastic or metal
Version with internal thread G 3/8 for cylindrical screw-in connections type GERB according to EN ISO 1179-4 Form B, suitable for sealing with the provided O-rings FKM or for connecting a universal connection set type UA
用于安裝在單線系統中，回油口在儲罐頂部上方或下方
工作介質：
柴油，F(xiàn)AME，取暖油和生物取暖油最大30％（V / V）FAME
優勢與特色
保證氣味密封，無需其他附件
不會漏油或漏油
軟管破裂時的安全功能
集成式球形閥，作為消費設備前所需的關閉設備
吸油泵的連接軟管
對應于根據DWA-A 791的用于輸送單元和消費類設備的固定裝置
技術指標
最大允許壓力：PS 6 bar
根據E DIN EN 12514-3：2009的額定流量110 l / h，使用時具有以下壓力損失：
Siku濾芯插件35 μm = 210 mbar
Siku濾芯70 μm = 110 mbar
壓力差為1.3 bar時的流量回流= 160 l / h
通風量符合E DIN EN 12514-3：2009 10 l / h空氣
材料：外殼：壓鑄鋅ZP0410濾杯：塑料或金屬
內螺紋G 3/8的版本，用于根據EN ISO 1179-4 B型的GERB圓柱型旋入式連接，適用于通過提供的O型圈FKM密封或用于連接通用連接套件UA
GOK熱油過濾裝置其他常見型號：
GOK 1351300
GOK 1351340
GOK 1351305
GOK 1351301
GOK 1351341
GOK 1351700
GOK 1351740
GOK 1351705
GOK 1351706
GOK 1360200
GOK 1361089
