NANO干燥機Nano D1系列技術參數
Specifications | Standard | Optional |
Maximum Particle Size (ISO class) (4) | class 2 (1 micron) | class 1 (0.01 micron) |
Maximum Water Content (ISO class) (4) | class 2 (-40oF pdp) | class 1 (-94°F) |
Minimum Operating Pressure | 58 psig | - |
Maximum Operating Pressure | 100, 101, 145 or 232 psig (5) | consult mdi |
Recommended Operating Temp Range | 34 to 100°F | - |
Design Operating Temperature Range | 34 to 122°F | - |
Power Supply Requirements | 100 to 240 VAC / 50 or 60 Hz | - |
NANO干燥機Nano D1 系列產品介紹
Nano D1 系列
模塊化干燥劑空氣干燥機
流量范圍：3 – 24 標準立方英尺/分鐘
設計用途：適用于壓縮機房、應用點或集成到您的設備中，Nano D1 模塊化干燥劑空氣干燥機是解決被污染壓縮空氣問題的高效方案。
Nano D1 NDL 干燥劑空氣干燥機可靠為您提供：
? 物超所值——所有安裝所需配件均包含在包裝內
? 保護生產過程中的水分和顆粒物
? 低生命周期成本——低能耗和簡化維護
? 內建露點監測（可選）
? 節省空間——最大24 scfm型號可輕松墻面安裝
? 安全、安靜運行
? 在100 psig工作壓力下，流量為3 - 24 scfm
? 高可信賴性——目前市場上最可靠的產品之一
? 組合過濾器和干燥劑筒，維護時間少于15分鐘
Nano 干燥機在出廠前經過100%的功能和性能測試，確保達到最高性能標準，符合ISO8573:1—2010標準，等級：塵埃為第2級（1微米），水分為第2級（壓力露點-40°F）。
能量節約型露點監測選項可在降低入口濕度負荷時節省高達60%的能耗。

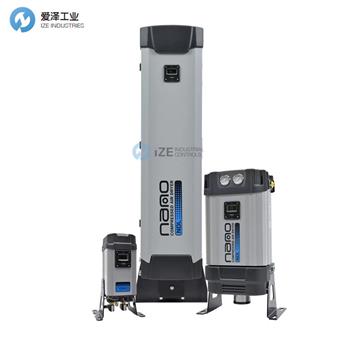

Nano D1 Series
Modular Desiccant Air Dryers
3 – 24 scfm
Designed for use in the compressor room, at the point of application or integrated into your original equipment, nano D1 modular desiccant air dryers are an effective solution to the problems caused by contaminated compressed air.
Nano D1 NDL desiccant air dryers reliably give you:
? more for your money - everything needed for installation is in the box
? moisture & particulate protection of your production process
? lower life cycle costs - low energy costs and simplified maintenance
? built in dew point monitoring (optional)
? space saving - models up to 24 scfm can be easily wall mounted
? safe and quiet operation
? flows 3 - 24 scfm at 100 psig operating pressure
? peace of mind - the most reliable product of its kind
? combined filter and desiccant cartridges can be serviced in less than 15 minutes
Nano dryers have been 100% function and performance tested at the factory to ensure the highest standard of performance, delivering compressed air purity in accordance with ISO8573:1 – 2010, Class 2 dirt (1 micron) and Class 2 water (-40°F pressure dew point).
Energy saving dew point monitoring option can save up to 60% during reduced inlet moisture loading.
NANO干燥機Nano D1 系列其他常用型號：
NANO 40-100-0047
NANO NDL 010
NANO NDL 020
NANO NDL 030
NANO NDL 040
NANO NDL 050
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NANO干燥機40-100-0047的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NANO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NANO干燥機Nano D1系列40-100-0047技術參數及介紹
