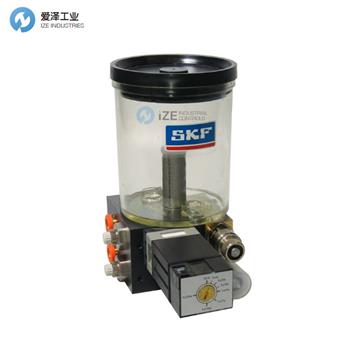

SKF計量單元VE1B-PA2-00技術參數
參考編號：VE1B
控制類型：P = 氣動頻率發生器
泵類型：A = 通過環進行調節，低速率（每沖程 3 至 30 mm3），不銹鋼和黃銅
微型泵數量：2
儲油箱：00 = 無
Reference:VE1B
Control type:P = pneumatic frequency generator
Pumps:A = adjustment by rings, low rate (3 to 30 mm3/stroke), stainless steel and brass
Number of micropumps:2
Reservoir:00 = without
SKF計量單元VE1B系列介紹
描述
VE1B 單元是一種緊湊型裝置，由一個可容納一到四個微型泵的通用底座構成。每個微型泵用于潤滑一個潤滑點。VE1B 單元被分配到單個潤滑回路中，所有微型泵的啟動和節拍頻率控制都是統一的。然而，操作員可以獨立調節每個微型泵的流量。其體積小并且可以配備集成儲油箱，使得 VE1B 單元能夠盡可能靠近潤滑點安裝。
VE1B 單元的用途包括：
用一個設備潤滑1到4個潤滑點
檢查所有潤滑點的潤滑頻率
獨立調整每個潤滑點的載氣流量
單獨調節對應于每個潤滑點的微型泵的流量
Description
The VE1B unit is a compact unit. It is made up of a common base for one to four micropumps. Each micropump allows lubrication of a lubrication point.
The VE1B unit is assigned to a single lubrication circuit. Start-up and control of the beat frequency is common to all micropumps. However, the operator can independently adjust the flow rate of each micropump.
The size and the possibility of having an integrated reservoir allow the VE1B unit to be placed as close as possible to the lubrication points.
The VE1B unit is used to:
? Lubricate 1 to 4 lubrication points with a single unit
? Check the lubrication frequency for all lubrication points
? Independently adjust the carrier air flow for each lubrication point
? Individually adjust the flow rate of a micropump corresponding to a lubrication point
SKF計量單元其他常用型號：
SKF VE1B-PA2-00
SKF VE1B-EA1-00+924-V
SKF Measuring unit NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SKF計量單元VE1B-PA2-00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SKF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
