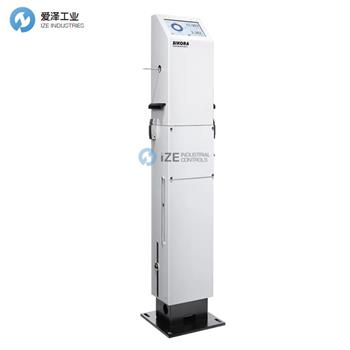

SIKORA檢測儀CENTERVIEW 8010規格
Specifications | |
Measuring principle | Non-contact, optical/inductive sensors with 4-axes-CCD-line technology combined with impulse-driven laser light sources |
Applications | For all round, single conductor wires and cables with solid or stranded conductors such as telephone cables, data cables (CAT 5, 6 and 7), coax cables, automotive or installation cables |
Exposure Time | 0.25 μs |
Measuring Rate | 500 measurements/sec (other on demand) |
Measuring Range | 0.25 - 10 mm* |
Sight Field | 12.5 mm |
Resolution | Selectable 1 μm, 10 μm (factory setting is 1 μm) |
Accuracy | Eccentricity: better 1 μm** |
Repeatability | Eccentricity: ± 1.0 μm |
Interfaces | RS485 + RS232 diagnosis interfaces |
Power Supply | 115 or 230 V AC ± 10%, 50/60 Hz, 500 VA |
Ambient Temperature | + 5 to + 50°C |
Dimensions (W x D x H) | 200 x 150 x 1,106 mm |
* Optionally, the CENTERVIEW 8010 is also available for micro-coax cables with product diameters from 0.1 to 10 mm | |
** Stranded: 2 μm |
SIKORA檢測儀產品介紹:
Non-contact specialist
The CENTERVIEW 8000 is a non-contact gauge head, specifically designed for production lines of all round, single conductor wires, and cables with single or multi-wire conductors and solid or foamed insulations.
The system measures online the eccentricity, wall thickness, diameter and the ovality of cables with high single value precision. The measuring values are taken from 4 axes (diameter) respectively at 8 points (eccentricity, ovality) and are visualized on the integrated display or at the processor systems of the ECOCONTROL Series. The operator receives immediately clear information about eccentricity values that can be instantly used for control or centering of the cross head. This assures maximum material savings.
Measurement of micro-coax cables
For a number of applications such as mobile phones, LED displays or medical probes micro-sized wires are required. These cables have a conductor diameter of 25 micrometers with an insulation wall thickness of 80 micrometers. For these diameter ranges, cable specifications have to be exactly realized in order to transfer high-frequent signals without loss.
Especially for the measurement of eccentricity, wall thickness, diameter and ovality of micro-coax cables, the CENTERVIEW 8010 is also available for product diameters from 0.1 to 10 mm.
Benefits
Non-contact 8-point eccentricity measurement
4-axes diameter measurement
8-point ovality measurement
Scatter plot shows distribution of short-term variations
Automatic centering of the gauge head
Free of maintenance and calibration
Integrated 7" TFT monitor (CENTERVIEW 8000e)
Measurement of micro-coax cables
非接觸專家
CENTERVIEW 8000 是一種非接觸式測頭,專為圓形、單芯電線和單芯或多芯電纜以及實心或泡沫絕緣的生產線而設計。
系統在線測量電纜的偏心率、壁厚、直徑和橢圓度,單值精度高。 測量值分別取自 4 個軸(直徑)的 8 個點(偏心率、橢圓度),并在集成顯示器或 ECOCONTROL 系列的處理器系統上可視化。 操作員會立即收到有關偏心值的清晰信息,這些信息可立即用于十字頭的控制或定心。 這確保了最大程度的材料節省。
微同軸電纜的測量
對于許多應用,例如手機、LED 顯示器或醫療探頭,需要微型電線。 這些電纜的導體直徑為 25 微米,絕緣壁厚度為 80 微米。 對于這些直徑范圍,必須準確實現電纜規格,以便無損耗地傳輸高頻信號。
特別是對于微同軸電纜的偏心率、壁厚、直徑和橢圓度的測量,CENTERVIEW 8010 還適用于 0.1 至 10 毫米的產品直徑。
好處
非接觸式 8 點偏心測量
4軸直徑測量
8 點橢圓度測量
散點圖顯示短期變化的分布
測頭自動對中
免維護和校準
集成 7" TFT 顯示器 (CENTERVIEW 8000e)
微同軸電纜的測量
