ADOS氣體變送器GTR 196系列技術參數

ADOS氣體變送器GTR 196系列介紹

Application

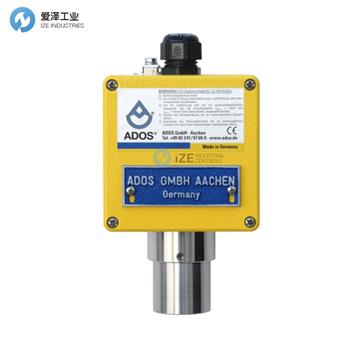

The gas transmitter ADOS GTR 196 is suitable for continuous measurement of gases in normal areas and areas where there is a risk of explosion.

By employing 6 different types of sensor, noxious, explosive and non-combustible gases and vapours can be measured.

A current signal is generated that is proportional to the measured concentration of gas, which is transmitted to an evaluation unit placed in a safe area, away from any dangers of explosion.

The type test of the explosion-protected gas transmitter, is completed by the KEMA.

Test certificate: KEMA 03 ATEX 2403 X

Degree of protection: II 2 G, Ex demb [ia] IIC T6

Fields of Application

Chemical industry

Manufacture of paints and varnishes

Plastics processing plants

Sewage works

Gas-fired boiler systems

Liquid gas storage houses

Laboratories

Oxygen concentration measurements

Refineries

Cold storage houses (Ammonia monitoring)

Paint spraying booths

... and many more.

TOX sensor

The TOX sensor is a measurement system with an electro-chemical cell, where the sampled gas is measured by diffusion. In the case of oxygen measurement the oxygen content is reduced in an electrolyte, thus producing a small flow of current (electro-chemical process). At a constant air pressure, this current is directly proportional to the oxygen concentration in the sampled air.

應用

ADOS GTR 196 氣體變送器適用于正常區域和存在爆炸危險區域的氣體連續測量。

通過使用 6 種不同類型的傳感器，可以測量有毒、易爆和不可燃?xì)怏w和蒸汽。

生成與測量的氣體濃度成正比的電流信號，該信號被傳輸?shù)椒胖迷诎踩珔^(qū)域的評估單元，遠離任何爆炸危險。

防爆氣體變送器的型式試驗，由 KEMA 完成。

測試證書：KEMA 03 ATEX 2403 X

防護等級：II 2 G，Ex demb [ia] IIC T6

應用領域

化學工業

油漆和清漆的制造

塑料加工廠

污水工程

燃?xì)忮仩t系統

液化氣儲藏室

實驗室

氧氣濃度測量

煉油廠

冷藏庫（氨監測）

噴漆房

... 還有很多。

毒物傳感器

TOX 傳感器是一種帶有電化學電池的測量系統，其中通過擴散測量采樣氣體。 在氧氣測量的情況下，電解質中的氧氣含量會降低，從而產生小電流（電化學過程）。 在恒定氣壓下，該電流與采樣空氣中的氧氣濃度成正比。

ADOS氣體變送器其他常用型號：

ADOS GTR 196 H2S 0-500PPM

ADOS GTR 196 H2S 0-500PPM

ADOS oxygen sensor NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于ADOS氣體變送器GTR 196 H2S 0-500PPM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for ADOS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

ADOS氣體變送器GTR 196系列GTR 196 H2S 0-500PPM技術參數介紹
