ADTEK數字顯示儀CM1-PR-A3-N-N-D24技術規格

ADTEK數字顯示儀CM1-PR-A3-N-N-D24介紹

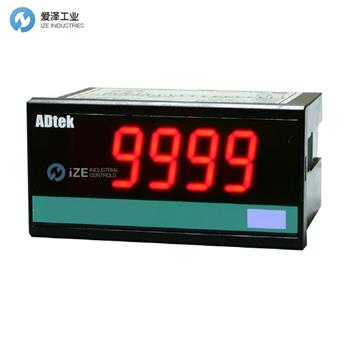

CM1-PR Indicator has been designed in simple function and 4 digital 20.0mm LED displays with economic cost. They are can be programmed by tact switches that are hidden in backside of front bezel.

They are also available option of 2 Relay outputs, 1 Analogue output or 1 RS485(Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission or communication for a wide range of industrial applications.

Features

Measuring 0(1)~5V/0~10V, 0~10mA/0(4)~20mA ( or 2 wire sensor with 24Vdc excitation supply )

Optional DC24V excitation power for 2 wire sensor

The operation buttons are built-in to prevent users from arbitrary operation or incorrect setting, which may cause abnormal operation of the equipment

The display value can be adjusted slightly with the "field measurement signal"

The output can option relays or analog output or RS485 (Modbus RTU mode)

Relay function in addition to start delay, active delay, delay off and active hold

Analog output voltage signal range can be switched (0~10V/0~5V/1 ~5V) or current signal range can be switched (0~10mA/0~20mA/4~20mA)

The analog output signal is free to set the corresponding display range (Span-50%) and can be fine-tuned on-site

On board terminal design, no quality issue; installation depth is only 72mm

CM1-PR 指示器設計為功能簡單，4 個數字 20.0mm LED 顯示屏，具有經濟成本。它們可以通過隱藏在前擋板背面的輕觸開關進行編程。

它們還可以選擇 2 個繼電器輸出、1 個模擬輸出或 1 個 RS485（Modbus RTU 模式）接口，具有多種功能，例如控制、報警、轉發或通信，適用于廣泛的工業應用。

特征

測量 0(1)~5V/0~10V, 0~10mA/0(4)~20mA（或帶 24Vdc 勵磁電源的 2 線傳感器）

2線傳感器可選DC24V勵磁電源

內置操作按鈕，防止用戶隨意操作或錯誤設置，導致設備運行異常

顯示值可以用“現場測量信號”微調

輸出可選擇繼電器或模擬輸出或RS485（Modbus RTU模式）

繼電器功能除了啟動延遲、活動延遲、延遲關閉和活動保持

模擬輸出電壓信號范圍可切換（0~10V/0~5V/1~5V）或電流信號范圍可切換（0~10mA/0~20mA/4~20mA）

模擬量輸出信號可自由設定對應顯示范圍（Span-50%）并可現場微調

板載端子設計，無質量問題；安裝深度僅為72mm

ADTEK數字顯示儀CM1-PR系列其他常用型號：

ADTEK CM1-PR-A3-R2-N-A

ADTEK CM1-PR-A3-N-N-D24

ADTEK Digital instruments NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于ADTEK數字顯示儀CM1-PR-A3-N-N-D24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for ADTEK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

ADTEK數字顯示儀CM1-PR-A3-N-N-D24技術規格介紹
